Installation, Continued), Carrier door open – Rockwell Automation 1397 Regulated Field Supply Card User Manual
Page 10: Carrier door open — — carrier door closed
10
1397 Regulated Field Supply Card
1397 – 5.17 September, 1997

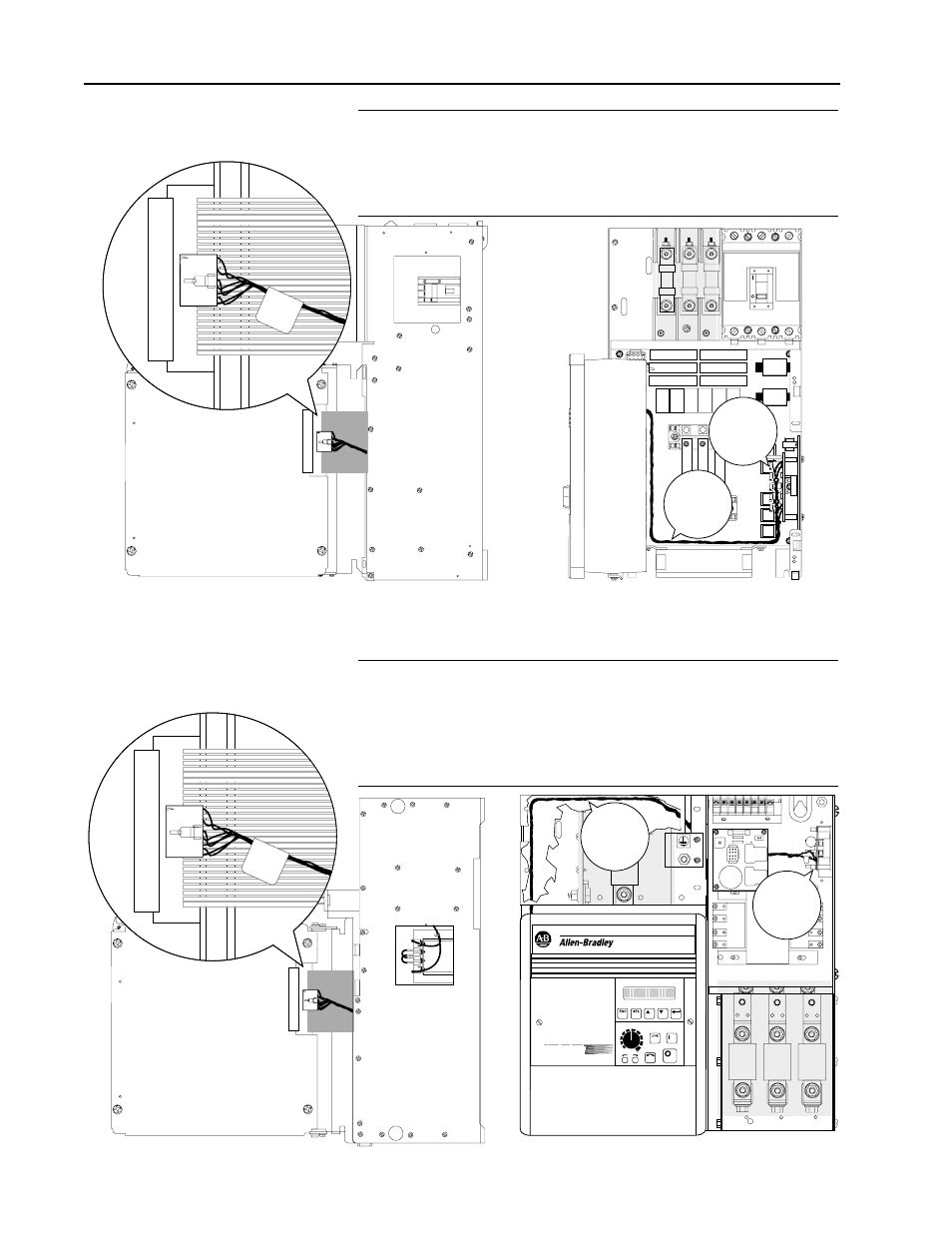

❏ 8a For 1.5-30HP/230V and 3-60HP/460V Drives, route the other
end of the wire harness through the drive carrier along the
bottom of the drive chassis as shown. Secure the wire harness
to the drive chassis using cable ties included with the kit.
Installation
(continued)
REG
P25
81
82
83
Regulated
Field Supply
Card
Regulated
Field Supply
Wire
Harness
— Carrier Door Open —
— Carrier Door Open —
1.5-30HP/230V and 3-60HP/460V Drives
REG
P25
— Carrier Door Open —
— Carrier Door Closed —
P4
P4
P4
40-60HP/230V and 75-125HP/460V Drives
Regulated
Field Supply
Card
Regulated
Field Supply
Wire
Harness
❏ 8b For 40-60HP/230V and 75-125HP/460V Drives, route the
other end of the wire harness through the drive carrier along the
top of the drive chassis as shown. Secure the Regulated Field
Supply wire harness to the existing drive wire harness using
cable ties included with the kit.
