Locking the
Rack Design

You will notice that MCS Star calculates the conductor size requirements. Because we included
the total load of the second rack as a load through the supply module in Rack 1, we can use the
conductor size calculated by the software for Rack 1 to feed the main circuit breaker (3/0 AWG).

For the conductors between the supply modules feeding Rack 2, it shows we can use a smaller
conductor (0 AWG).

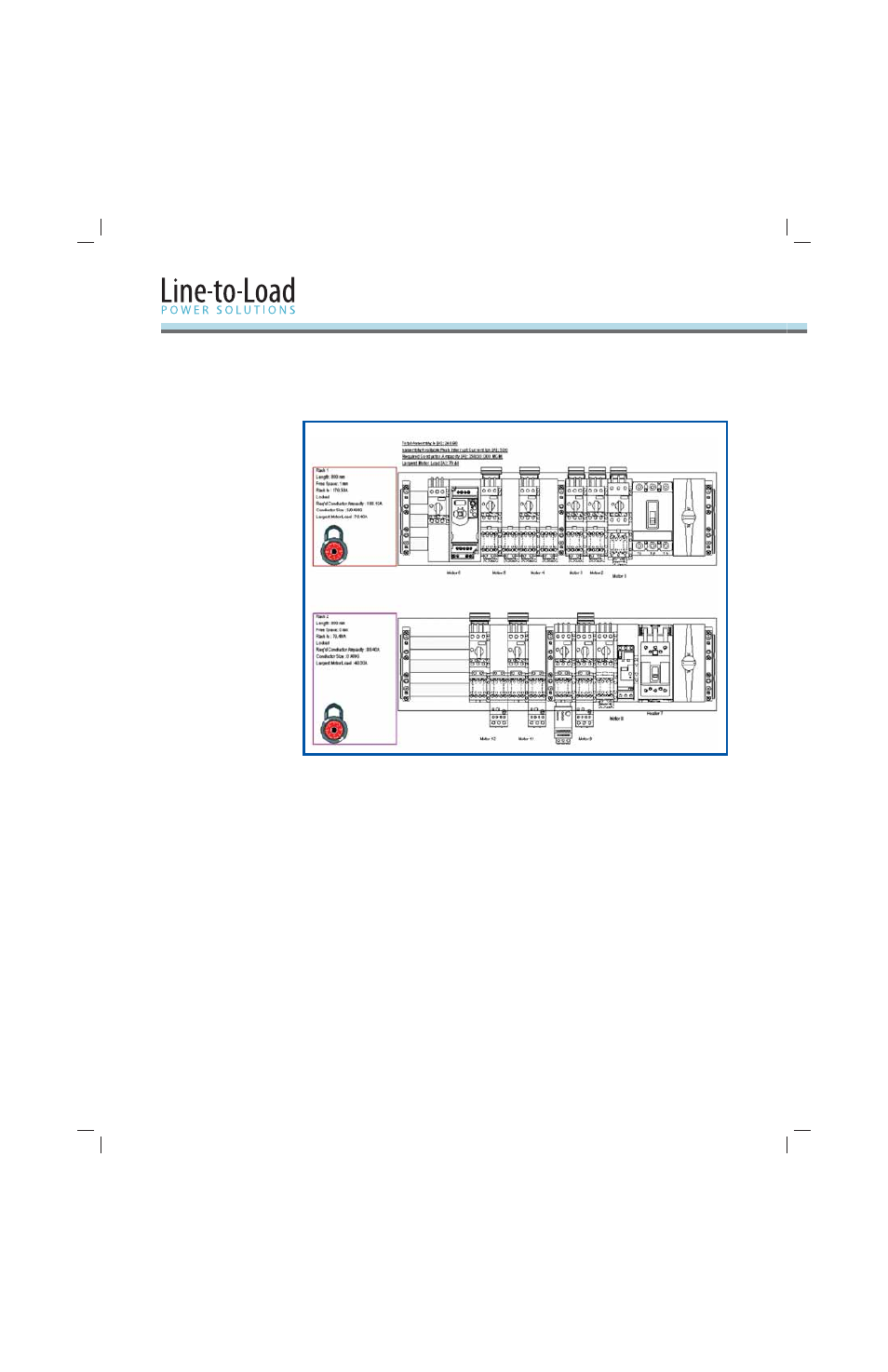

Now that the rack design is complete, we can

lock

the confi gurations by

double clicking on the

unlocked padlock symbol

. If you need to make changes later, you can unlock the rack by

double clicking on the locked padlock symbol

.
