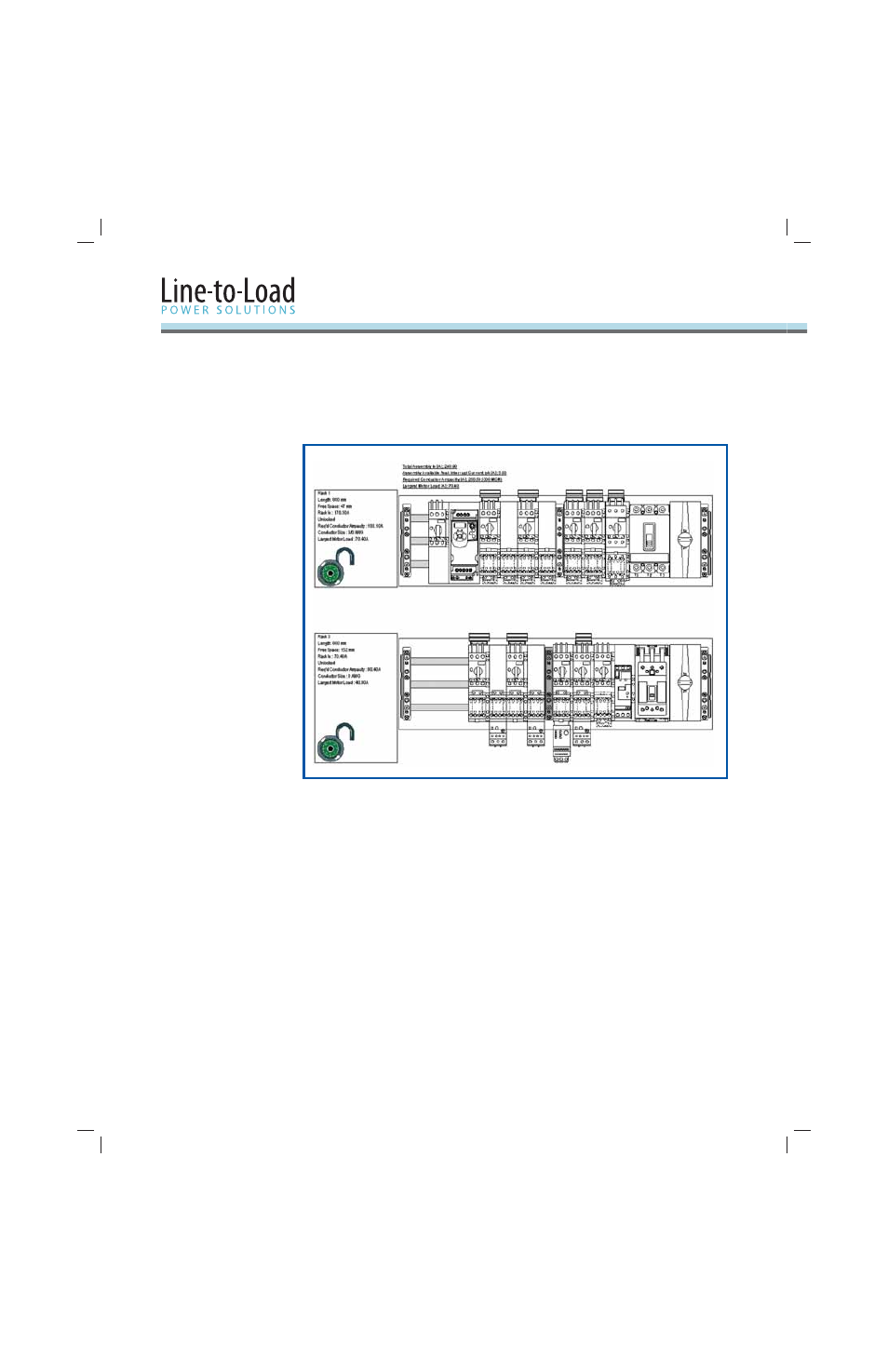

Now let’s tighten up the spacing by moving the middle support to the right of the 107Ts. Th is will
move it more towards the center of the rack. Press and hold the left mouse button on the object
to be moved. Th en, simply drag it to the right side, touching (overlapping) the starter for
Motor 11. Th e program will ask if you want the support to be positioned to the left or right side of
the object it is touching, select “Right” side .
Congratulations! You have just confi gured a double rack 141A Mounting System Solution using
MCS Star Confi guration Software.
Step 15:
Confi guring Three
Component Starters
(continued)
