Bulletin 700 Type RTC Fixed Time Solid-State Timing Relays 5

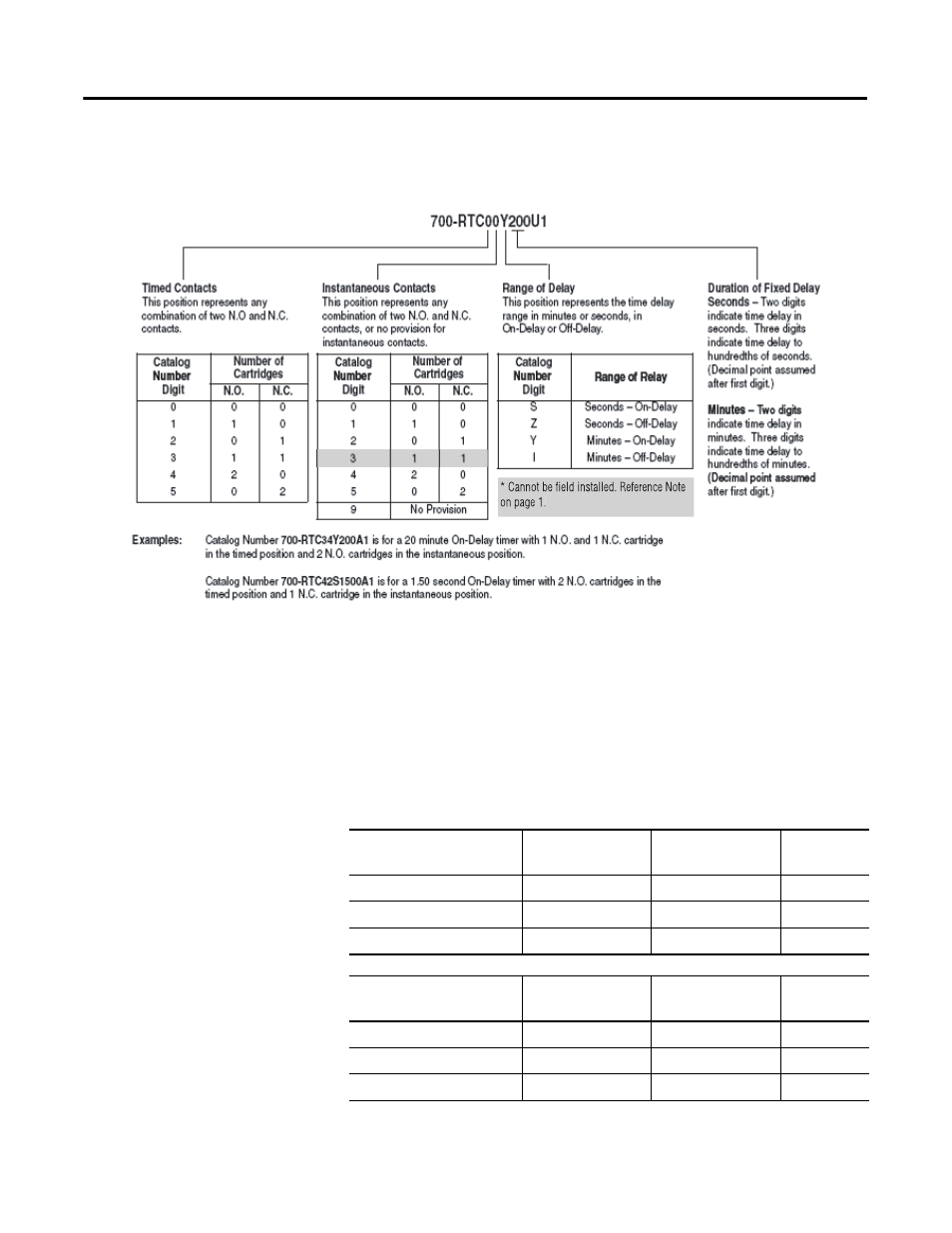

To order timers with contact cartridges, modify the Catalog Number as
follows:
Manual Actuator Timer can be equipped with a manual actuator (Cat. No. 700–N7) which is
used to energize the initiate circuit (Terminal P) manually using a separate
voltage source, 24V and 120V AC/DC only. It can be easily installed in the
field.
Specifications Table 2 Voltage and Power Requirements
*
* Cannot be field installed. Reference Note
on page 1.
AC Voltage 50/60 Hz
+10%, -15% Total Power
Required Initiate Terminal P
Power Coil Code
24V AC 8VA 4VA U24
110-120V AC 9VA 4VA U1
220-240V AC 11VA 5VA U2
DC Voltage
+10%, -20% Total Power
Required Initiate Terminal P
Power Coil Code
24V DC 10 W 5 W U24
120V DC 11 W 5 W U1
240V DC 12 W 5 W U2
