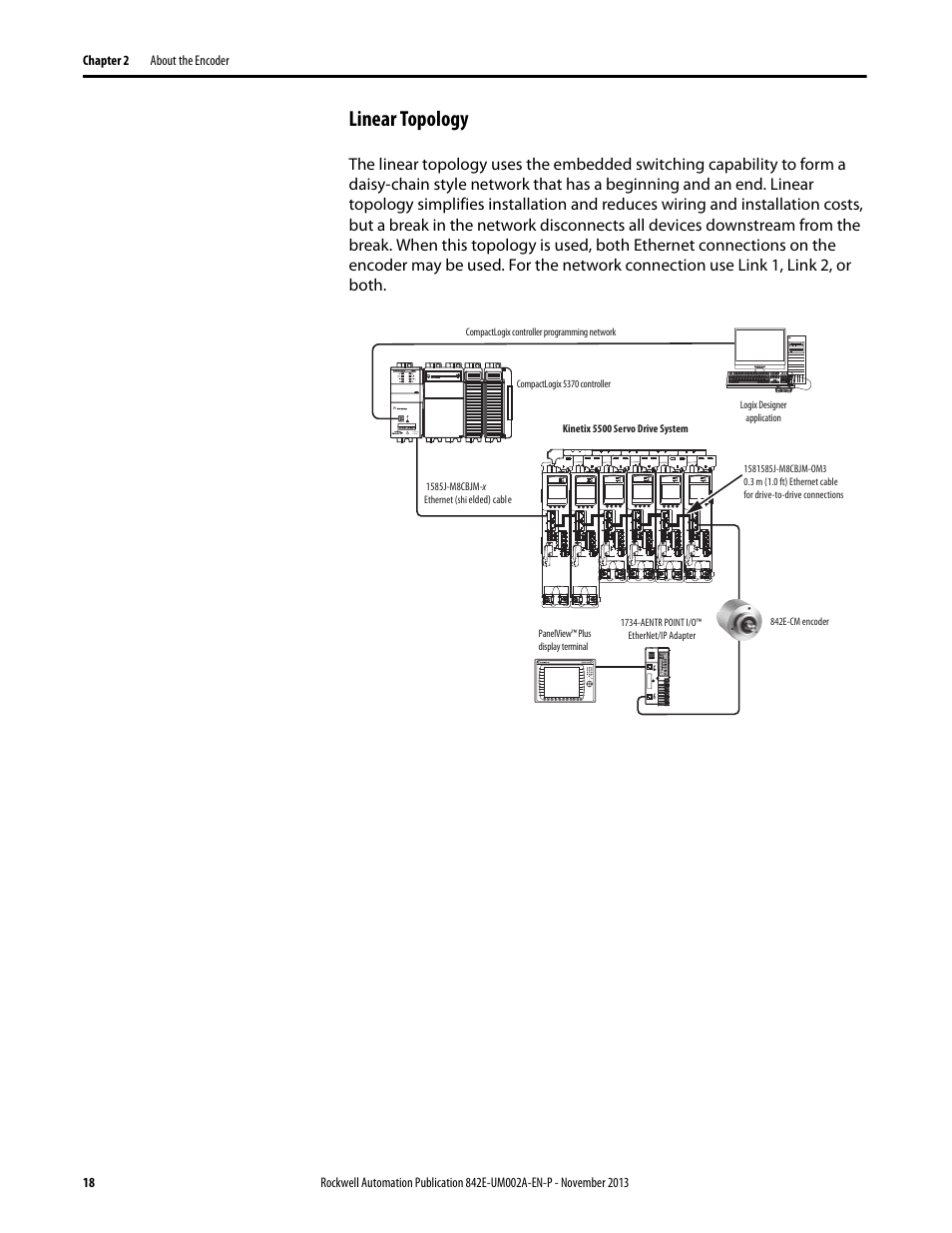

Linear topology – Rockwell Automation 842E CM Integrated Motion Encoder on EtherNet/IP User Manual
Page 18
