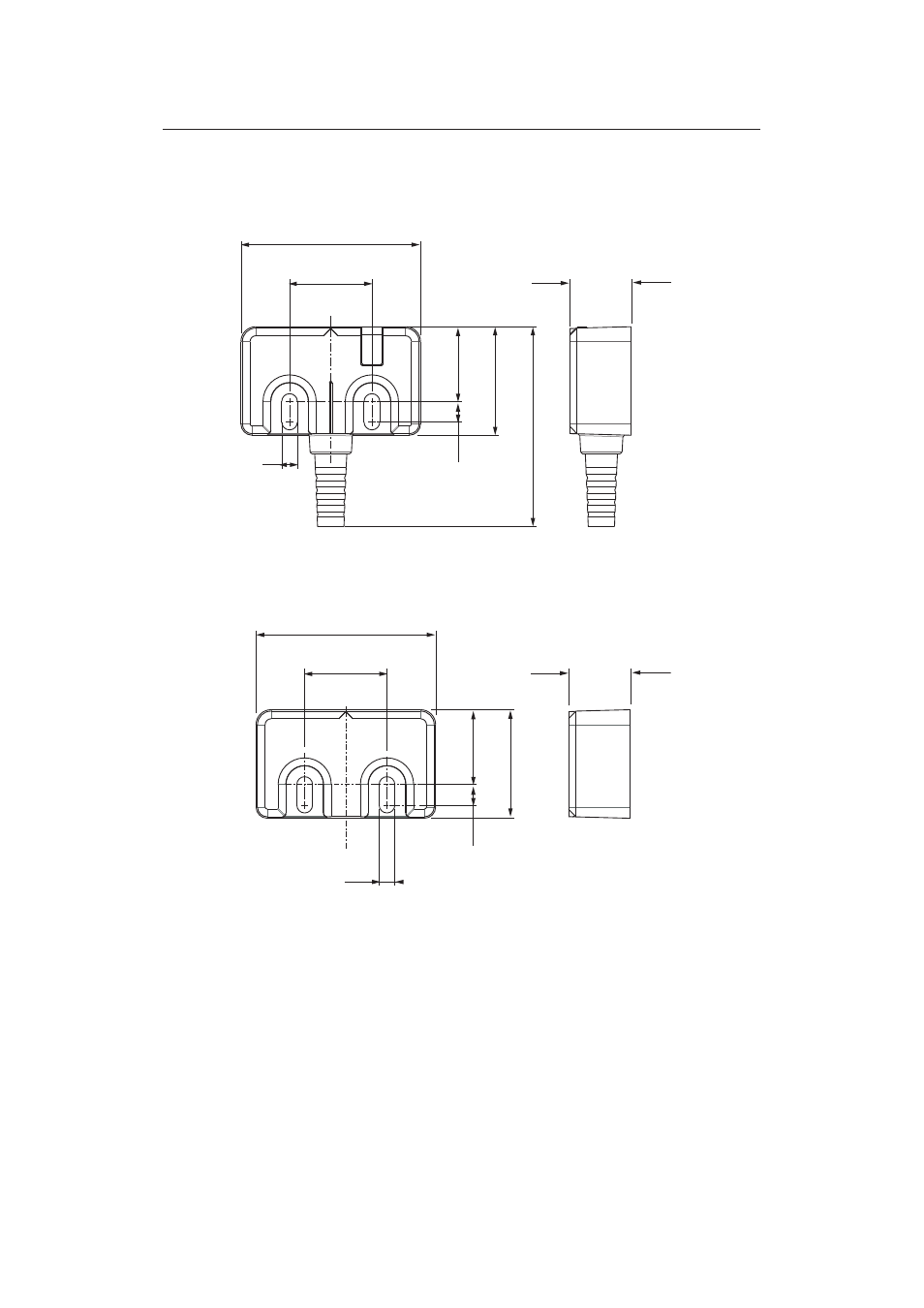

3. Physical Dimensions - mm (inches)
4. Mounting Information
Use non-removable screws, bolts, or nuts to mount the switch and actuator. Do not over torque the
mounting hardware. It is recommended to use M3 screws and washers throughout.
Position the switch and actuator so they are aligned with each other.
4.1 Mounting for Maximum Misalignment
Mount the Sensor to the fixed part of the guard and the Actuator to the movable section. Keep the
Sensor and Actuator within the sensing range detailed in section 4.4.
72697 Issue 4 EO: 28485
4 Magnetically Coded Non Contact Switch Installation Instructions
48.0
(1.89)
22.0
(0.87)
20.0 (0.79)
5.5
(0.22)
29.0 (1.14)
53
(2.1)
16.5
(0.65)
Ш4.2
(0.17)
48.0
(1.89)
22.0
(0.87)
20.0
(0.79)
5.5
(0.22)
29.0
(1.14)
16.5
(0.65)
Ш4.2
(0.17)
Note: Refer to Technical Specifications for Certification information and ratings.
