Led operation and diagnostic, Troubleshooting, Series circuit - 2 guards open – Rockwell Automation 440N SensaGuard Magnetically Coded NonContact Switch (MC2) User Manual

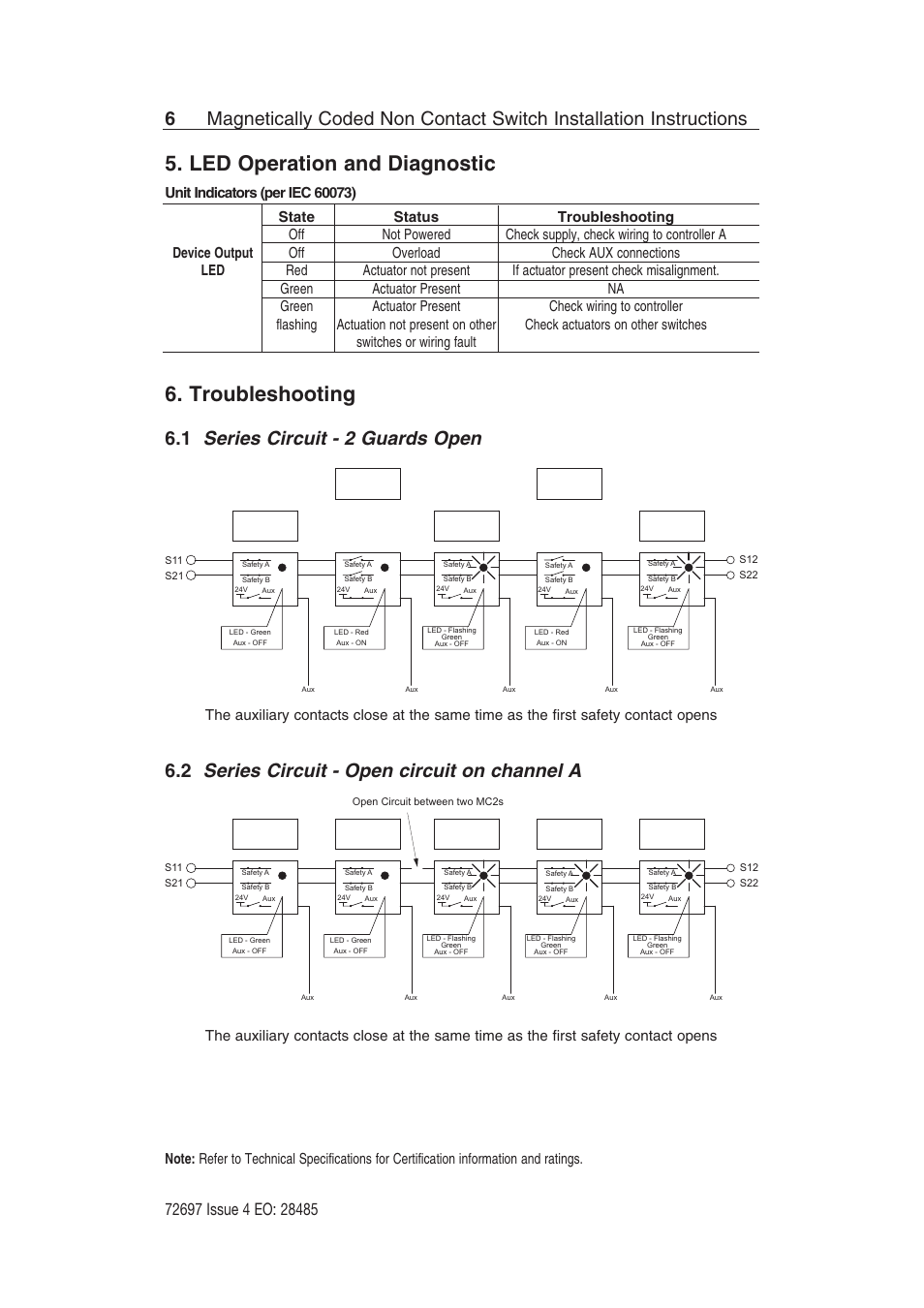

Page 6: Series circuit - open circuit on channel a
