Rockwell Automation 150-F84L_F86L Soft Starter Protective Modules - Manual (Page 9)

28 lb-in
(3.2 Nm)
3
10 lb-in
(1.1 Nm)
4
28 lb-in
(3.2 Nm)
1
10 lb-in
(1.1 Nm)
2
SMC-50 Protective Module Installation Instructions
(Cat 150-F84L (480V); 150-F86L (600V))
PN-164127
DIR 41053-227 (Version 07)
Publication 150-IN036G-EN-E
Printed in U.S.A.
WARNING: To prevent electrical shock, disconnect from power source before
installing or servicing. Install in a suitable enclosure. Keep free from contaminants.
WARNING: Protective modules must not be mounted on the load side when used with controllers that use an
inside-the-delta motor connection or with pump, linear deceleration or braking control. Installing them with a Delta
motor connection will result in immediate damage to the protective module.

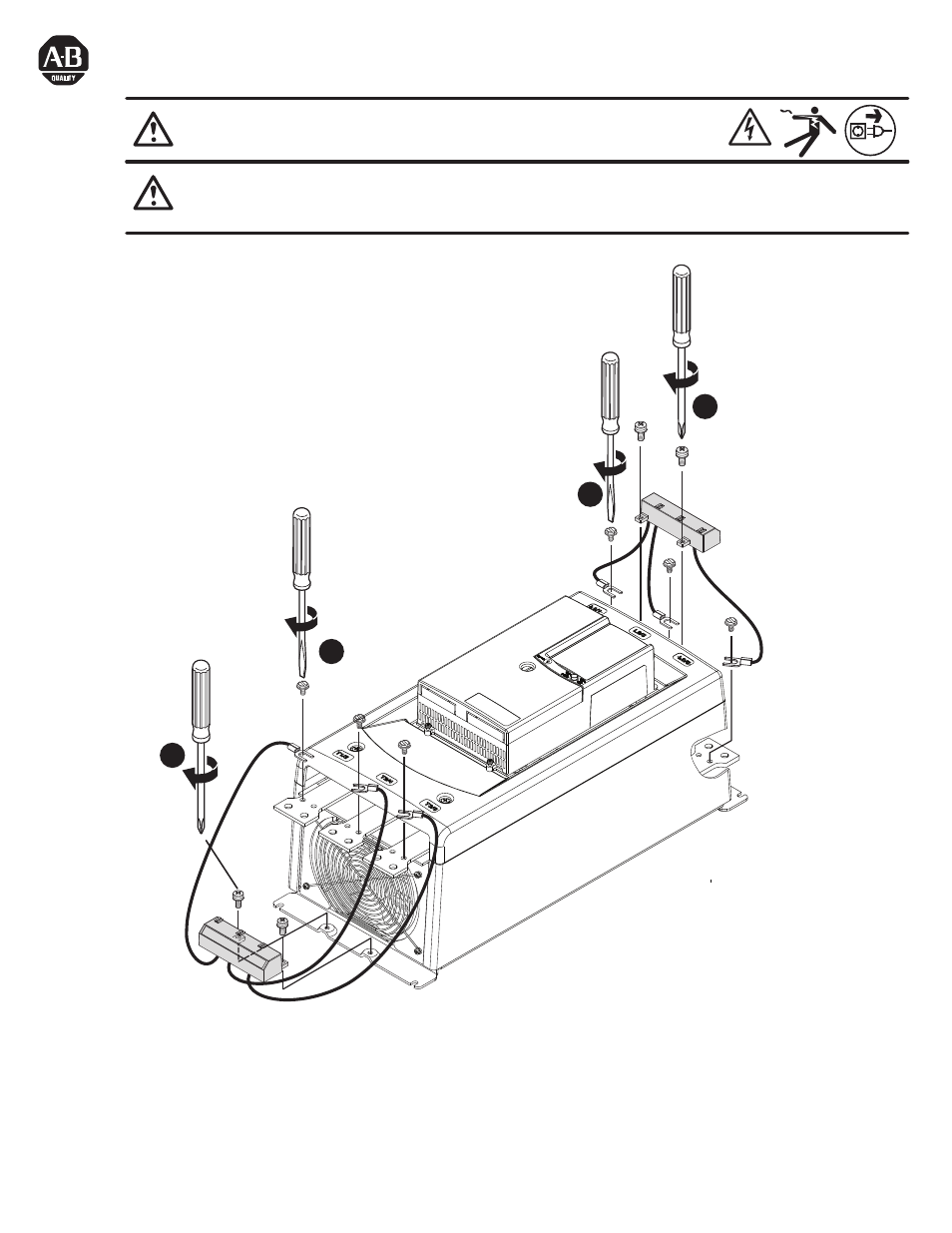

Protective Modules Installation - 150-SC_
