Now

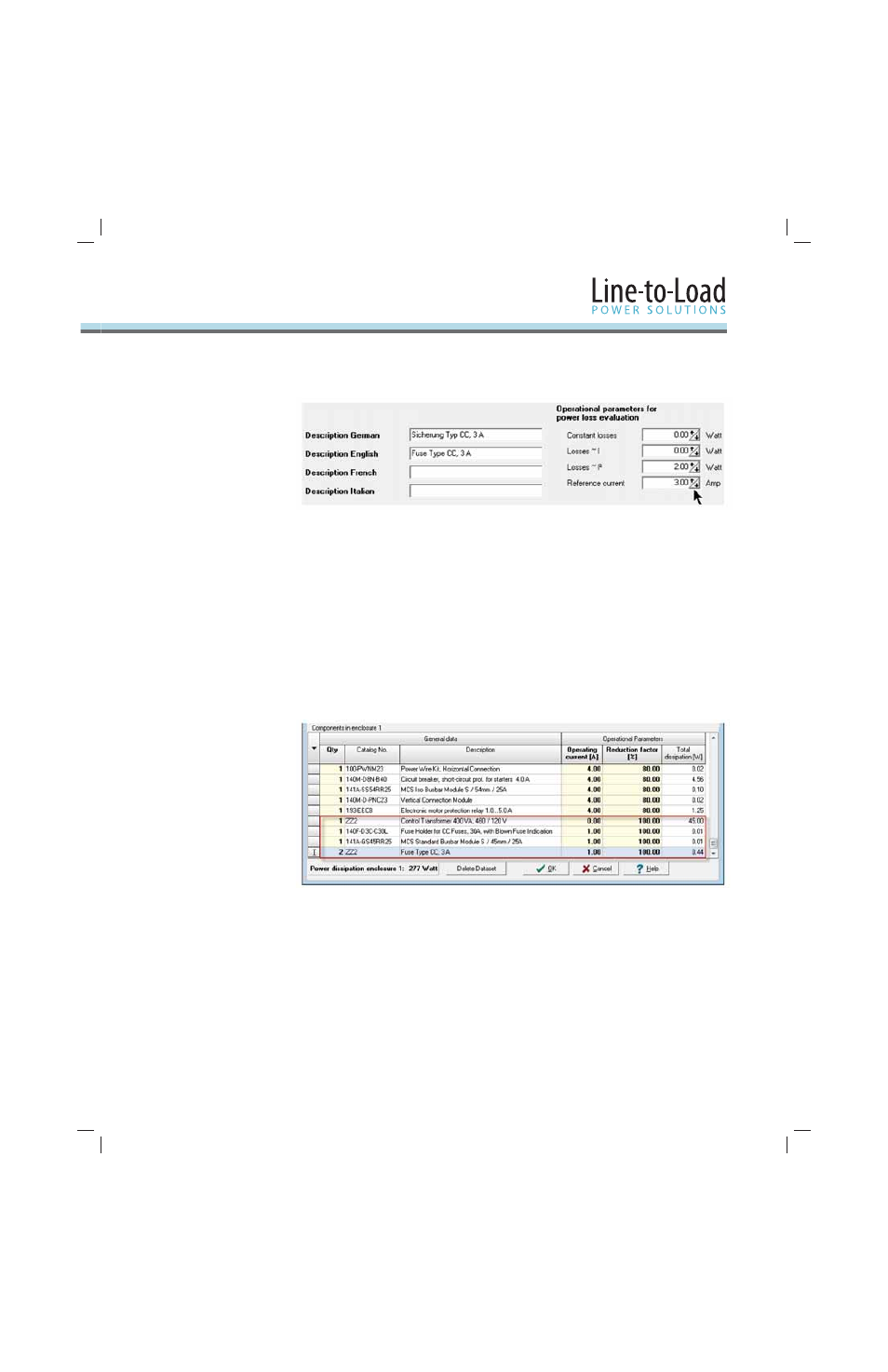

select again [ Speciﬁ c components ], then select “Add New Dataset” and add two CC

fuses, 3 A. Enter the parameters as shown in the picture below and select the [ OK ] button

e newly added components appear at the end of the components table.

Now enter the

quantities and the operating current as shown in the next picture.

e transformer is considered to run at constant power loss, so the Operating Current is

not required.

Because we considered constant power loss and a Service Factor of 100 %, we do not apply a
Reduction Factor to the transformer and its supply circuit.

2.3.2
Add Additional
Components

(continued)
