Installing Pole Conversion Kits 500LC–2PCK, 4PCK, 6PCK, LS3 to Bulletin 500LC Lighting Contactors 4
Publication 500LC–IN004A–EN–P May 2005
Remove the plastic operating screw !
7. Remove the plastic operating screw from the lighting contactor.
8. Reinstall the lighting contactor into the enclosure and tighten the mounting
screws.
9. Reconnect all wires previously removed. Tighten control connections to
10 in–lb. Tighten the line and load connections to 18 in–lb.
10. Close circuit breakers and check electrical operation of the lighting contactor
with the new control voltage.
manual
operating
screw

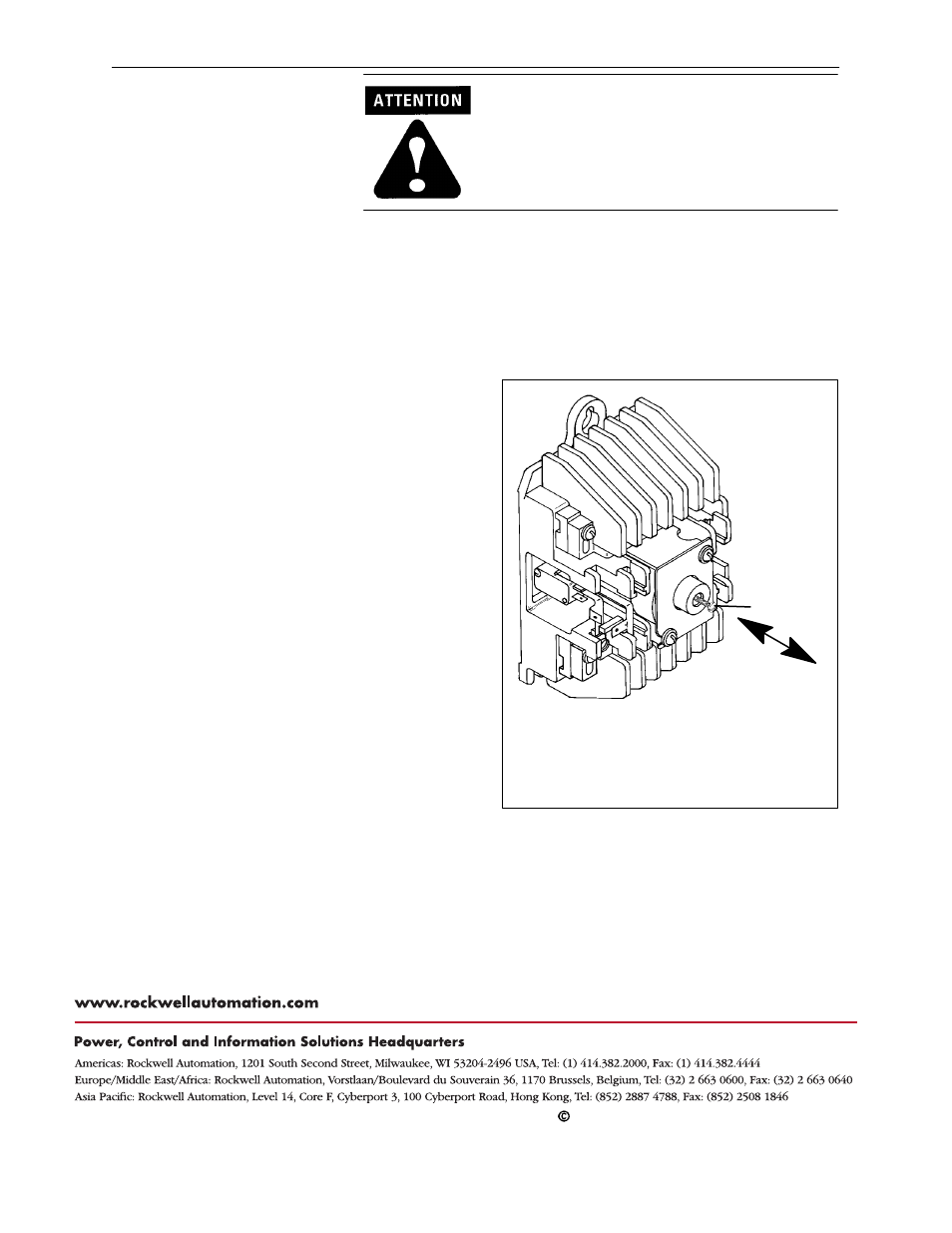

Figure 3 Manual operating screw
Do not manually operate
until all power and control
circuits are disconnected.
push — pull
