Rockwell Automation 150 SMC Dialog Plus Controller - Quick Start - Manual (Page 13)

Rockwell Automation Publication 150-QS002B-EN-P - October 2011 13
Quick Start

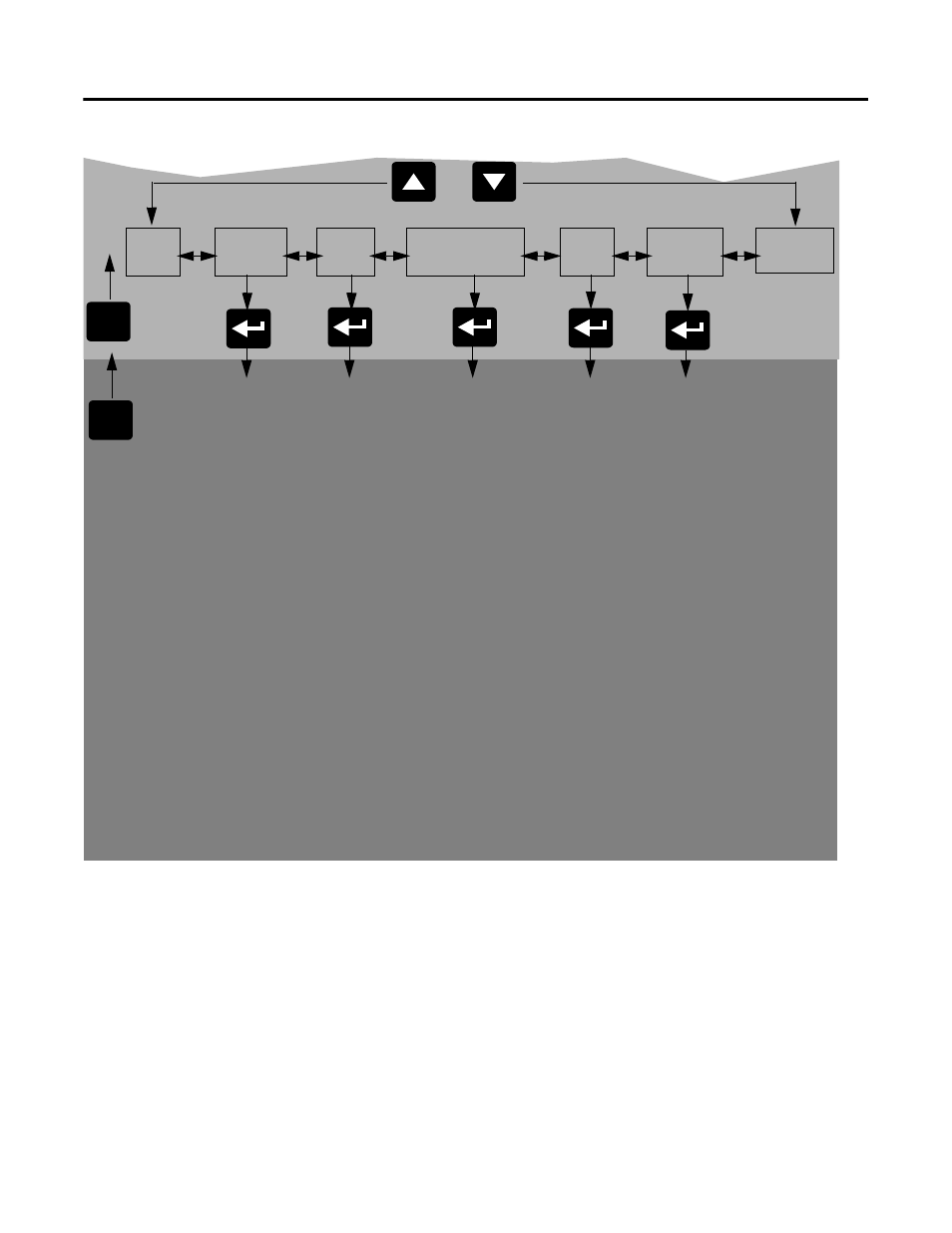

Figure 5 - Menu Structure Hierarchy, Continued
➊Steps back one level.
➋English is currently the only available language
➌For further information on parameters, see Appendix B of the SMC Dialog Plus User Manual, Publication 150-5.3.
➍For further information on parameter management, see the SMC Dialog Plus User Manual, Publication 150-5.3.
Linear
List
Metering
Basic
Setup
Advanced Setup Faults Calibrate Language
Overload Class
Overload Reset
Motor HP Rating
Motor kW Rating
Line Voltage
Motor FLC
Service Factor
Motor Code Letter
LRC Ratio
Converter Rating
CT Rating
Calibration
Enter Calib. Amps
Current Phase A
Parameter Mgmt.
GROUP LEVEL
PARAMETER LEVEL
ESC
or
Clear Fault
Fault Buffer #1
Fault Buffer #2
Fault Buffer #3
Fault Buffer #4
Fault Buffer #5 SMC Option
Starting Mode
Ramp Time #1
Initial Torque #1
Curr. Limit Level
Kickstart Time
Stall Delay
Energy Saver
Aux Contacts 1&2
Aux Contact #3
Contact 3 Config
(Option Settings)
Parameter Mgmt. SMC Option
Starting Mode
Dual Ramp
Ramp Time #1
Initial Torque #1
Ramp Time #2
Initial Torque #2
Curr. Limit Level
Kickstart Time
Stall Delay
Energy Saver
Aux Contacts 1&2
Aux Contact #3
Contact 3 Config
(Option Settings)
Undervolt Level
Overvolt Level
Overvolt Delay
Jam Level
Jam Delay
Unbalance Level
Unbalance Delay
Rebalance
Underload Level
Phase Reversal
Starts per Hour
Restart Attempts
Restart Delay
ETM Reset
Parameter Mgmt. Volts Phase A-B
Volts Phase B-C
Volts Phase C-A
Current Phase A
Current Phase B
Current Phase C
Wattmeter
Kilowatt Hours
Elapsed Time
Power Factor
Mtr. Therm. Usage
ESC
➊
➋
➍
➌
➊
➍
➍
