Rockwell Automation 20G PowerFlex 750-Series EMC Plate and Cores - Frames 1…7 User Manual
Page 6

6
Rockwell Automation Publication 750-IN006G-MU-P - February 2014

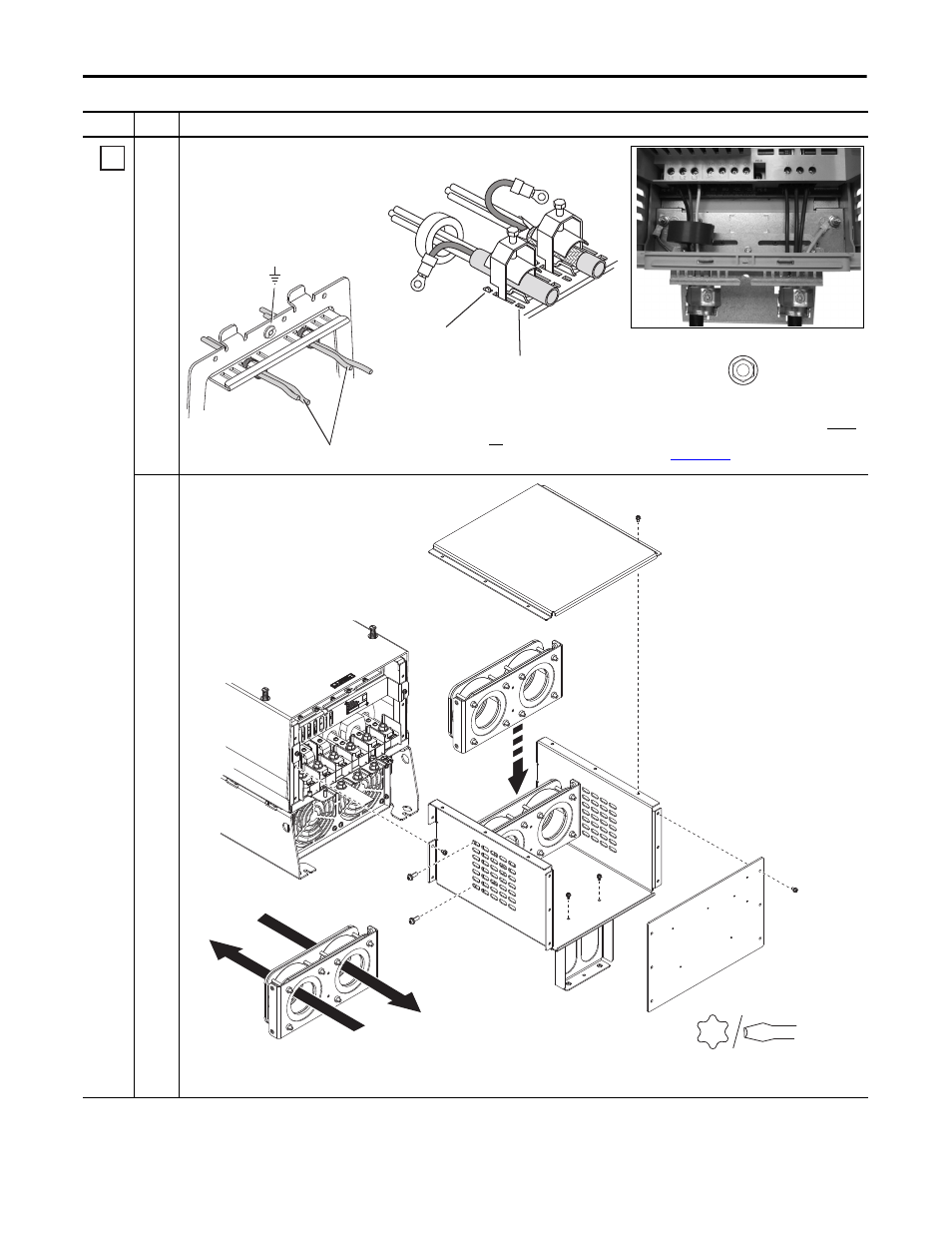

PowerFlex 750-Series EMC Plate and Core(s) – Frames 1…7
5
6
IP00
Step
Frame Procedure
6
continued
IP20,
NEMA/UL Type 0
Flange Mount
to PE Stud
to PE Stud
Input Power (R, S, T)
Shielded or Unshielded
Motor Cable (U, V, W)
Shielded
I/O Signal Shields
I/O Signal Wires
M6 (10 mm) 5.6 N•m (50 lb•in)
PE
The motor cable ground wire connects to the motor PE stud in the drive, however it should
not go through the core. Refer to Wiring and Grounding Guidelines for Pulse Width
Modulated (PWM) AC Drives, publicat
for further information.
T20
2.6 N•m (23.0 lb•in)
#1
x6
x6
x4
x6
Input Power (R, S, T)
Shielded or Unshielded
Motor Cable (U, V, W)
Shielded
The cable shield and drain wires must be
terminated at the shield clamp on the conduit
plate. The ground wire must be connected to
the PE stud in the drive; however, it should not
pass through the core.
For use on Frame 6 IP00 drives. After installation,
the drive achieves an IP20 rating.
