Install the Rewind Plate
To install the rewind plate, complete these steps:
1.
Remove the rewind plate from its storage location inside the printer.
2.
. Position the rewind plate so that the lip on the attached hook plate points
down.

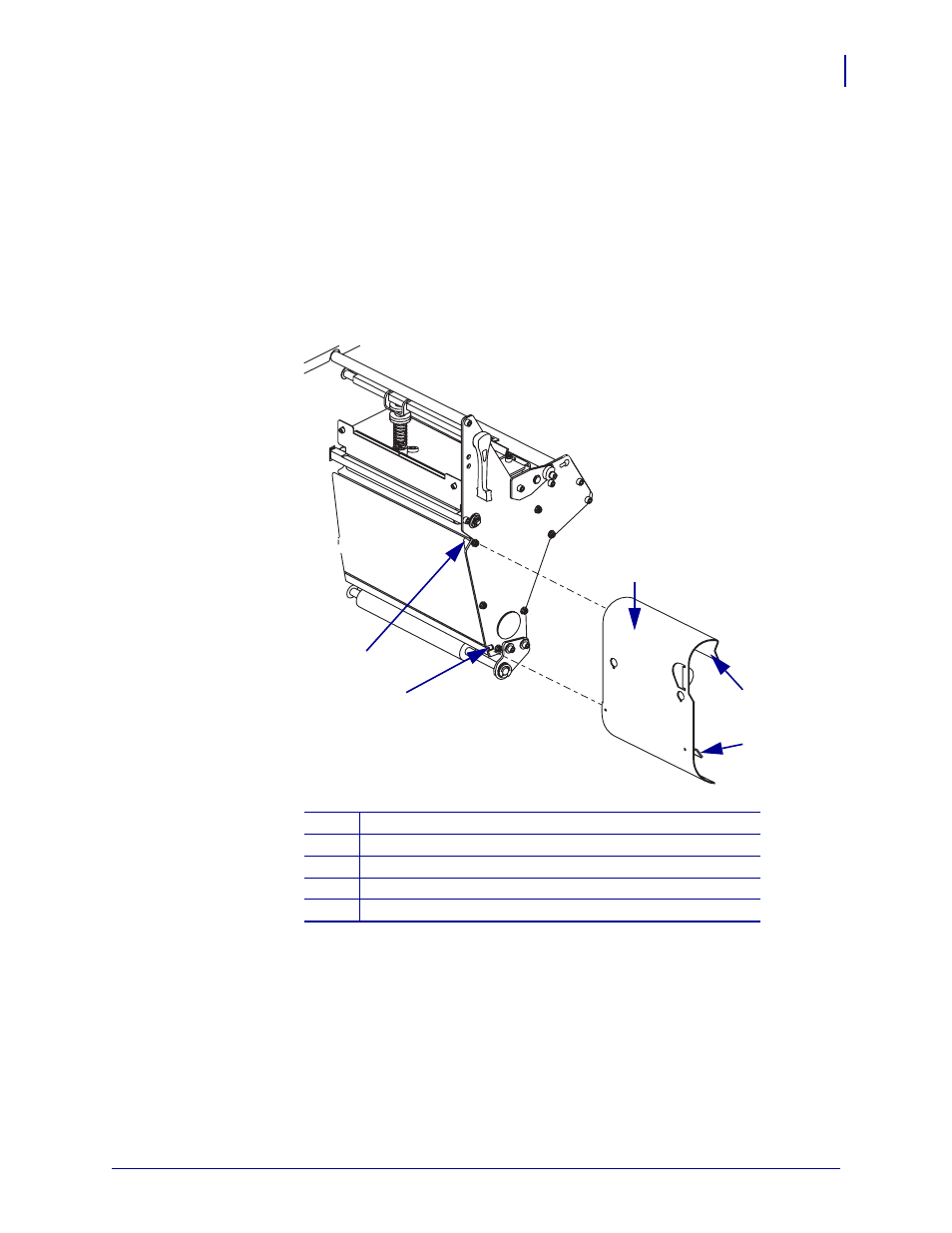

Figure 31 • Rewind Plate
3.
Insert the hook plate lip 1/2 in. (13 mm) into the lower slot in the side plate.
4.
Align the upper end of the rewind plate with the matching upper slot in the side plate.
5.
Slide in the rewind plate until it stops against the printer’s main frame.
1
Upper slot
2
Lower slot
3
Rewind plate
4
Lip
5
Adjustable hook plate
3
4
2
5
1
