E - doc – Rockwell Automation 193-EPT E1 PLUS PTC Thermistor Accessory Module User Manual
Page 5
(5)
Wire Size and Torque Specifications
1X
2X
24.....12 AWG
24.....16 AWG
5 lb-in
1X
2X
0.2......2.5 mm
2
0.25.......1 mm
2
0.55 N.m
1X
2X
0.2.....2.5 mm
2
0.2........1 mm
2
0.55 N.m
R1
R2
IT1
IT2
A1
A2
A1
A2
Wiring Diagram
Schéma de câblage
Verkabelungsschema
Diagrama de cableado
Diagrama de circuito
Schema elettrico
1
2
0.7 - 1.1 N.m
(6 - 10 lb-in)
0.5 - 0.6 N.m
(4.4 - 5.3 lb-in)

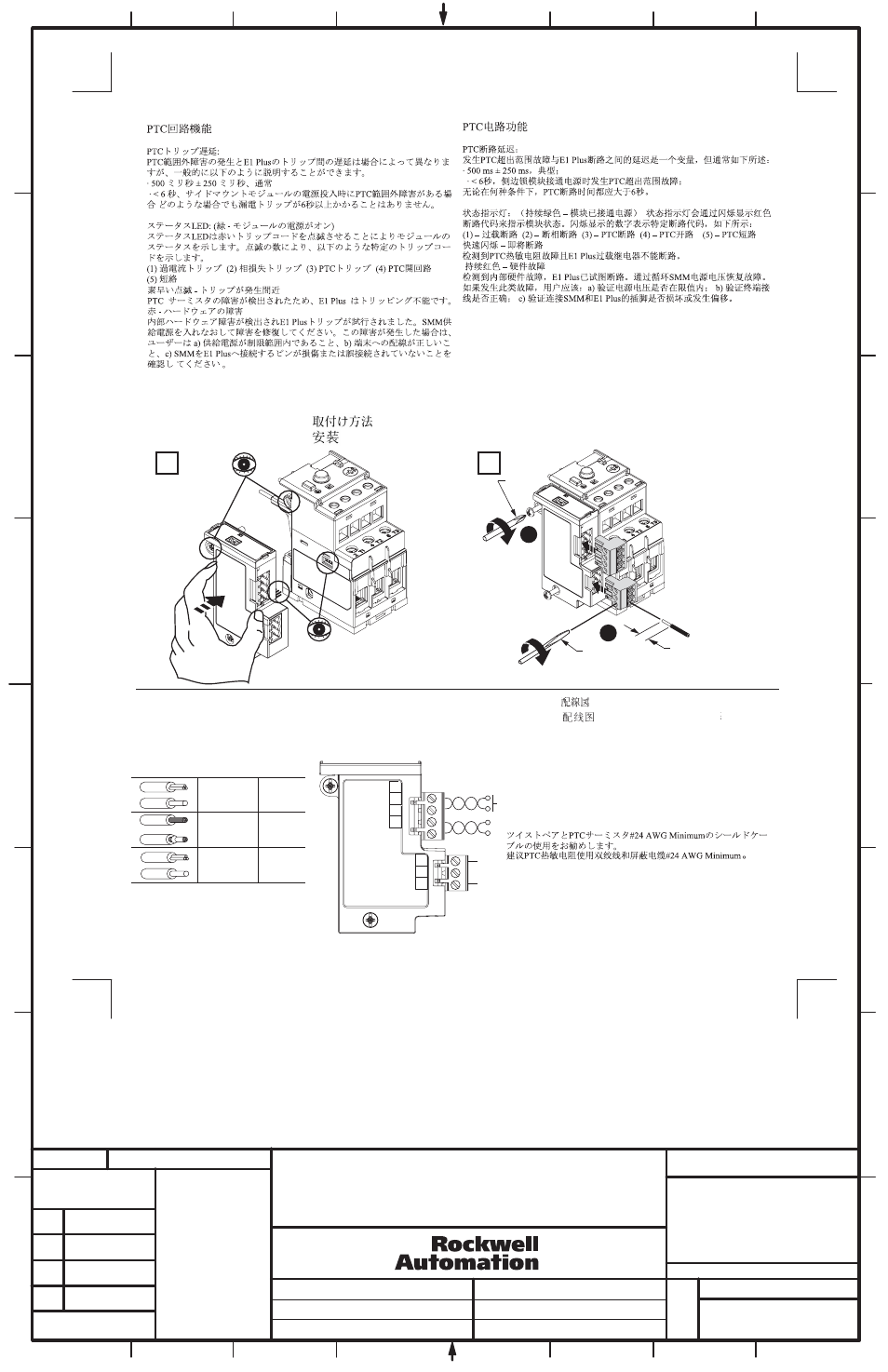

Installation
Instalación
Instalação
Installazione
#2 Driver
7mm
(.28 in)
0.6mm X 3.5mm Blade
(.02 in X .14 in Blade)
R1
R2
IT2
IT1
(24 - 240V, 47 - 63HZ or DC)
1
2
Recommened use of twisted pair and shielded cable for PTC thermistor, #24 AWG
Minimum
L'utilisation d'une paire torsadée et d'un câble blindé est recommandée pour la
thermistance CTP (diamètre minimum : 24 AWG/0,5 mm).
Für den PTC-Thermistor wird die Verwendung von abgeschirmten, verdrillten
Doppelleitungen, mindestens AWG 24, empfohlen.
Se recomienda el uso de un cable de par trenzado y blindado para el termistor
PTC, mínimo #24 AWG.
Recomendamos o uso de no mínimo um cabo em par trançado para redefinição
remota e o termistor PTC AWG nº 24.
Diametro minimo consigliato per il doppino intrecciato e il cavo schermato della
termoresistenza PTC: n. 24 AWG
5
6
BUL. 193 MCS-E1 PLUS
OVERLOAD RELAY PTC THERMISTOR
ACCESSORY MODULE
INSTALLATION INSTRUCTION SHEET
1
1025227
42053-005
OF
N/A
N/A
N/A
REVISION
AUTHORIZATION
DR.
CHKD.
APPD.
DATE
DATE
DATE
E - DOC
LOCATION: MILWAUKEE, WISCONSIN U.S.A.
B-vertical.ai
DWG.
SIZE
SHEET
B
1
2
3
4
5
6
7
8
A
B
C
D
E
F
G
H
REFERENCE
DIMENSIONS APPLY BEFORE
SURFACE TREATMENT
(DIMENSIONS IN INCHES)
TOLERANCES UNLESS
OTHERWISE SPECIFIED
.XX:
.XXX:
ANGLES:
42053
-----------
-----------
-----------
-----------
-----------
-----------
THIS DRAWING IS THE PROPERTY OF
ROCKWELL AUTOMATION, INC.
OR ITS SUBSIDIARIES AND MAY NOT BE COPIED,
USED OR DISCLOSED FOR ANY PURPOSE
EXCEPT AS AUTHORIZED IN WRITING BY
ROCKWELL AUTOMATION, INC.
