Configuring the Adapter 3-3
If your drive has either an LED or LCD HIM (Human Interface Module),
access parameters in the adapter as shown below. It is recommended that
you read through the steps for your HIM before performing the
sequence. For additional HIM information, refer to your PowerFlex
Drive User Manual or the HIM Quick Reference card.
Using an LED HIM
Using an LCD HIM
Using the PowerFlex HIM

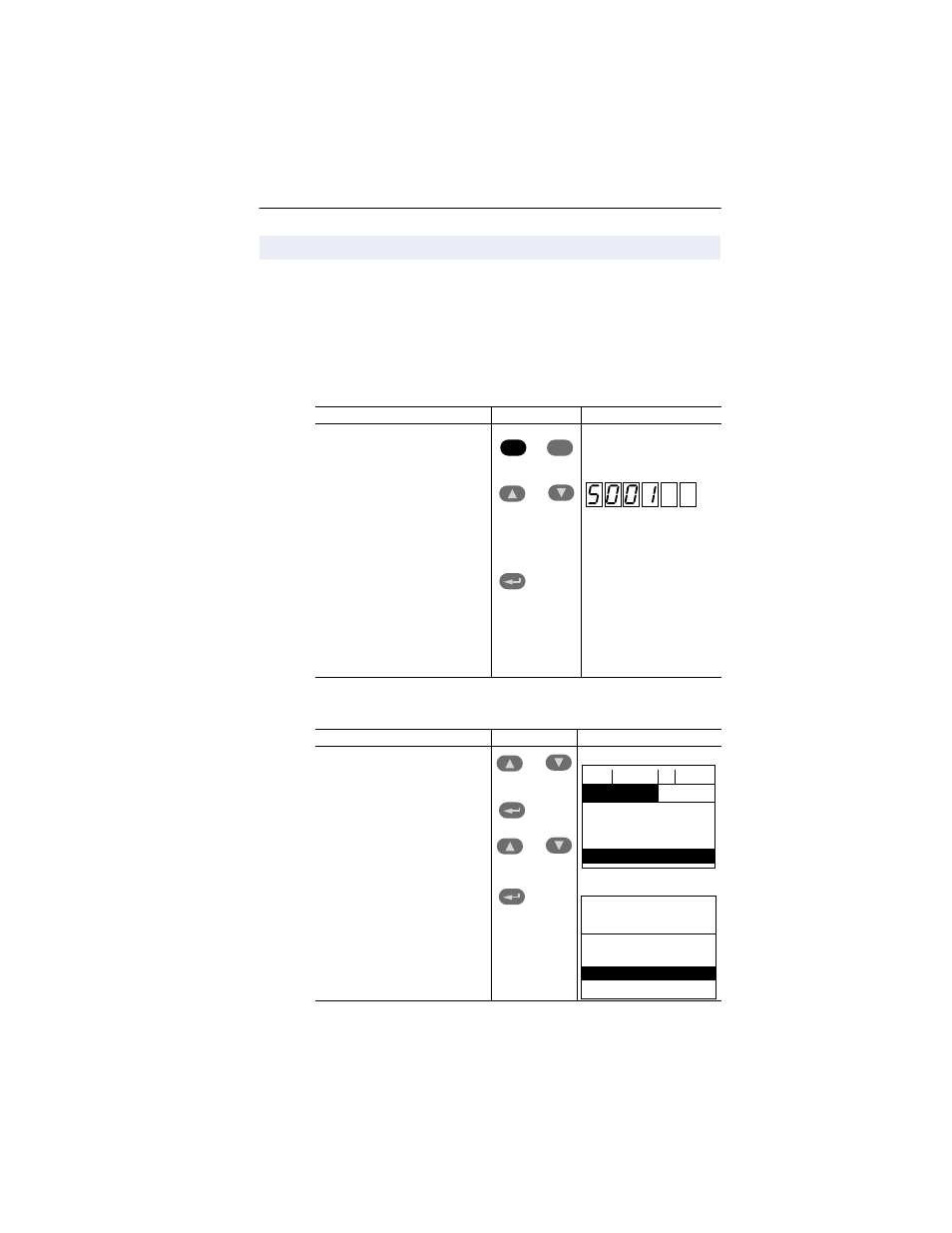

Step Key(s) Example Screens
1. Press the ALT and then Sel
(Device) to display the Device
Screen.
2. Press the Up Arrow or Down
Arrow to scroll to the
20-COMM-S adapter. Letters
represent files in the drive, and
numbers represent ports. The
adapter is usually connected to
port 5.
3. Press the Enter key to enter your
selection. A parameter database
is constructed, and then the first
parameter is displayed.
4. Edit the parameters using the
same techniques that you use to
edit drive parameters.
Step Key(s) Example Screens
1. In the main menu, press the Up
Arrow or Down Arrow to scroll to
Device Select.
2. Press Enter to enter your
selection.
3. Press the Up Arrow or Down
Arrow to scroll to the
20-COMM-S adapter.
4. Press Enter to select the
20-COMM-S adapter. The main
menu for the adapter is
displayed.
5. Edit the parameters using the
same techniques that you use to
edit drive parameters.
OR
Sel ALT
Device
OR
OR
F-> Stopped Auto
0.00 Hz
Main Menu:
Diagnostics
Parameter
Device Select
Port 5 Device
20-COMM-S
Main Menu:
Diagnostics
Parameter
Device Select
