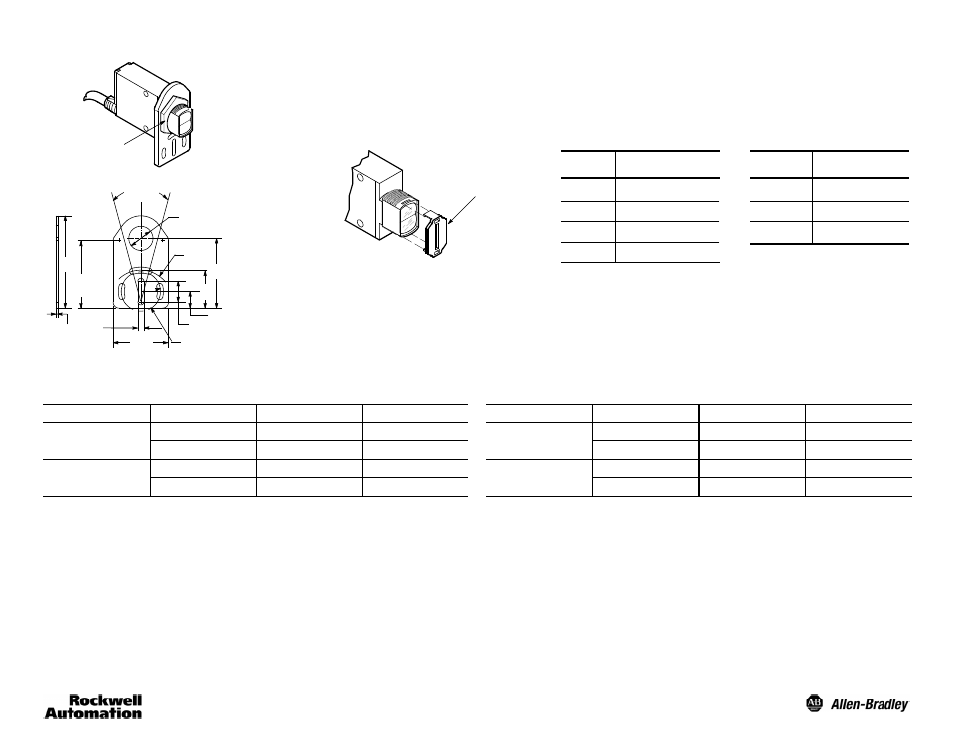

Accessories—mm (inches) (continued)
R 24
(0.95)
52
(2.04)
2 Places
70
(2.78)
Straight Mounting Bracket #60--2656
1.5
(0.06)
42.4
(1.67)
R 15
(0.59)
15.7
(0.62)
30_
3 Places
18.5
(0.73) Dia.
29
(1.14)
12.7
(0.50)
53
(2.10)
4.6
(0.18)
4 Places
Apertures
889R--F3AEA--2
Heavy duty 1.8m (6ft) with
protective shield
889R--F3AEA--5
Heavy duty 3.6m (12ft) with
protective shield
889R--F3AEA--10 Heavy duty 6m (20ft) with
protective shield
Snap-on apertures for Transmitted Beam applications are avail-
able for MiniSight sensors to detect small objects. Select an ap-
erture slot size that will be blocked by the object being detected
for best results. An aperture should be placed on both the source
and receiver units for proper operation.
1mm slotted aperture, Qty. 20: #60--2673
2mm slotted aperture, Qty. 20: #60--2674
4mm slotted aperture, Qty. 20: #60--2675
Aperture assortment, Qty. 4 each—1mm, 2mm, 4mm: #60--2676
Snap-on Aperture
889D--F4EC--2
Heavy duty 2m (6.6ft) with
protective shield
889D--F4EC--5
Heavy duty 5m (16.4ft) with
protective shield
889D--F4AC--2
General purpose 2m (6.6ft)
nonshielded
889D--F4AC--5
General purpose 5m (16.4ft)
nonshielded
Quick-Disconnect Cordsets
All quick-disconnect versions of DC
MiniSight sensors use 4-conductor
micro or pico style quick-disconnect
cordset. These cables are PVC
insulated and are supplied with
gold-plated female contacts and
nickel-plated brass hardware.
AC/DC MiniSight sensors with
quick-disconnect use 3-conductor
micro style quick-disconnect cables.
These cables are PVC insulated and
are supplied with gold-plated female
contacts and nickel-plated brass
hardware.
DC MiniSight Sensors
AC/DC MiniSight Sensors
Catalog
Number
DC Quick-Disconnect
Cable Description
Catalog
Number
DC Quick-Disconnect
Cable Description
18mm Mounting Nut
(supplied with sensor)
Catalog number 75012--097
max torque = 10in/lbs
Fiber Optic Cable Selection
Glass Fiber Optic Cables
Plastic Fiber Optic Cables
Sensing Mode
Glass Fiber Diameter
Typical Fiber Model
Maximum Range
Sensing Mode
Glass Fiber Diameter
Typical Fiber Model
Maximum Range
Diffuse
3.1 (0.125)
43GR--TBB25SL
38 (1.5)
Diffuse
1 (0.040)
43PR--NES57ZS
31 (1.2)
1.1 (0.046)
43GR--TFS10ML
21 (0.8)
0.5 (0.020)
43PR--NGS53ZM
12.7 (0.5)
Transmitted Beam
3.1 (0.125)
43GT--TBB25SL
457 (18)
Transmitted Beam
1 (0.040)
43PT--NJS56FS
127 (5)
1.1 (0.046)
43GT--TFS--10ML
152 (6)
0.5 (0.020)
43PT--NBS52FM
38 (1.5)
Hundreds of other fiber optic cabes are available. Consult the Allen-Bradley Fiber Optic Cable addendum catalog, publication C114--CA004A--EN--P.
