Brother FAX-3800 User Manual
Page 134
13 - 26
T R O U B L E S H O O T I N G A N D R O U T I N E M A I N T E N A N C E
6

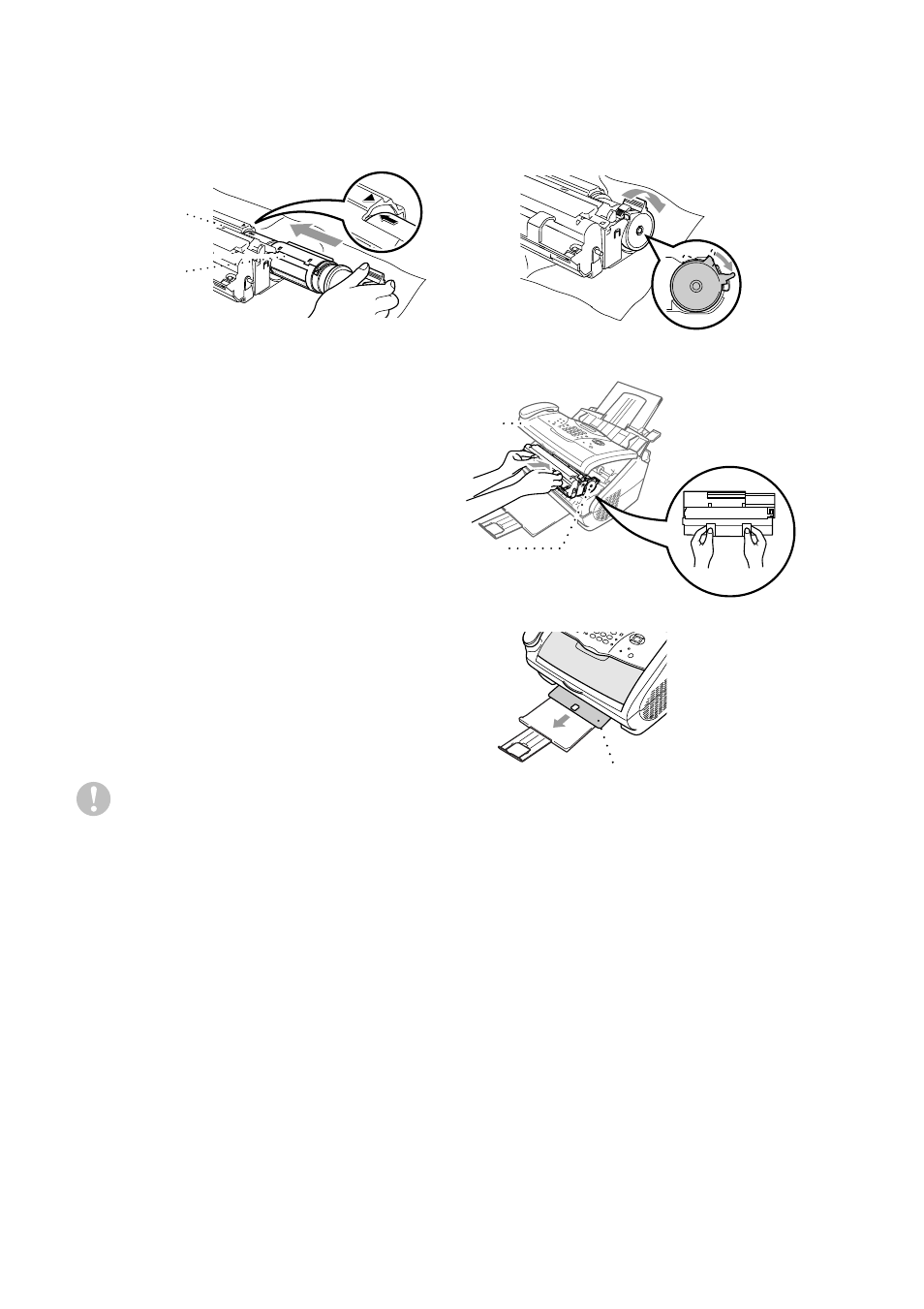

Reinstall the toner cartridge into the new drum unit. For more information, see
Replacing the Toner Cartridge,
7
Holding the new drum unit by its
handles, install it. Close the top
cover.
8
The FAX/MFC will eject the
clear plastic starter sheet
automatically.
Caution
■
Do not touch the scanner window with your finger.
■
Handle the toner cartridge and drum unit carefully because they contain toner.
If toner scatters and your hands or clothes get dirty, immediately wipe or wash
it off with cold water.
Toner
Cartridge
New
Drum Unit
Top Cover
New
Drum Unit
Clear Plastic Starter Sheet
