Step 4: install the new power supply filter board – Rockwell Automation 20P PowerFlex DC Drive - Frame C Power Supply Filter Circuit Board User Manual
Page 7

PowerFlex® DC Drive - Frame C Power Supply Filter Circuit Board
7
7. Remove all connections from the top of the terminal blocks on the
Power Supply Filter board.
8. Remove the two screws that secure the top of the Power Supply Filter
board to the drive and remove the board from the drive.
Step 4: Install the New
Power Supply Filter Board
Install the Power Supply Filter board in reverse order of removal as detailed
in Step 3:
Remove the Existing Power Supply Filter Board on page 4
1. Inspect the existing X5, XTM and XUV cables for burn marks, cracks
or loose connectors. If necessary, replace the cables on the Power
Supply Filter board with the new cables provided.
2. Replace any cables ties as necessary.

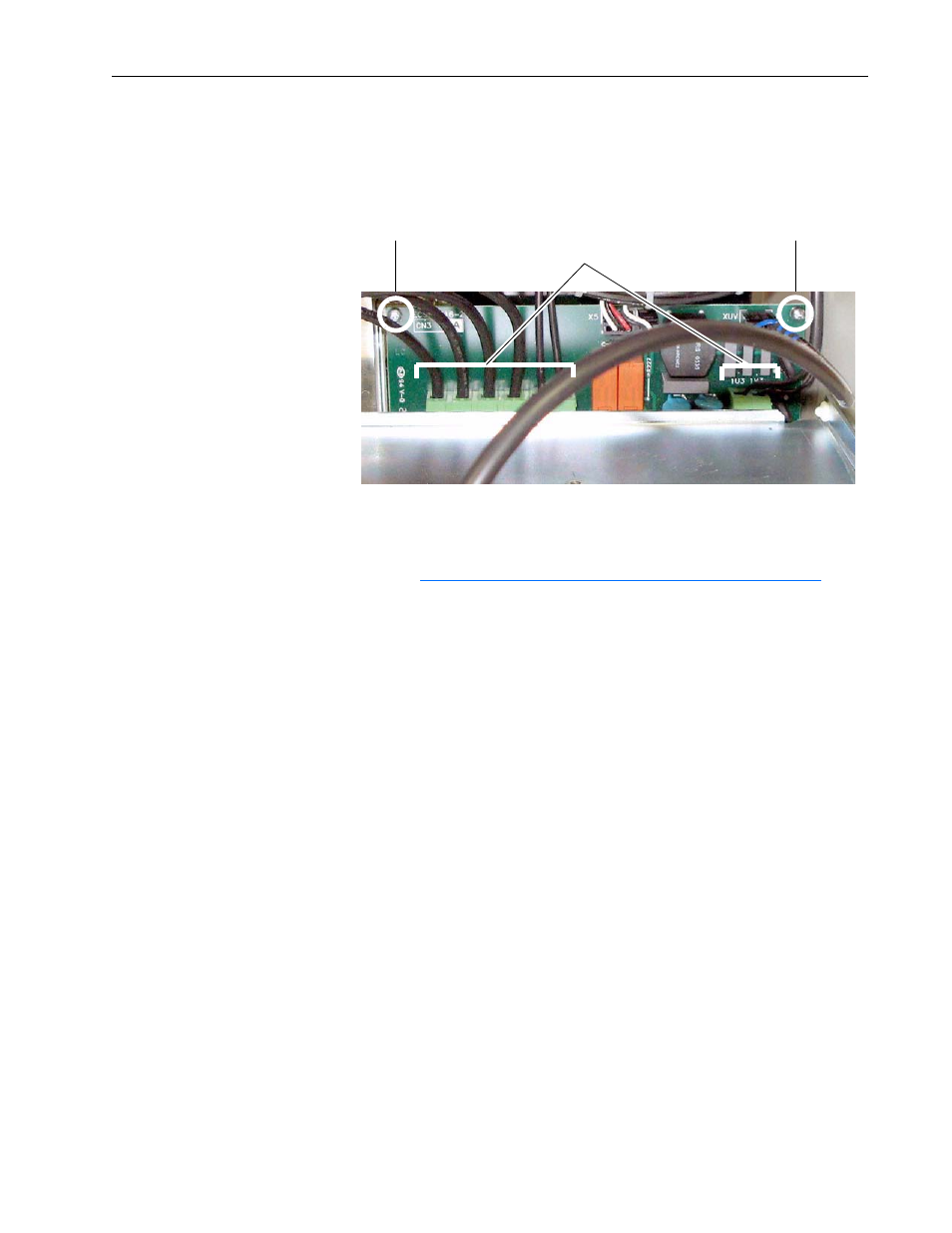

Remove wires
Remove screw
Remove screw
