Rockwell Automation 20P PowerFlex DC Drive - Frame C Power Supply Filter Circuit Board User Manual
Page 6
6
PowerFlex® DC Drive - Frame C Power Supply Filter Circuit Board

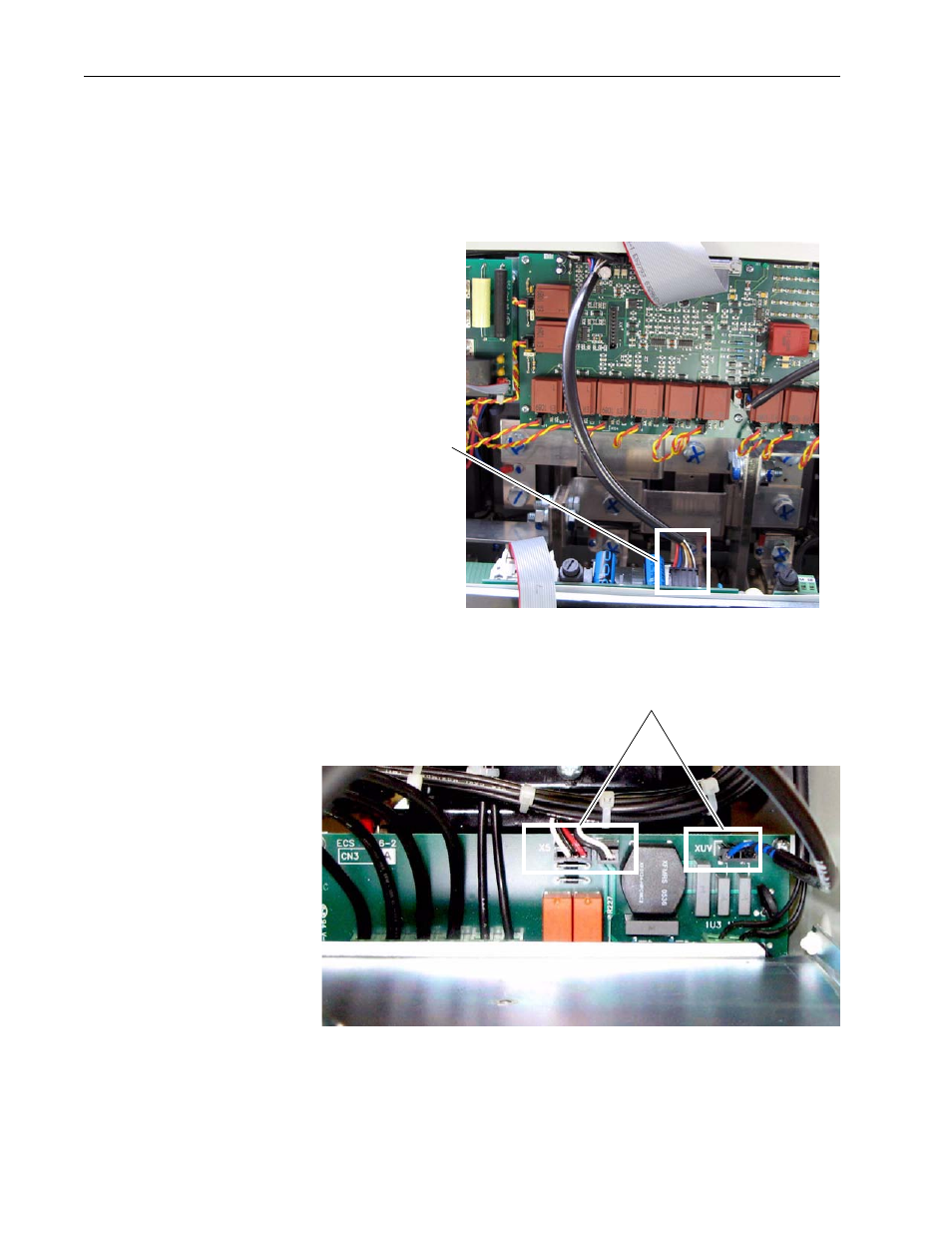

5. Disconnect the cable from connector XSW on the Switching Power
Supply board and lower the Control EMI shield until it rests on the
drive chassis.
Important: If the drive is not in a vertical position, the Control EMI
shield will not stay open without a means of restraint.
6. Disconnect the wires from connectors X5, XTM, and XUV on the
Power Supply Filter board.
Remove cable
Remove connections
