Rockwell Automation 20P PowerFlex DC Drive - Frame C Power Supply Filter Circuit Board User Manual
Page 4
4
PowerFlex® DC Drive - Frame C Power Supply Filter Circuit Board
4. Disconnect the HIM Communication cable from the connector on the
upper right corner of the Control board and set the cover aside.
Step 3: Remove the
Existing Power Supply Filter
Board
Important: Mark all connections and wires before removal to avoid
incorrect wiring during reassembly.
Important: Note the location of the cable ties that secure the cables
connected to the Transient Noise Filter board for correct
positioning during reassembly.

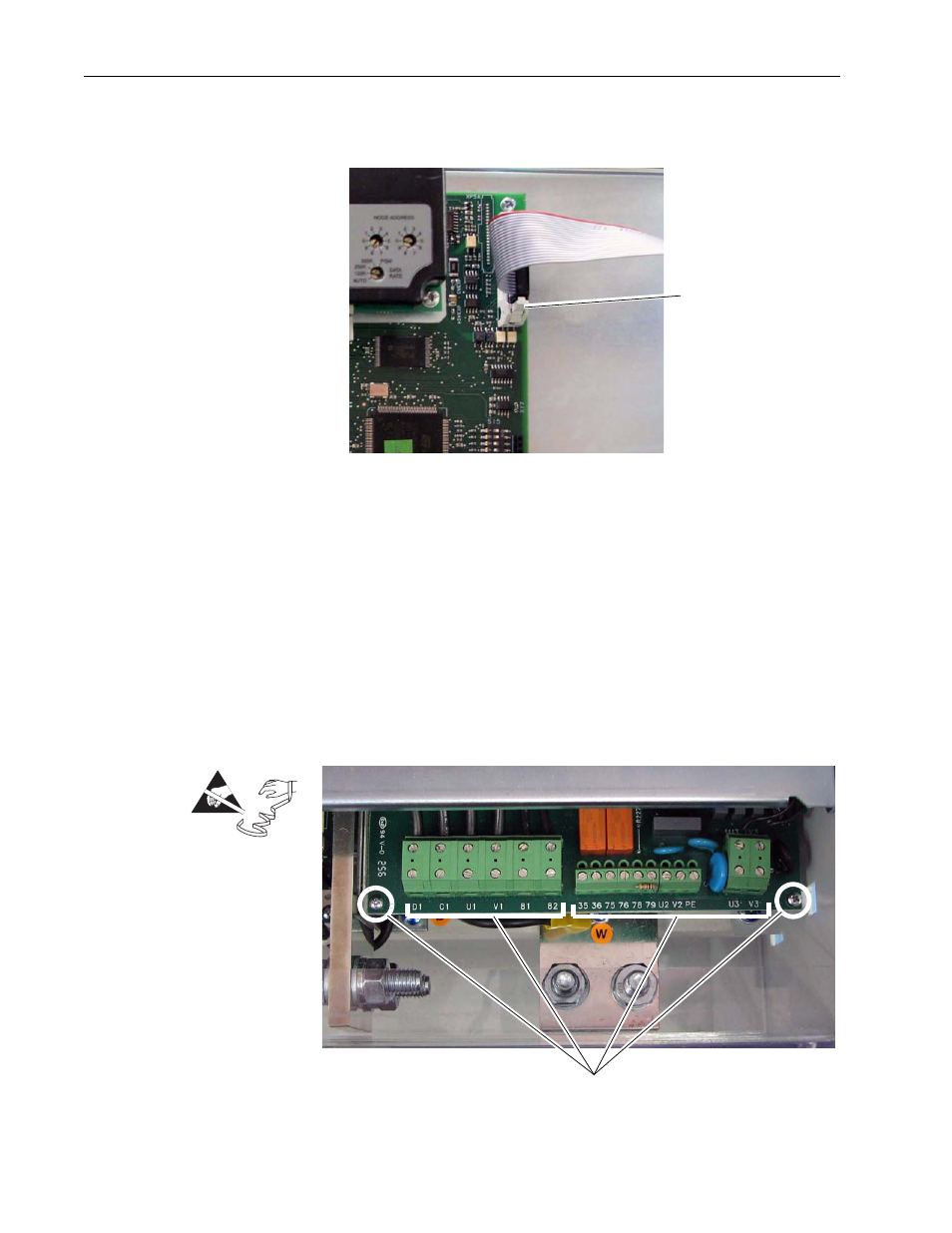

1. Remove all wires from the bottom of the terminal blocks on the Power
Supply Filter board.
2. Remove the two screws that secure the bottom of the Power Supply
Filter board to the drive.
Pull tabs out
to disconnect
cable.
=
Remove wires and screws
Note: The Power Supply
Filter circuit board is located
in the lower right corner of
the drive chassis, just
above the power terminals.
