2

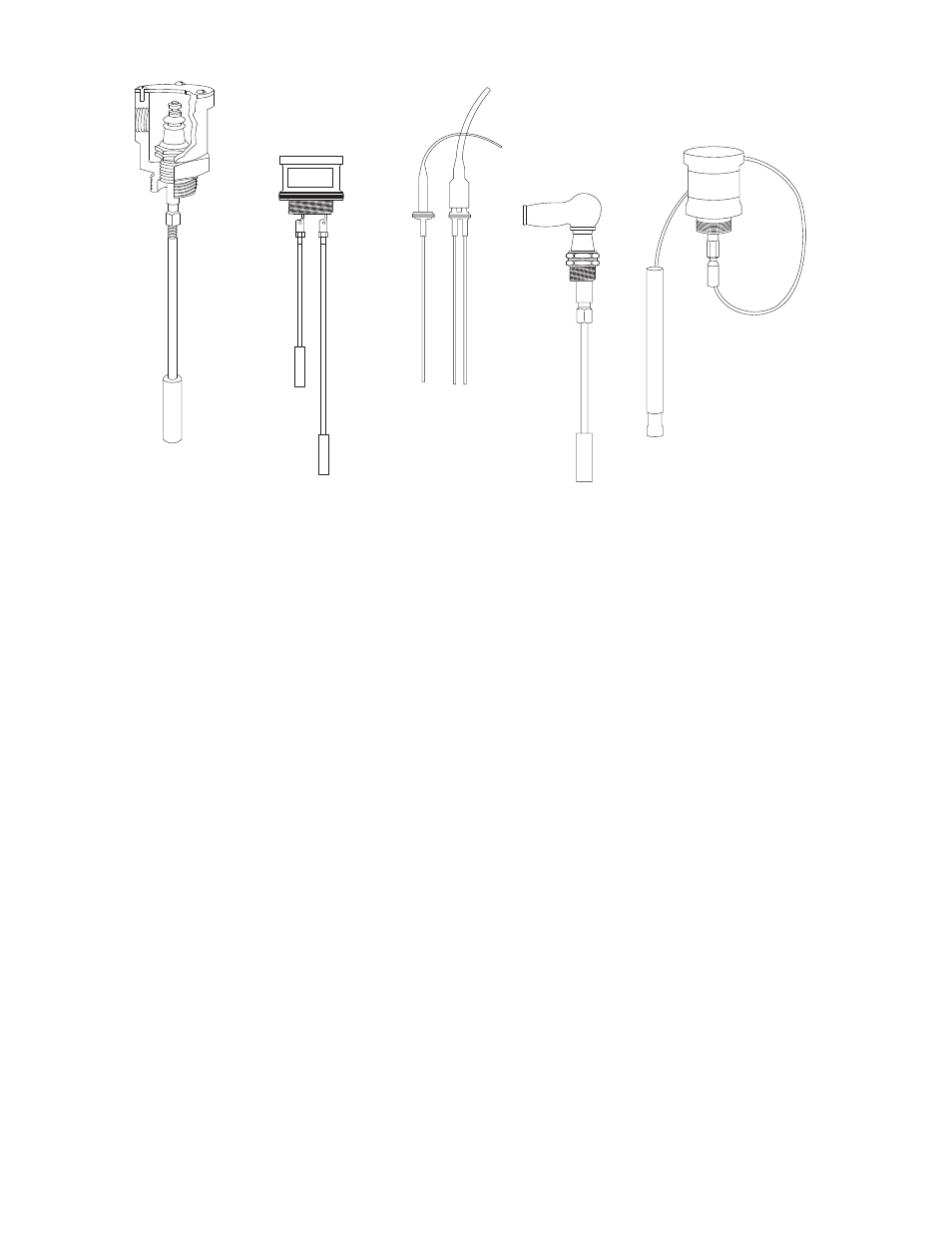

Figure 1: Probes for Level Controls Series 61, 63, 64
Type 61LF1
probe fitting
with Type
64MR1 suspension
wire and tip
Type 61LJ2
probe fitting
with
Type 64CR1
probe rods
and tips
Type 63GH1
and 63GH2
sanitary probe
fitting and rod
assemblies
Type 61BD1
probe fitting
with
Type 64CR1
probe rod
and tip
Type 61LF1
probe fitting
with
Type 64CR1
probe rod
and tip
Probe Assemblies
A selection of probe assemblies is available for a wide variety of
applications. The probe assembly consists of a probe fitting threaded for
convenient installation into a tank, vat, or other container; a stainless
steel probe rod or insulated suspension wire which may be cut to the
desired length for the particular installation; and a probe tip designed to
provide the required surface area at a point of contact with the liquid.
Figure 1 shows typical probe assemblies.
Series 61 probe fittings are ceramic insulated with stainless steel trim
which may be used either alone or in one of a variety of metal enclosures.
Single and double probe fittings are available. Series 63 sanitary probe
fittings are available for dairy and other food processing installations.
Sanitary probes do not require probe tips for satisfactory operation.
Series 64 probe tip assemblies are combinations of a probe rod or
suspension wire of the desired length with a suitable probe tip and are
used with all Series 61 probe fittings.
