1-12
Installation/Wiring
PowerFlex Diode Bus Supply User Manual
Publication 20T-UM001D-EN-P

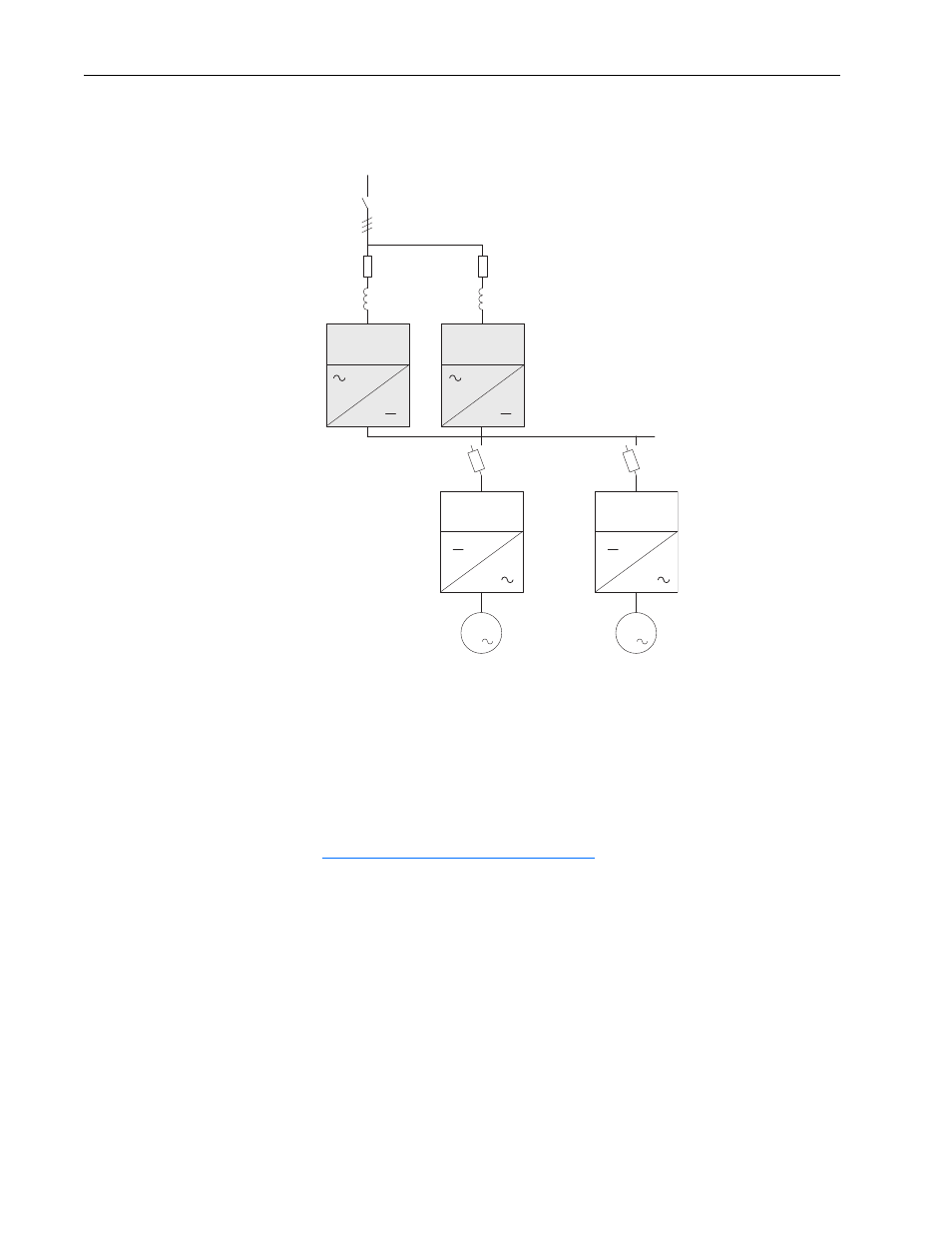

Figure 1.7
Parallel Diode Bus Supply Wiring Diagram
CE Conformity
Conformity with the Low Voltage (LV) Directive and Electromagnetic
Compatibility (EMC) Directive has been demonstrated using harmonized
European Norm (EN) standards published in the Official Journal of the
European Communities. The Diode Bus Supply complies with the EN
standards listed below when installed according to the User Manual.
CE Declarations of Conformity are available online at
Low Voltage Directive (73/23/EEC)
• EN50178 Electronic equipment for use in power installations
EMC Directive (89/336/EEC)
• EN61800-3 Adjustable speed electrical power drive systems Part 3:
EMC product standard including specific test methods.
3
M
3
M
AC - Drive 1
AC - Drive 2
DC Bus
Line
Reactor
Line
Reactor
Power Input
Main Switch or
Main Input Contactor
Diode
Bus Supply
Diode
Bus Supply
