General grounding requirements, Safety ground terminal - pe, Rfi filter grounding – Rockwell Automation 20T PowerFlex Diode Bus Supply User Manual

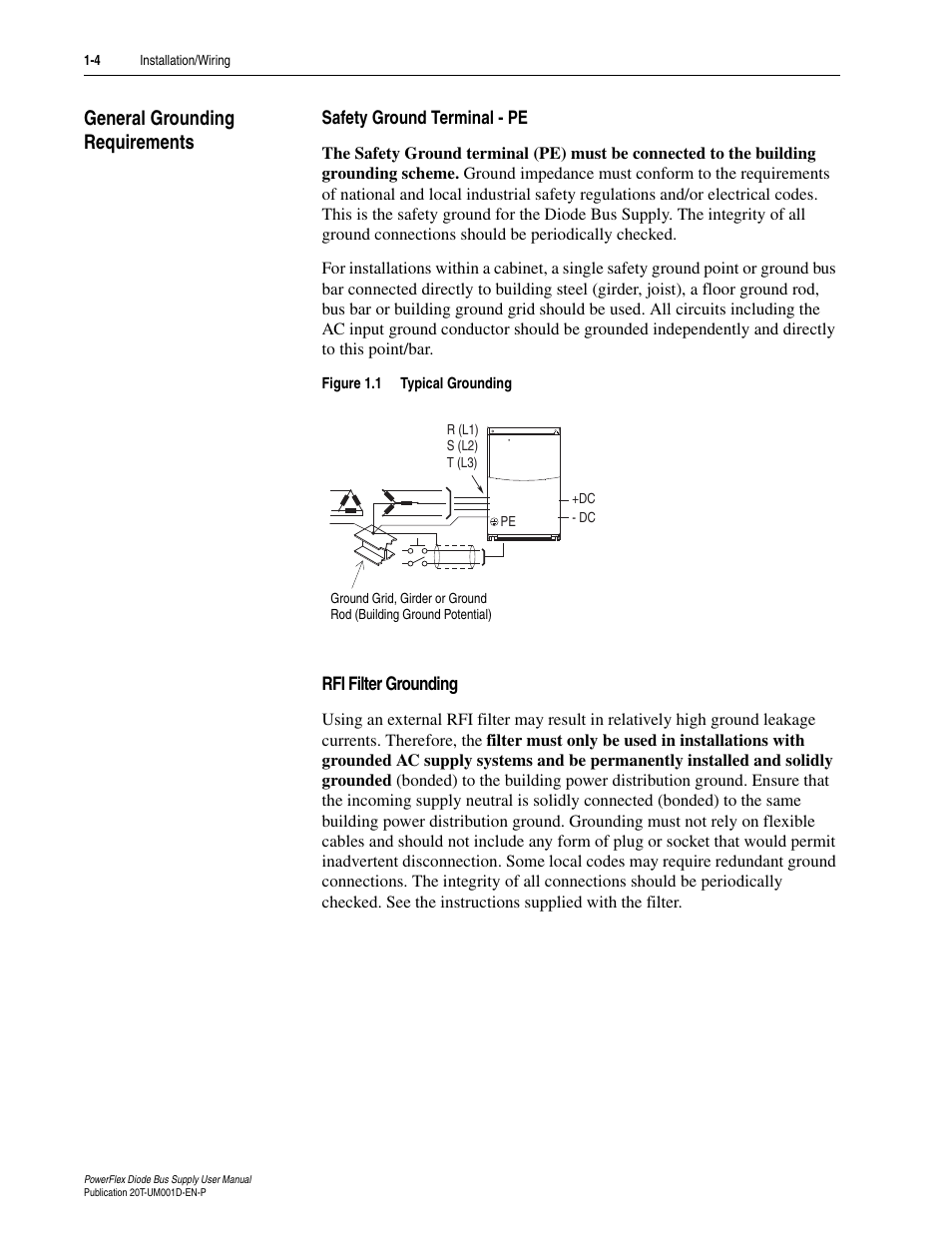

Page 16: General grounding requirements -4
