5.2 WI-I/O-EX-1-S-12 module

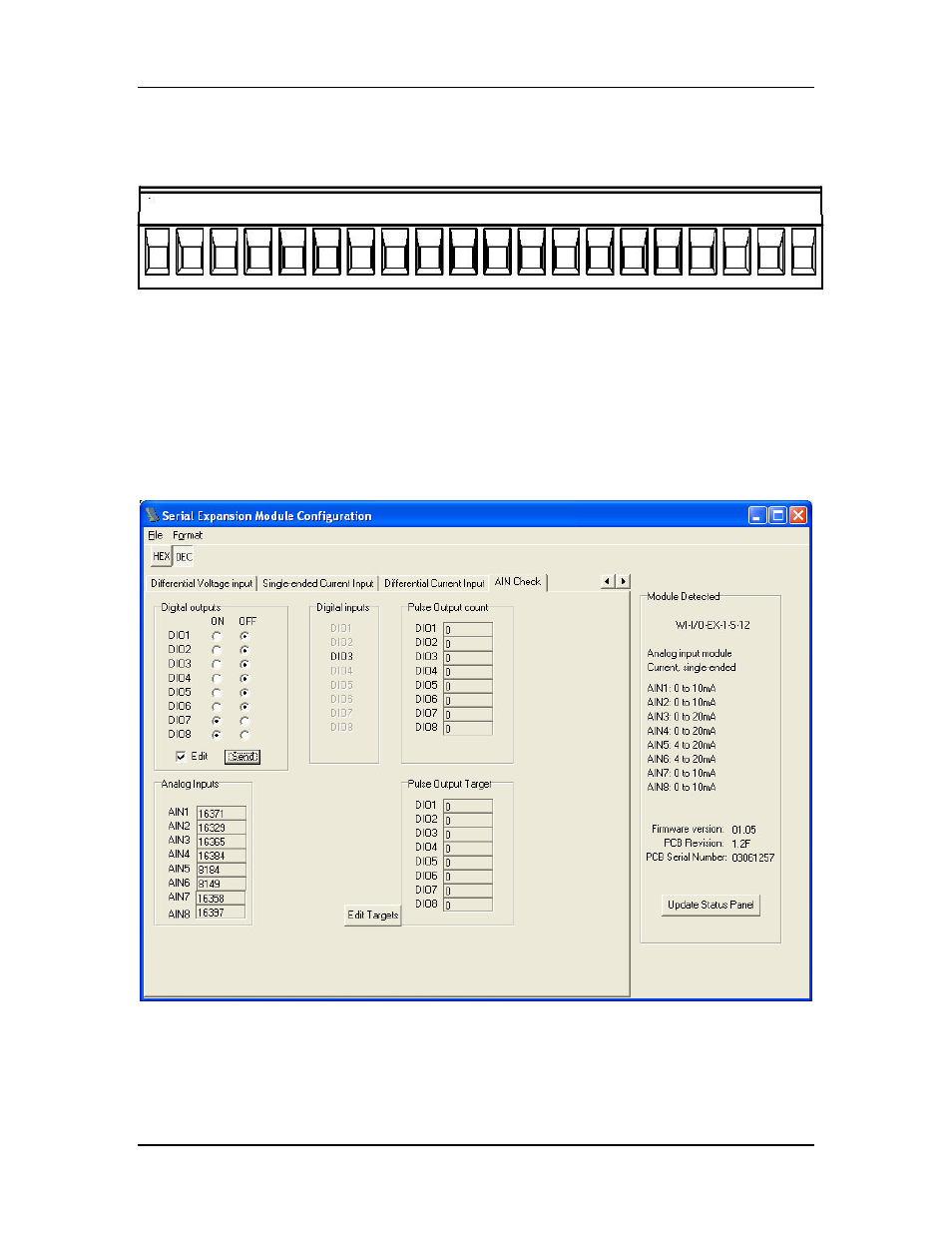

The I/O terminal block for the WI-I/O-EX-1-S-12 is shown in Figure 5-3.
Figure 5-3: I/O terminal block for WI-I/O-EX-1-S-12.
Pulse outputs coincide with DIO terminals 1-8.
The operation of the WI-I/O-EX-1-S-12 may be confirmed using the configuration
software. Start the software as described in section 4, and choose the AIN Check page as
shown in Figure 5-4.
Figure 5-4: Check the operation of the WI-I/O-EX-1-S-12 module with the AIN
Check page.
Test the digital outputs by setting the select-buttons to ON or OFF - this will force the
DO to the selected state.
DIO DIO DIO DIO DIO DIO DIO DIO ALS AI+1 AI-1 AI+2 AI-2 AI+3 AI-3 AI+4 AI-4 A ALS
1 2 3 4 5 6 7 8 Earth +24 AI 1 AI 2 AI 3 AI 4 AI 5 AI 6 AI 7 AI 8 GND +24
