WI-I/O-EX Serial I/O Module

User Manual v1.11

WI-IO-EX Manual v1.11

Page 21

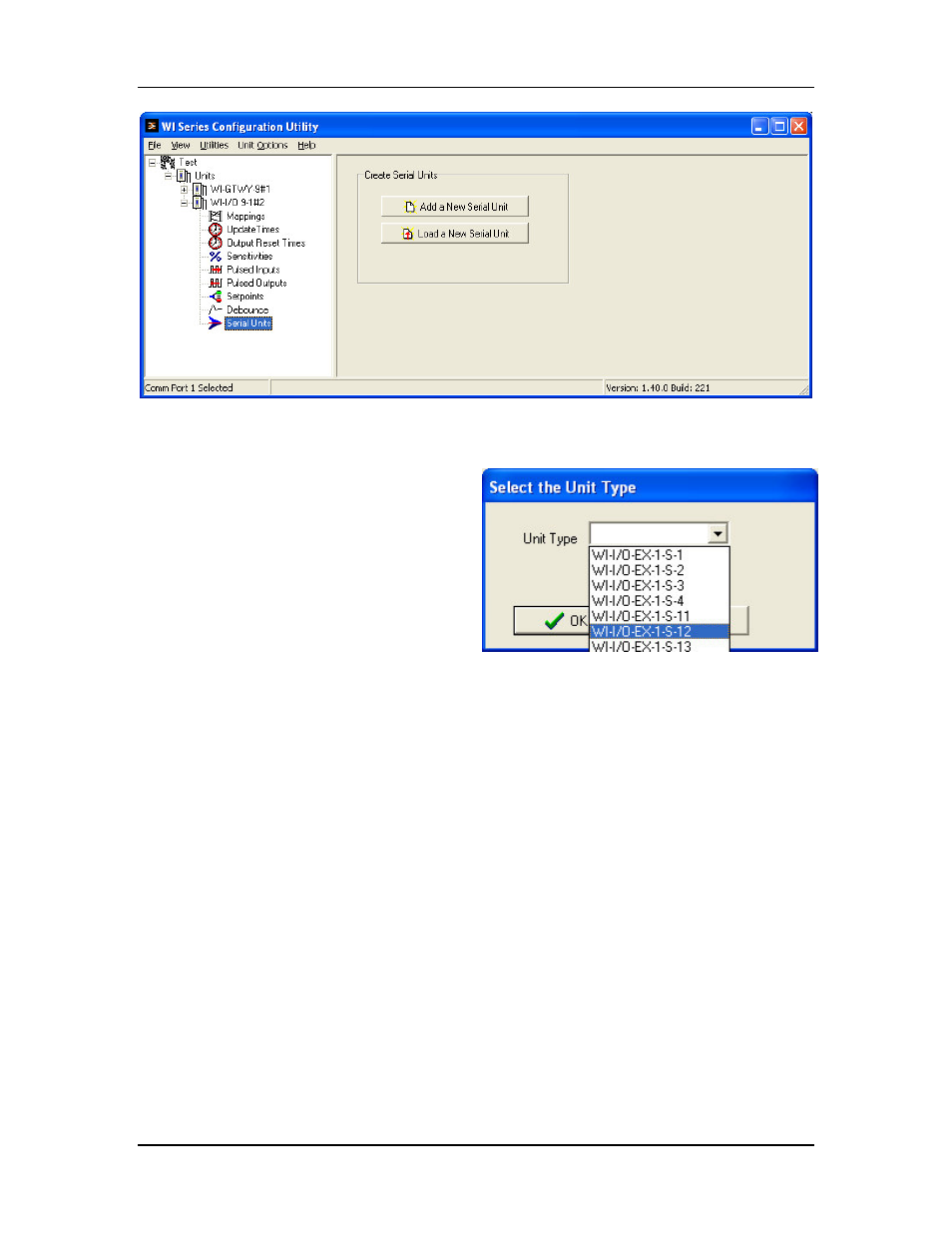

Figure 3-1: Configuration of WI-I/O-EX modules using Configuration Utility.

When you select “Add a new Serial Unit”

you will need to select the unit type. Select

the correct module type here.

Figure 3-2: Select the unit type.
