Operating Manual Light Control „PULSE HFMD - Vers. IV without MFT“ ENG
Activate function 1.2 External switching ON/OFF
LED II flashes white
LED I red
Press key II once
Activate function 1.3 Burn-In function ON/OFF
LED II flashes white
LED I blue
Press key II twice
Activate function 1.4 Write protection ON/OFF
LED II flashes white
LED I turquoise
Press key II 3 times
Activate function 1.5 Light control ON/OFF
LED II flashes white
LED I magenta
Press key II 4 times
Activate function 1.6 Presence sensor ON/OFF
LED II flashes white
LED I orange:
Press key II 5 times
Activate function 1.7 Continuous mode ON/OFF
LED II flashes white
LED I white
Press key II 6 times

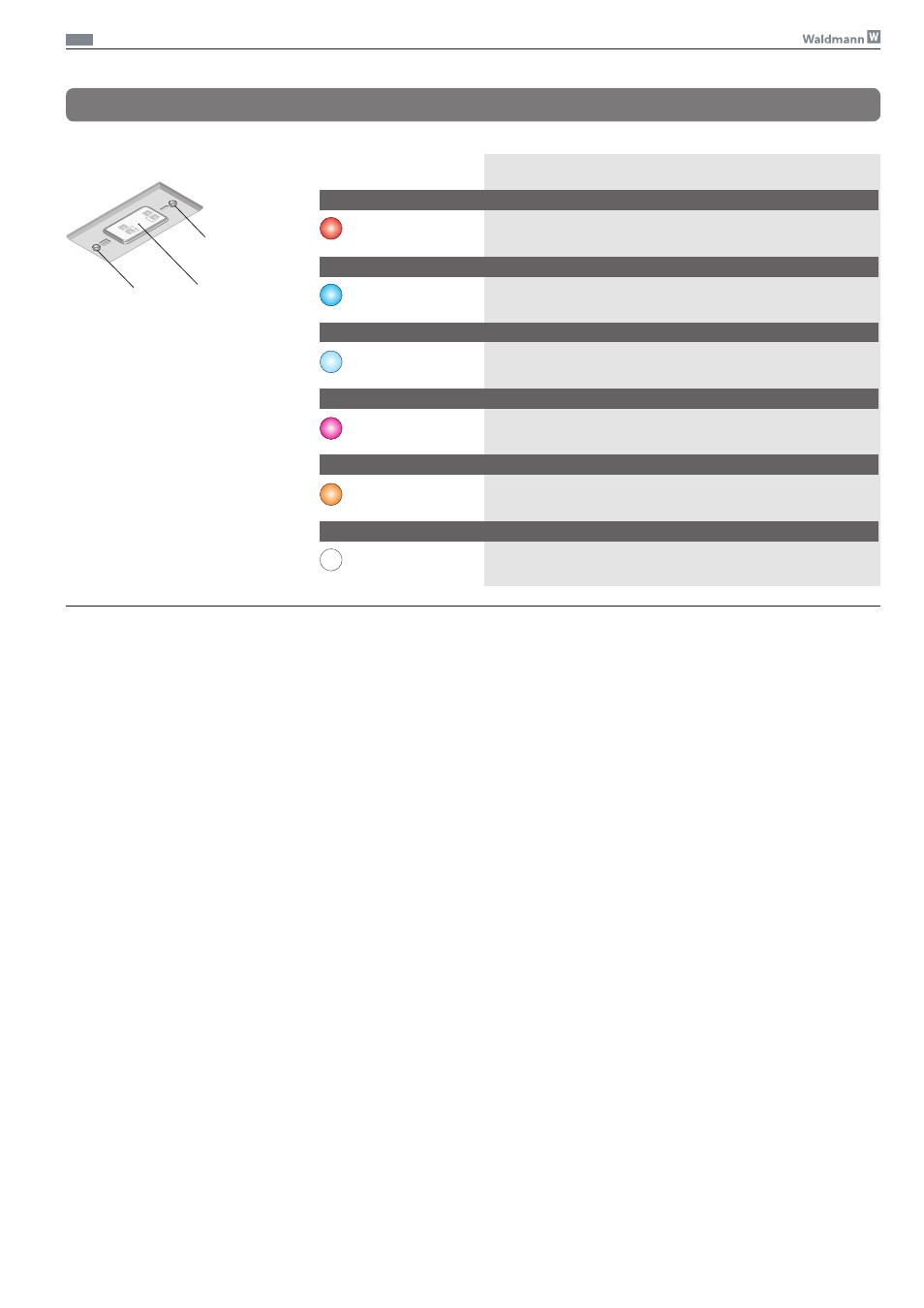

Actuation Display
Change basic settings - Setting level 1 (continued)
LED I
LED I
LED I
LED I
LED I
LED I
Fig. 4
Key I
+ LED I
Sensor Key II
+ LED II
Note: The functions written
in blue are not available.
