ColonyDoc-It Imaging Station 26

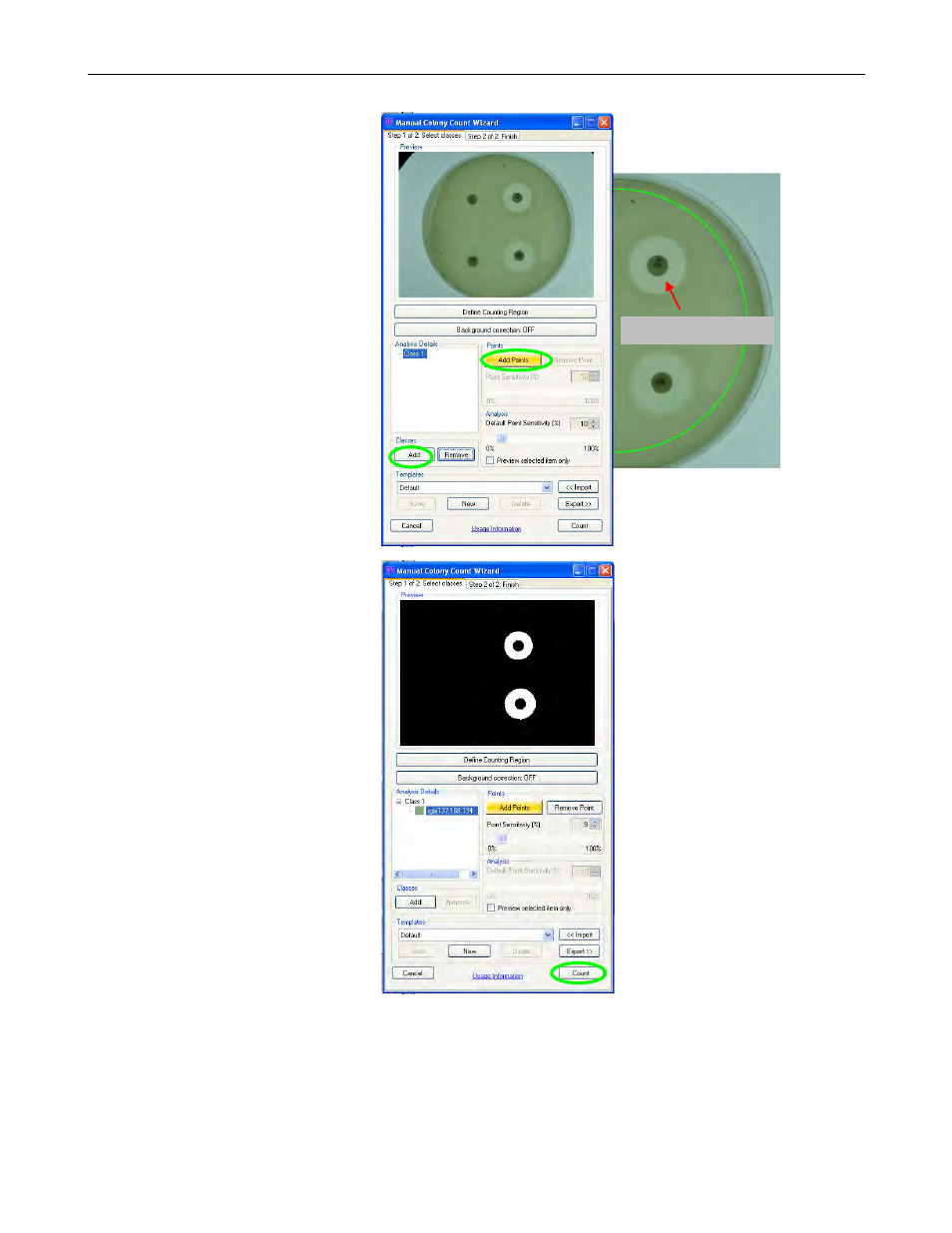

The Select Classes tab allows
users to select the number of
classes and zones in the Petri dish
sample.
To analyze the desired zones,
ensure that the Add Points button
is highlighted in yellow and click
on a zone to be counted in the
original image of the Petri dish.
(A smaller duplicate image of the
original is present in the Step 1 of
2: Select classes tab, but a zone
cannot be selected from this
image)
Classes are defined as different
types of bacteria, yeast, or mold
present on the sample. The
software can detect various types
of classes in one dish. To add a
class, click onto the Add button in
the Classes section of the window.
Once the first zone is selected, the
new image in the Step 1 of 2:
Select classes window will show
a black background along with all
of the zones that contain the same
color as the point identified in the
Analysis Details window.
Continue clicking on zones to add
points as necessary until the black
and white image shows all the
zones of interest identified in
white.
To remove points or classes from
the Analysis Details window,
highlight the point and select
Remove Point or highlight the
class and select Remove.
The Step 1 of 2: Select classes
tab allows the settings created in
this window to be saved in a user
defined template. If there are no
templates created, the drop down
menu will list Default as the only
template option. Go to the
Templates
section of this manual
for instructions on creating
templates.
Click the Count button to proceed
to the next step.
Click on a zone
