Installing the Filter
Note: Filters come as an optional accessory so this step is only necessary if an optical filter will be used with the
system.

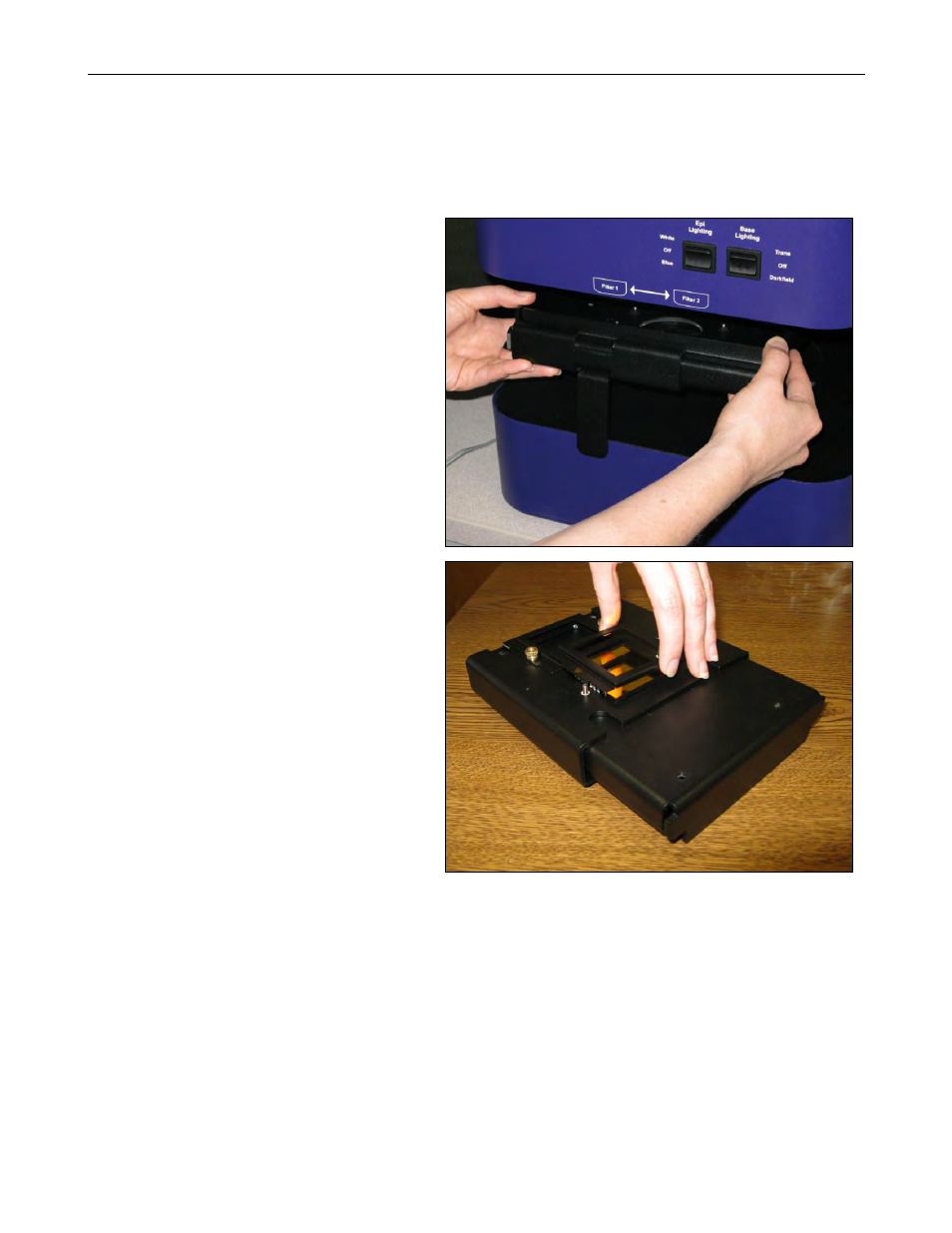

The filter trays are located in the filter box attached to the ceiling of the unit. To access the trays:
Remove the four brass thumbnuts on the
filter box and pull the filter box from the
housing.
Remove the two thumbnuts that hold the filter
frame to the filter box.
 Place the filter over the opening.
 Replace the filter frame and thumbnuts.
 Reinstall the filter box into the unit.
NOTE: It is possible to install a filter when the
filter box is installed in the unit. However,
care must be taken to avoid touching the
shiny sides of the filter.
