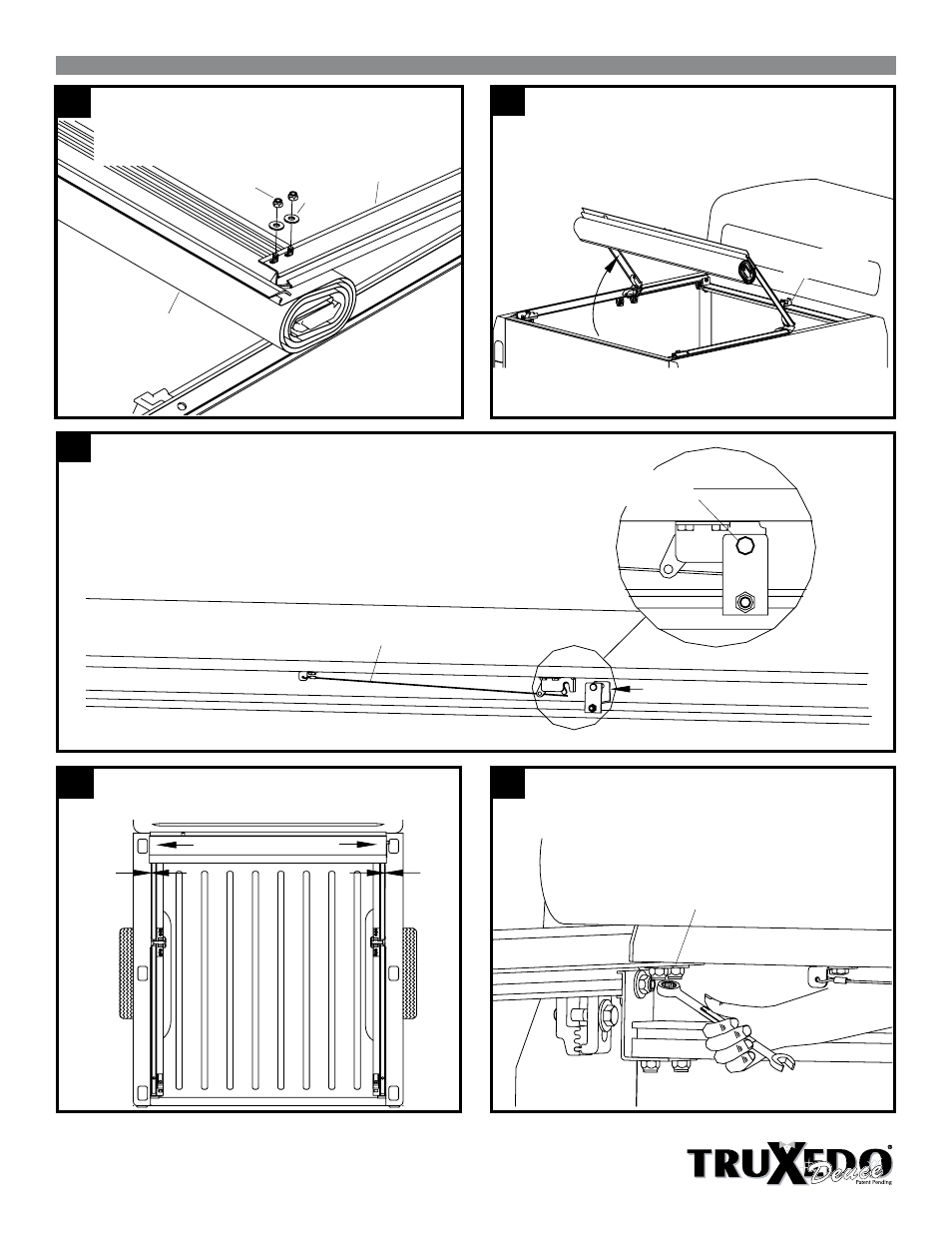

Align front rails on cover assembly and insert bolts
through slotted holes in front rail. Install washer and
hex nut. Ratchet nuts in place but do not tighten.
square up cover assembly: Position rails to
maintain even spacing with pickup.
tighten all Fasteners securely: Tighten fasteners
shown below using box end of wrench.
12 13
10
Standing inside pickup bed, carefully lift
and rotate front rails and cover assembly
closed.
align cover with pickup bed
equal
space
equal
space
5/16”
nut
cover assembly
5/16”
washer
front rail
11
Align striker pin on crossmember with rotary
lock latch on cover. Lift cover assembly slightly
and slide striker bracket to align striker pin with
rotary lock latch.
sIde RaIL and coveR InstaLLatIon (continued)
striker pin on
crossmember
pull cable to
release latch
striker pin aligned
with rotary lock latch
pull cover toward rear
of pickup before tighten
-
ing these fasteners
