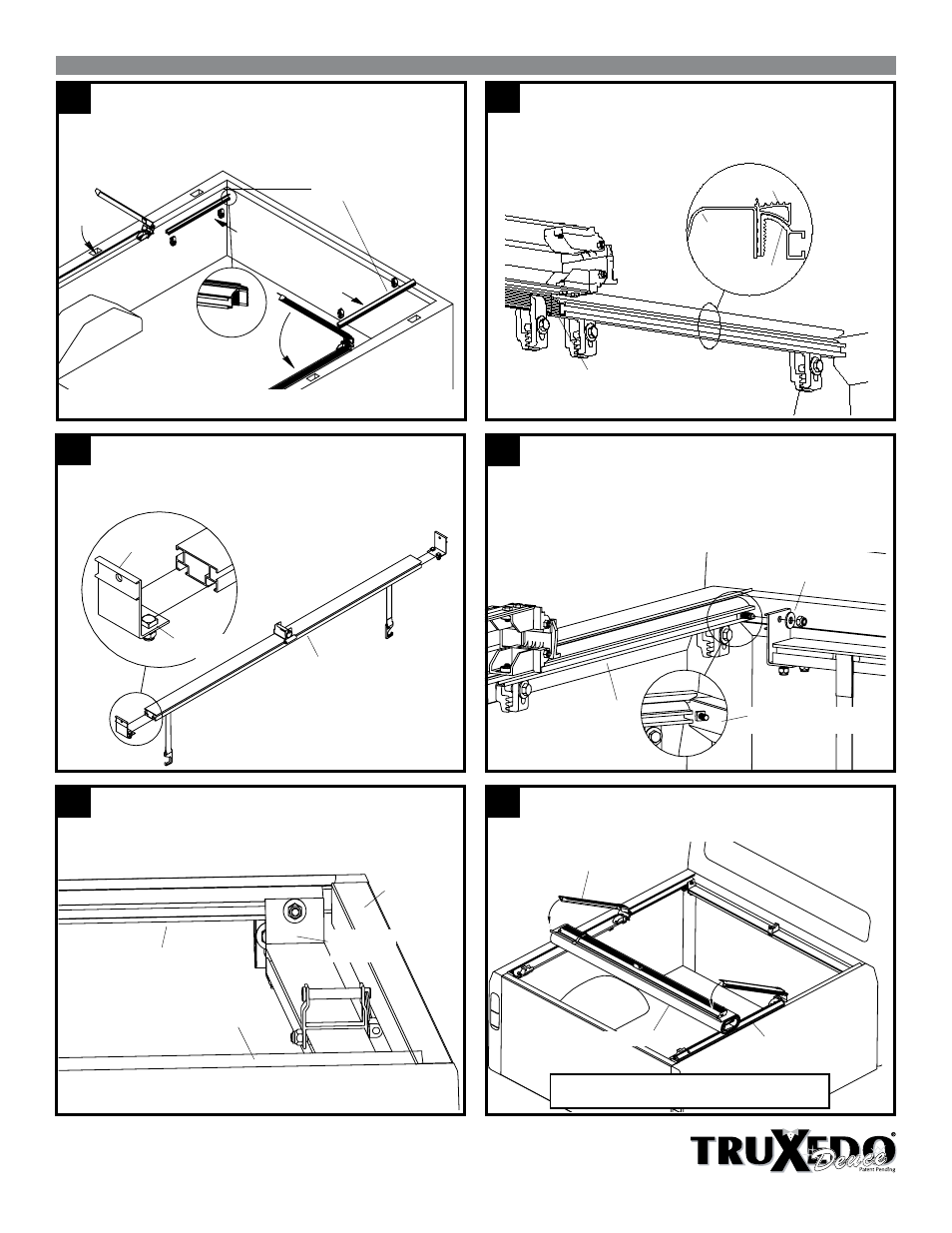

Install underbody Rails: Position underbody rails
flush with Truxedo ® Deuce side rails as shown.
Clamp underbody rails to pickup bed.
Install underbody Rails: Fold back hinged
portion of side rails, and stand inside pickup
bed to install underbody rails.
underbody
rails
fold
back
underbody rail
assemble side Brackets to crossmember: Insert square
bolt heads into crossmember channels. Lightly
snug up bolts but do not tighten.
side
bracket
crossmember
square
head bolt
flush
weather seal
pickup
side rail
align weather seal
arc slightly higher
than pickup rail
assemble crossmember to underbody Rails: Insert
square bolt head into channel on underbody
rail. Fasten one end of crossmember assembly
to bolt with flat washer and lock nut. Repeat
on opposite side of pickup.
underbody rail
crossmember
assembly
insert square bolt
head into channel
underbody rail
Set cover assembly on top of side rails and
rotate front rails back as shown.
Release lever must be on driver’s side.
front
bulkhead
front rail
cover assembly
side rail
sIde RaIL and coveR InstaLLatIon (continued)
Align crossmember side bracket close to
front of pickup bed. Make sure crossmember
does not rub against front bulkhead.
tighten all fasteners at
ends of crossmember
.
do not tighten this
fastener
3 4
5 6
7 8
crossmember
side bracket
