nissan TiTan bed exTender insTallaTiOn
P/N 1116308 Rev. A

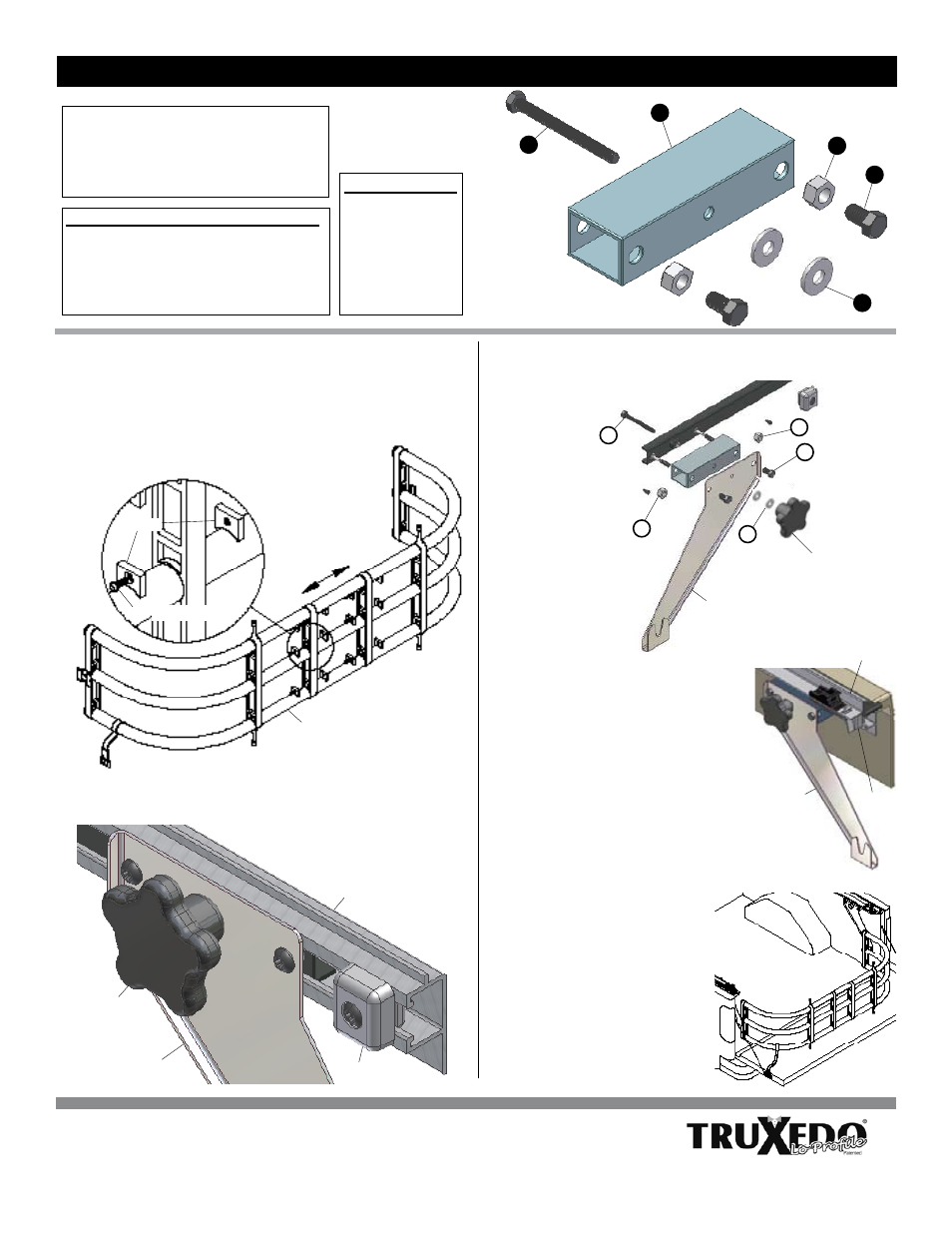

STEP 1: Adjust Width of Bed Extender Cage: Open tailgate and
remove bed extender cage. Measure and record width
of cage. Using a #20 torx wrench, loosen torx bolts from
wedges. Pry wedges loose and slide tubes together, so
that cage is 4” narrower than it was originally. Replace
wedges and retighten torx bolts.
STEP 2: Remove Stop Blocks & Carriage Brackets: Remove
stop blocks. Loosen thumb nut and remove carriage
brackets from Utili-track channels.
STEP 4: Replace Carriage Brackets:
Slide carriage bracket
assemblies into Utili-track
channels. Re-install rear
stop blocks and bed extender
cage, following manufacturer’s
instructions.
2
1 3
4
STEP 5: Final Adjustments:
Rotate bed extender
cage to rest on
tailgate. Adjust length
of safety strap and
re-fasten to tailgate.
Make sure all bolts
are tightened, and bed
extender operates
correctly.
STEP 3: Install Spacers: Disassemble carriage brackets. Re-
assemble as shown.
Follow these instructions to install a
bed extender on your Nissan Titan
pickup. Refer to Owner’s Manual for
complete installation instructions.
bed extender cage
#20
torx bolt
sli
de
tub
es
to
ge
the
r
4”
carriage
bracket
utili
-
track
channel
thumb
nut
carriage bracket
4
3
1
2
spacer
wedges
utili
-
track channel
stop
block
carriage bracket
thumb nut
stop block
5mm Allen Wrench
#5 Torx Wrench
#10 Torx Wrench
#20 Torx Wrench
10mm Hex Wrench
5/8” Wrench
11/16” Wrench
Tools Required:
1. 1703701 Nylon Lock Nut, 7/16”
2. 1703700 Cap Screw, 7/16” x 3/4”
3. 1703801 Cap Screw, Metric, M8 x 1.25 x 90mm
4. 1703699 Tube Spacer
5. 1700428 Flat Washer, 5/16”
Item Part # Description
5
