TruXedo Deuce 2 Clamp Extension - Manual

Deuce side rails shown,
other TruXedo side rails
may also apply.
Tighten clamp assemblies
securely on side rails before
driving vehicle.
TruXedo ® deuce 2 clamp eXTension

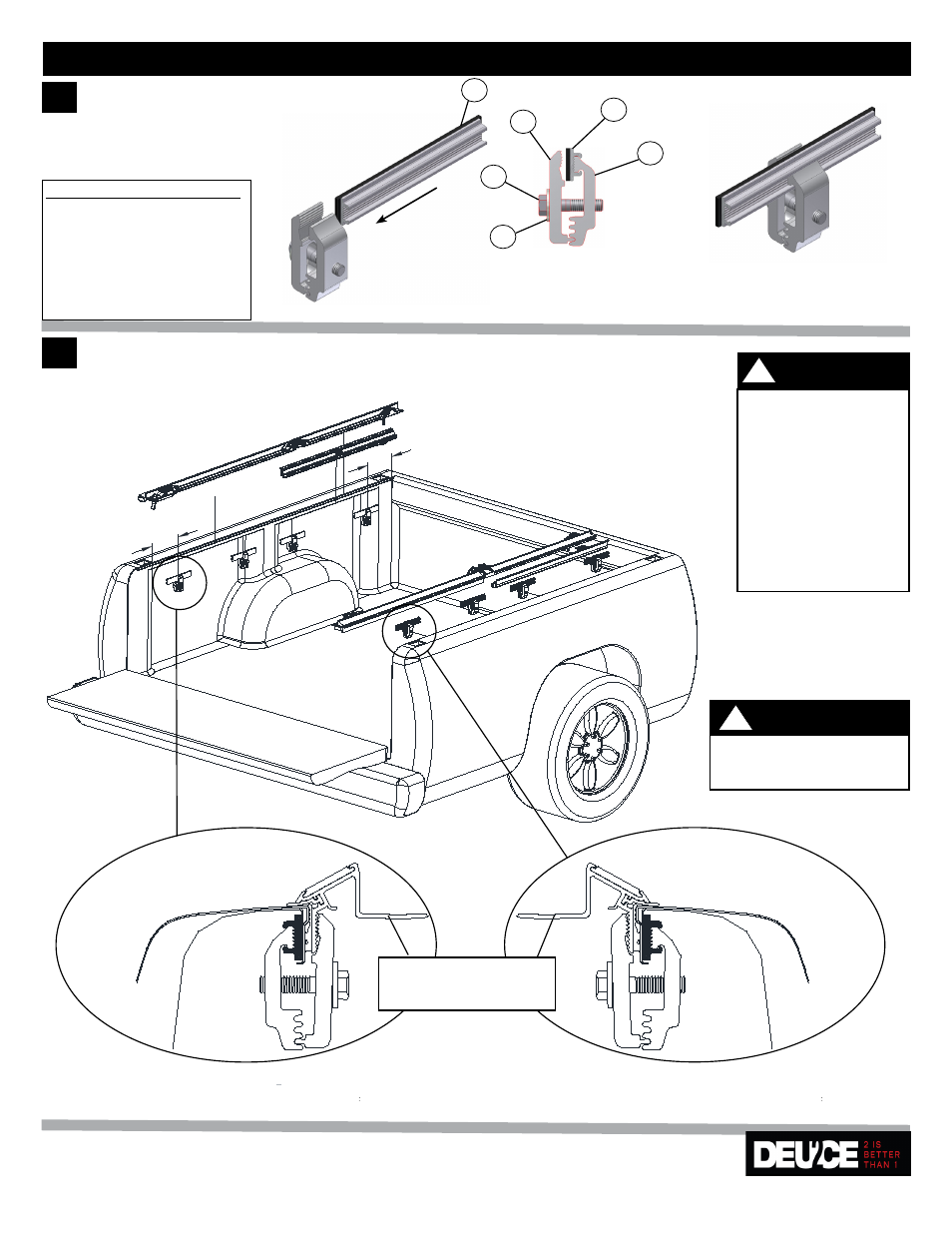

Slide clamp extension on to the female clamp
half.
End View Clamp Extension
Assembled and Centered
On Clamp.
by TruXedo, inc.
P.O. Box 1078, 2209 Kellen Gross Dr., Yankton, SD 57078
Phone: 877- 878-9336 • Fax: (605) 664-9304 www.truxedo.com
P/N 1117779 Rev. A
1
1. 1700429 Flat Washer, 3/8”
2. 1700369 Cap Screw, 3/8”
3. 1703254 Male Clamp
4. 1703253 Female Clamp
5. 1117577 Clamp Extension
(1115191 Assembled Clamp)
Item Part # Description
5
4
2
With Deuce side rails held in place attach clamp assemblies to the truck box and
Deuce side rails.
driver side
5
3
passenger side
1
2
View showing clamp and extension correctly
attached to the driver side TruXedo rail and
truck box.
View showing clamp and extension correctly
attached to the passenger side TruXedo rail
and truck box.
Note: If your truck has
aftermarket or factory
side rail protectors, use
plastic shims, part number
1117124. Failure to do so
may cause side rail to not
sit level and or could cause
damage to the vehicle.
Contact customer sevice for
information regarding shim
kit 1117124.
cauTion
!
cauTion
!
Refer to steps 1-3 in the
Deuce 2 owners manual
for more information about
installing Deuce Side
Rails.
8”
14”
