TerraWave TW-HC-MIMO User Manual
Page 8
www.terrawave.com
Email:
Phone: 210-375-8482 Fax: 210-375-8382 10521 Gulfdale, San Antonio, TX 78216
Version 1.0 Page 8
2. Body of Enclosure with Customer Provided Bolts
Tips:
This method can be used if the customer has a hard cap ceiling with studs 16” on
center. The inside of the enclosure body should be supported to prevent bending
the body of the enclosure when knocking out the punch-out holes for each
supporting stud bolt. Also, consider the positioning of the enclosure in
relationship to the door swing and rafter direction for easy and convenient access
to the contents inside the enclosure once installed and when opened.
a. Knock out two of the four laser perforated, circular punch-out holes in the sides of the enclosure
body – one directly across from the other (reference Figure 9).
b. Depending on the material the studs are of made of, insert two customer-provided wood or
sheet metal screws inside the newly cut holes within the body of the enclosure*.
*Please note that these screws are not included in the enclosure components. TerraWave
recommends using 3/8” wood or sheet metal screws.
c. Secure the enclosure to the studs ensuring the face of the enclosure is flush with the ceiling
surface.
8. The large perimeter opening facilitates component installation, maintenance or conversion.
9. Excellent value. Superior quality at exceptional pricing.
TerraWave Part Number: TW-HC-MIMO
20” x 20” x 8” Ceiling Tile Enclosure with Turn Lock
List Price: $227.20
TerraWave Part Number: TW-HC-MIMO-L
20” x 20” x 8” Ceiling Tile Enclosure with Lock
List Price: $239.70

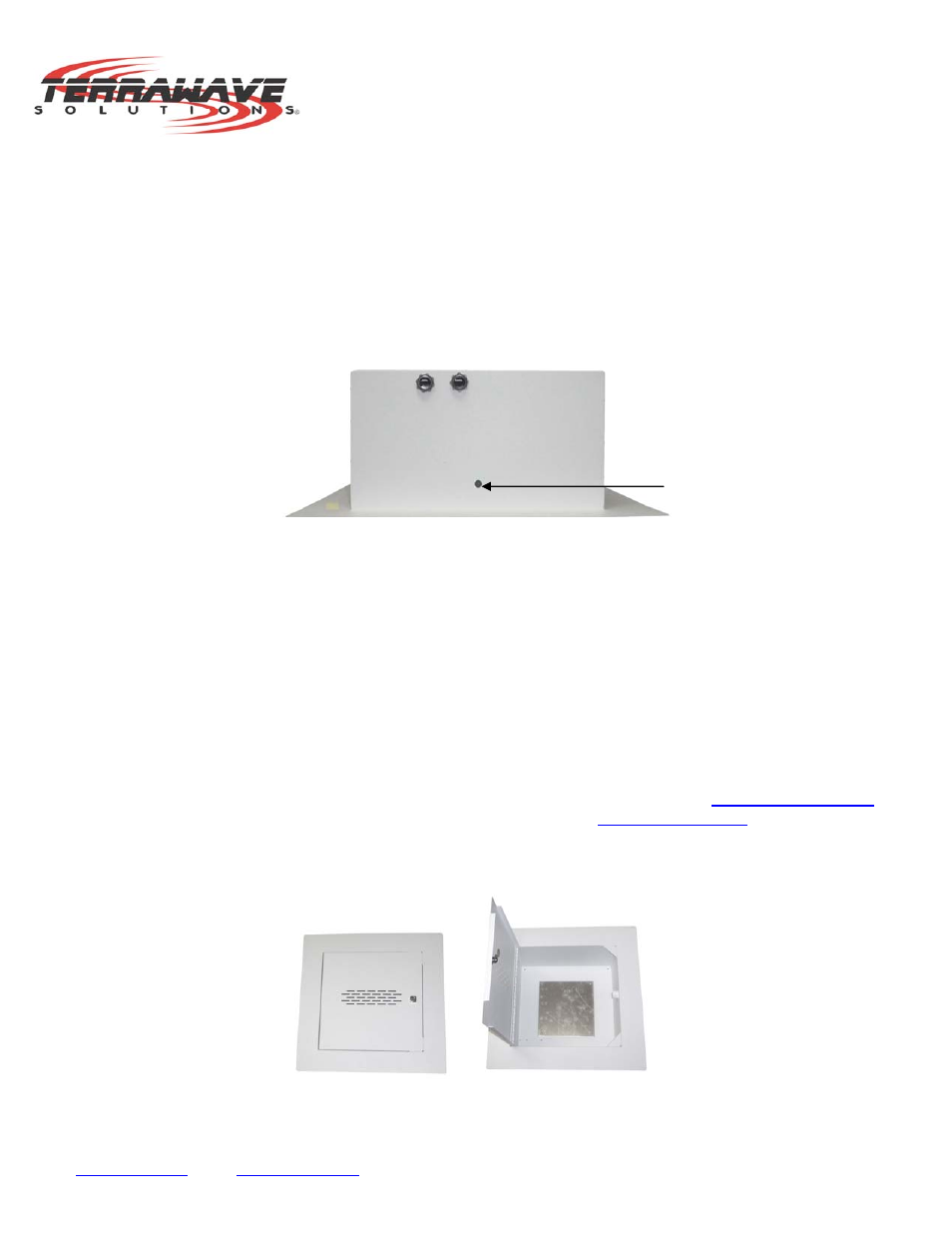

Punch-Out Hole in Body of Enclosure
Figure 9
TerraWave 20x20x8 MIMO Ceiling Tile Enclosure
Displayed with Door Closed and Open
For detailed product information and to
purchase product, please contact a wireless
networking solutions sales engineer at 210-375-
8482, 800-851-4965,
or
visit
www.terrawave.com
.
