5. Each enclosure door includes laser perforated punch-out holes to support the following types of antennas
while hiding cables (reference Figure 3).
o
TIP:
The inside of the door should be supported to prevent bending the door wall when
knocking out the punch-out holes for each antenna.

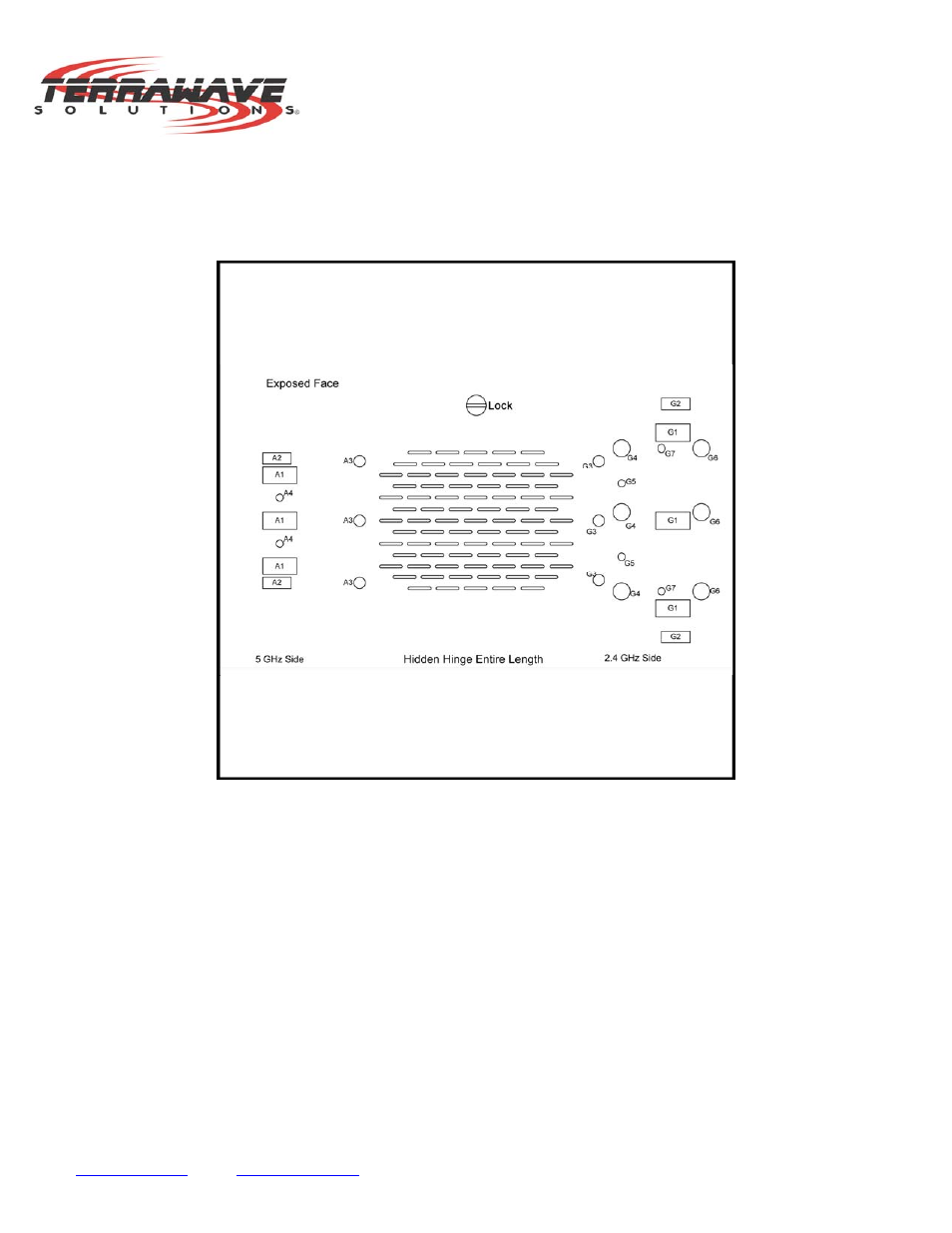

Figure 3 - Hole Usage Chart
TIP:
Remove ceiling tile clips on any TerraWave antenna that includes them so the antenna will lie flush
once installed on enclosure door.
A1 & A2 – Cisco Low Profile 5 GHz Omni “Three-Pack”
A1 & A4 – TerraWave Low Profile 5 GHz Omni “Three-Pack”
A3 & G3 – Bulkhead Extenders for Rubber Duck or Unity Gain Antennas
G4, G6 & G7 – TerraWave Low Profile 2.4/5 GHz Omni “Six-Pack”
G4 & G5 – TerraWave Low Profile 2.4 GHz Omni “Three-Pack”
G1 & G2 – Cisco Low Profile 2.4 GHz Omni “Three-Pack”
Supported Antennas for Laser Perforated Punch-Out Holes
802.11n Ceiling Mount MIMO Omnidirectional Antennas
• TerraWave 802.11n 2.4/5 GHz 2.5/4.5 MIMO Ceiling Mount Omni Antenna with RPTNC Plug
Connectors
(TESSCO SKU: 301357; TW Part Number: M6025045MO13602
(List continues on next page)
