Introduction
TerraWave's 20” x 20” x 8” 802.11n multiple-input, multiple-output (MIMO) hard cap ceiling enclosure contains
and protects an 802.11n MIMO access point (AP) in an aesthetically pleasing and stealthy solution within a hard
cap ceiling, such as metal, sheet rock, stucco or wood. Once installed, the enclosure is conveniently secured
and flush with the hard cap ceiling.
This enclosure is specifically designed to support any TerraWave or Cisco 802.11n MIMO omnidirectional
antenna. The enclosure may also be deployed with any TerraWave or Cisco 2.4 GHz and 5 GHz single band or
2.4/5 GHz dual band rubber duck antennas (quantity three for 2.4 GHz and quantity three for 5 GHz)*. For
detailed product information and to purchase product, please contact a wireless networking solutions sales
engineer at 210-375-8482, 800-851-4965,
or visit
www.terrawave.com
.
*Purchasing additional jumpers is required (TESSCO SKU: 310402; TerraWave Part Number: 100-02RA-03-P18L).
TerraWave is the primary manufacturer in the industry to offer such cutting-edge products for wireless
networking deployments.
Descriptions and Included Components
TESSCO SKU: 373032
TerraWave Part Number: TW-HC-MIMO
20” x 20” x 8” MIMO Hard Cap Ceiling Enclosure with Turn Lock
(Door Closes and Opens with a Flat-Head Screw Driver)
TESSCO SKU: 363134
TerraWave Part Number: TW-HC-MIMO-L
20” x 20” x 8” MIMO Hard Cap Ceiling Enclosure with Key Lock
(Door Closes and Opens with a Key)
Each Enclosure Includes:
-
(1) Hard Cap Ceiling Enclosure
-
(1) Universal Interior Mounting Plate
-
(4) 3/8” Toggle Bolts
-
(1) Bag of Enclosure and Wireless Product Installation Hardware
-
(1) Standard Door Turn Lock (Model: TW-HC-MIMO)
-
(1) Durable Key Lock (Model: TW-HC-MIMO-L)

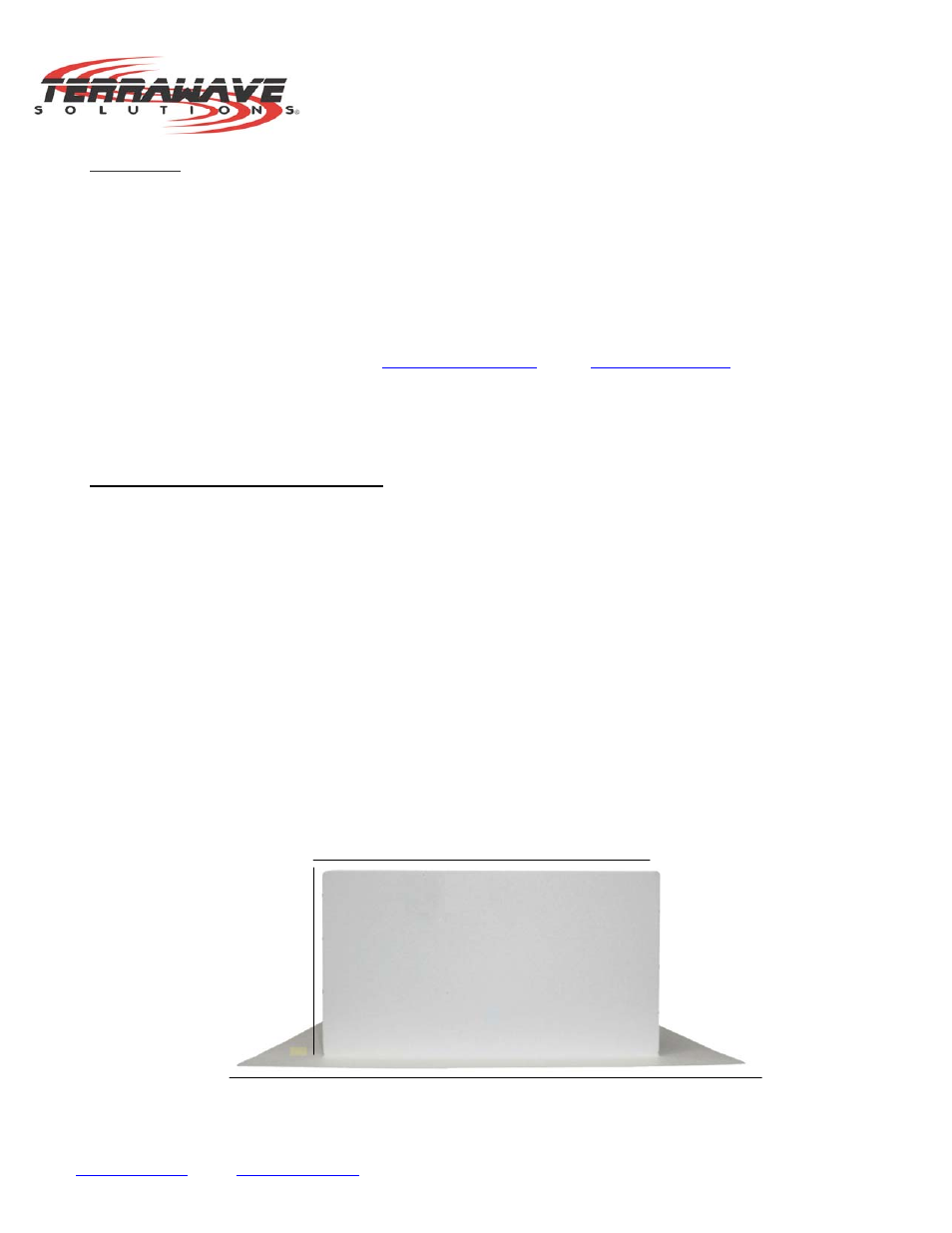

Dimensions
8”
20.5”
14.5”
