C. Securing
the
Enclosure
Tip:
This enclosure is designed to be installed in a hard cap ceiling by two separate methods.
Also, consider the positioning of the enclosure in relationship to the door swing for easy and
convenient access to the contents inside the enclosure once installed and when opened.
1. Corners of Face Plate with Supplied 3/8” Toggle Bolts
a. Installation requires cutting a 14.5” x 14.5” square hole in hard cap ceiling.
b. Knock out the laser perforated, circular punch-out holes in corners of face plate
(reference Figure 6).
TIP:
The underside of the lip of the face plate should be supported to prevent
bending the door wall when knocking out the punch-out holes for each antenna.
c. Hold enclosure up to the ceiling. Mark the location of where the holes will need to be drilled in
the ceiling to install the enclosure. Drill four 1” holes into the marked locations on the ceiling.
d. Insert toggle bolts into the newly cut holes in the face of the enclosure.
e. Screw bolts into ceiling. The toggle will reopen once the bolts have passed through both the
face of the enclosure and ceiling material. All of the weight of the enclosure and its contents
rest on each toggle bolt head. The top of each bolt head is powder coated to blend with the
enclosure for aesthetics (reference Figure 7).

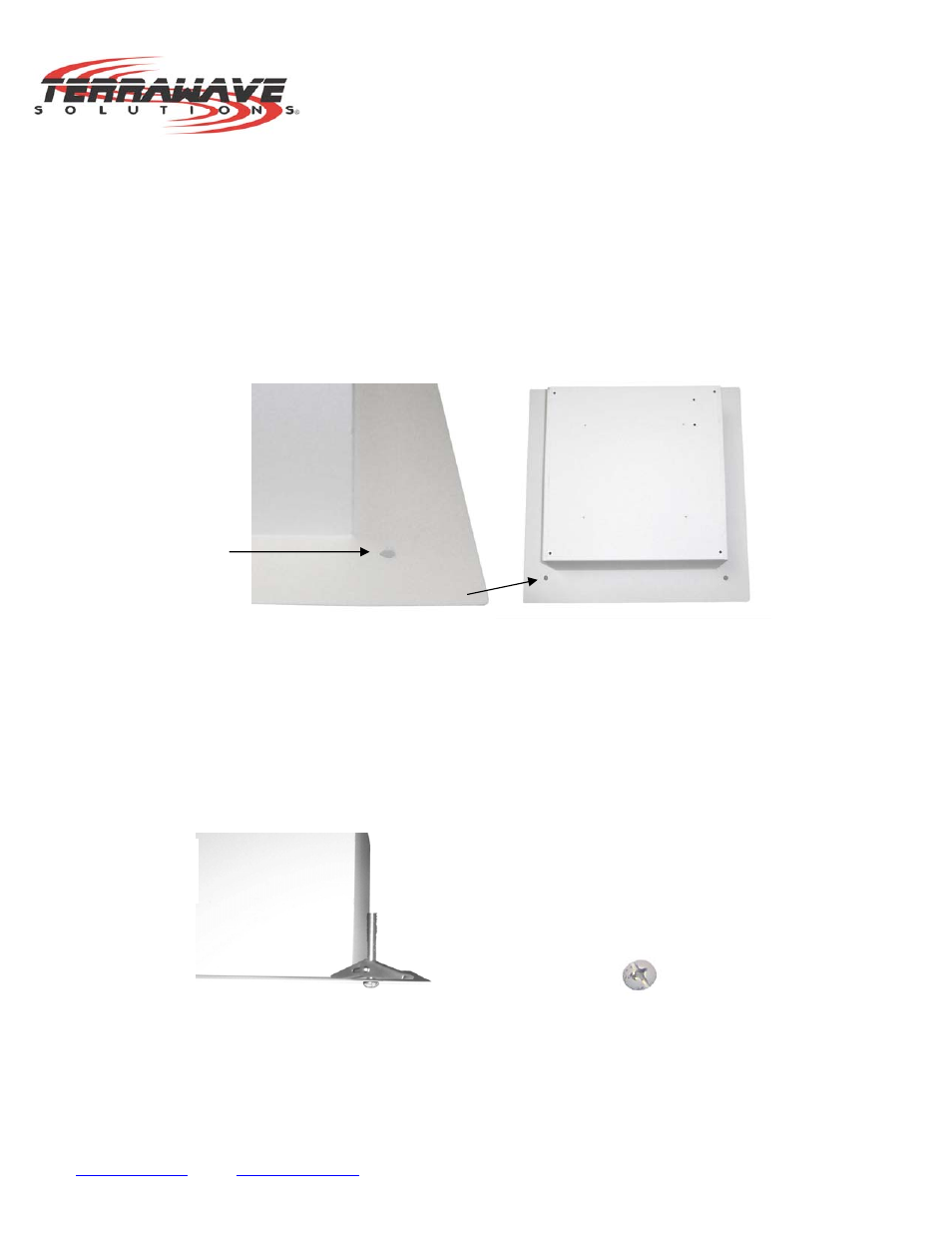

Figure 6
Punch-out Holes on Face of Enclosure
Figure 7
Toggle Bolt – Powder Coated Head
Installed Toggle Bolt
in Enclosure
