Version 1.0 Page 6
• TerraWave 4.9-5.8 GHz 2 dBi Surface Mount Omni—Black
(TESSCO SKU: 450970; TW Part Number: T58010M11502B)
• TerraWave 4.9-5.8 GHz 2 dBi Surface Mount Omni—White
(TESSCO SKU: 464926; TW Part Number: T58010M11502W)
6. Once the enclosure and AP are installed, the AP is protected and hidden from view, in a solution that is
flush with the hard cap ceiling.
7. Installation
Considerations
A. Stage the Unit
• Determine which antennas will be used and what punch-out holes in the door should be knocked
out. (Please see list of antennas supported in the previous section.)
• Determine which AP will be installed inside the enclosure. (Note that this particular enclosure is
specifically designed for the Cisco 1252 AP or Motorola 7131 AP.)
• Consider cable management. Cable may be neatly positioned in the enclosure using customer
provided zip ties and zip tie mounting pads (reference Figure 4).

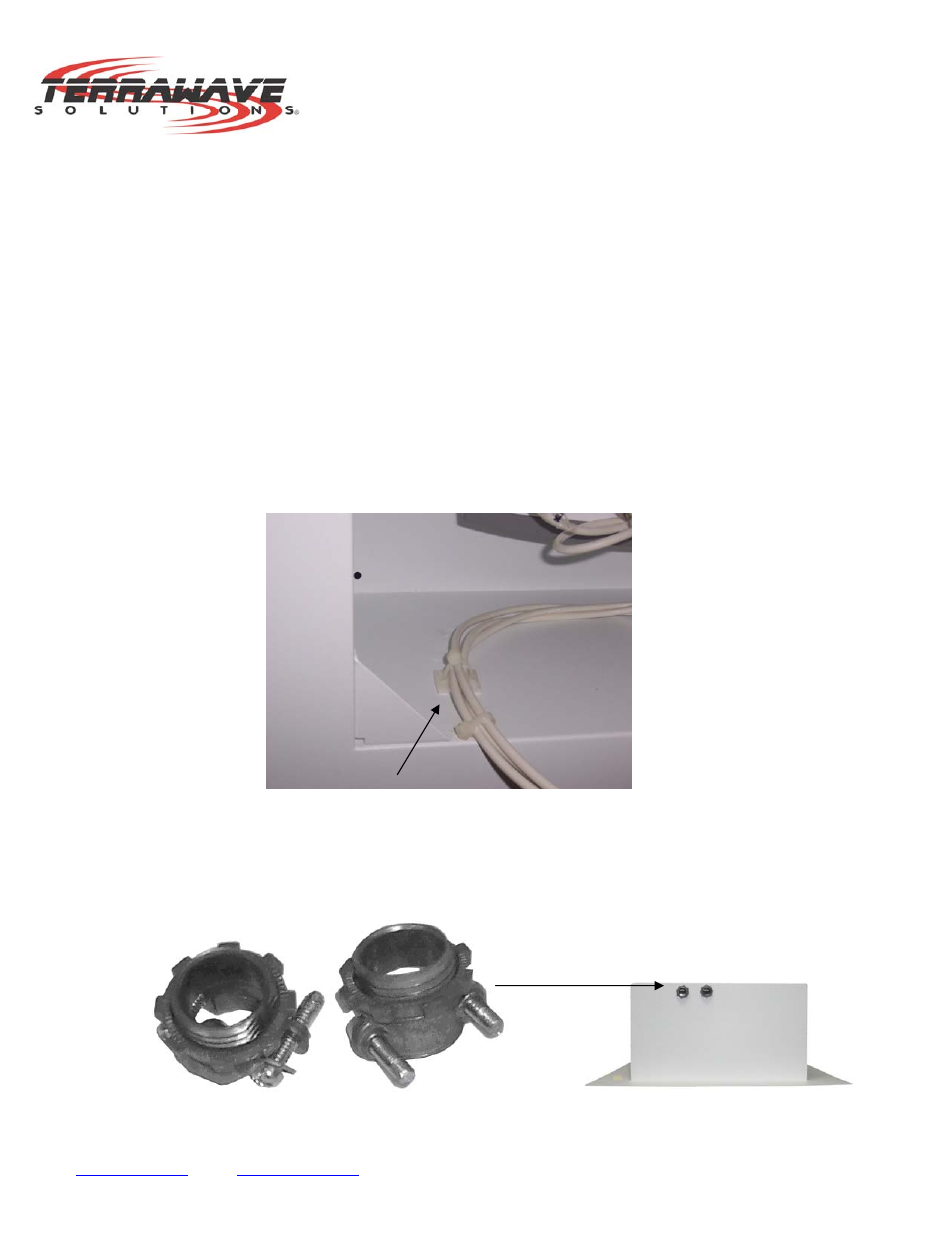

Figure 4
B. Install the cable conduit glands on the enclosure to secure cable to the inside and outside of the
enclosure once installed (reference Figure 5).
Cable is neatly secured within the enclosure
with zip ties and zip tie mounting pads.
Cable Conduit Glands
Installed Conduit Glands
Figure 5
