Regency Horizon HZI540PB Large Gas Insert - Manual (Page 33)

L540PB-2 / HZI540PB-2 Direct Vent Gas Insert
33
INSTALLATION

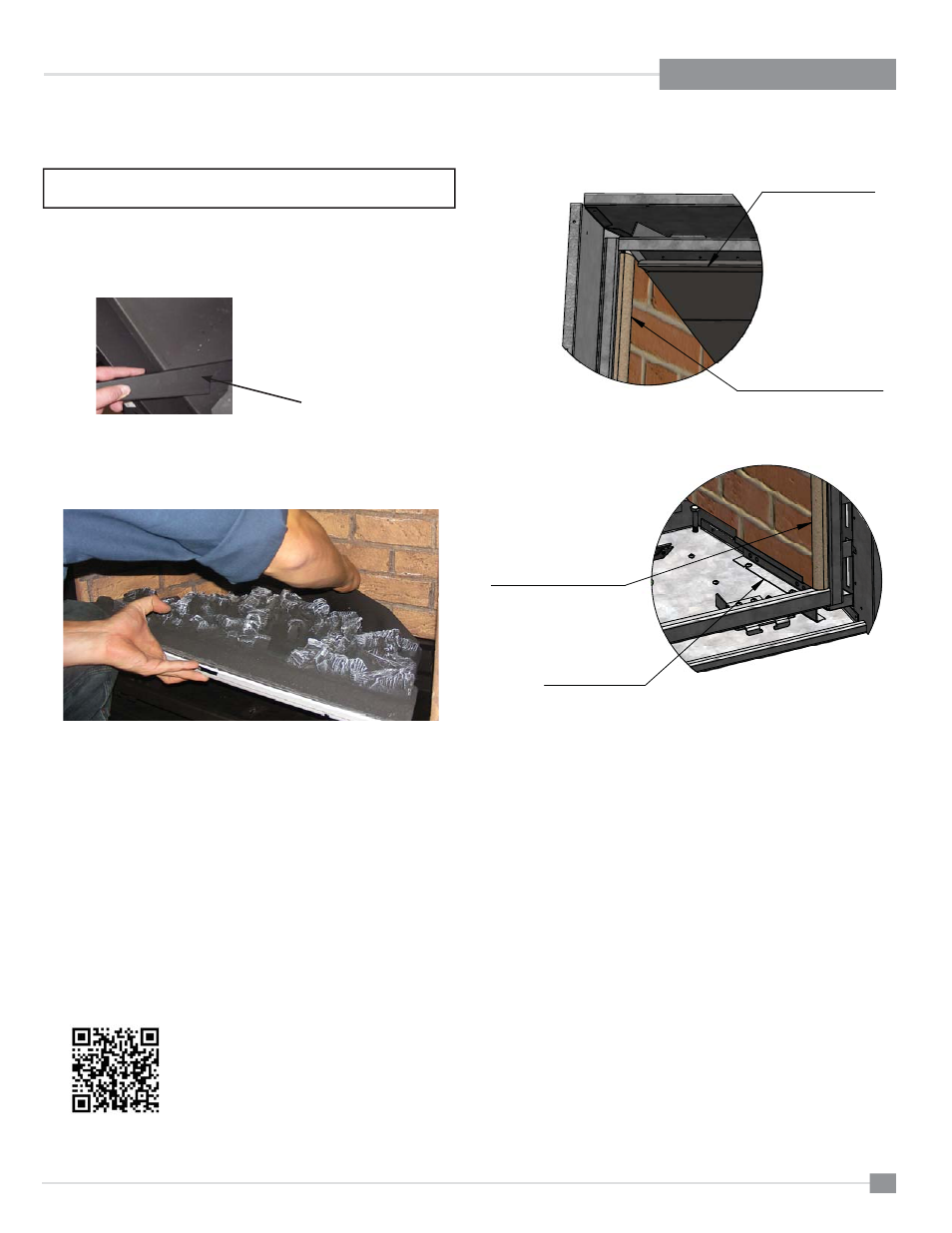

L540PB Brick Panel Installation
Video
BRICK PANEL INSTALLATION
Brick panels are soft and fragile. Use caution when handling the panels,
being careful not to jar them or scratch the painted surfaces.
7) Once one Brick Panel is installed, you can release the Brick Panel Rear.
The side Liner will hold the rear Liner in place. Install the Brick Panel Left
the same way you installed the Brick Panel Right. Both side liners should
be just slightly back from the front edge of the Firebox.
8) Snug the Brick Panel Retainers up against the Brick Panel Left & Right.
Using a screw driver, secure the screws that hold down each retainer.
9) Reinstall burner - see ceramic burner installation section in manual.
Upper Left of Firebox
Exhaust Baffle
Firebox Liner Left
Lower Right of Firebox
Firebox Liner
Retainer (x2)
Firebox Liner Right
3) Using a screw driver, loosen the fasteners holding the Brick Panel Re-
tainers and move them towards the center of the fi rebox. -see Diagram 1.
4) Remove the brick panels from their packaging. Inspect them prior to
installation to make sure they haven`t been damaged during shipping.
5) Install the rear brick panel, by placing it against the rear of the fi rebox.
The bottom of the brick panel rests on a small sheet metal lip, just above
the air intake at the bottom rear of the Firebox. You will need to hold this
panel in place while you install the right brick panel. Do not let go of the
panel or it may fall forward and be damaged.
6) While holding the rear brick panel in place, slide the right along the side
of the fi rebox toward the rear of the fi rebox. Each side Brick Panel will
sit upon a Brick Panel Retainer and the top will be held between the
Exhaust Baffl e and the side of the fi rebox.
2) Lift the Burner slightly while pulling forward to clear the mixing tube.
1) Remove fi ller sections from right and left sides of the burner and discard
- see below.
Filler section
