L540PB-2 / HZI540PB-2 Direct Vent Gas Insert

19

INSTALLATION

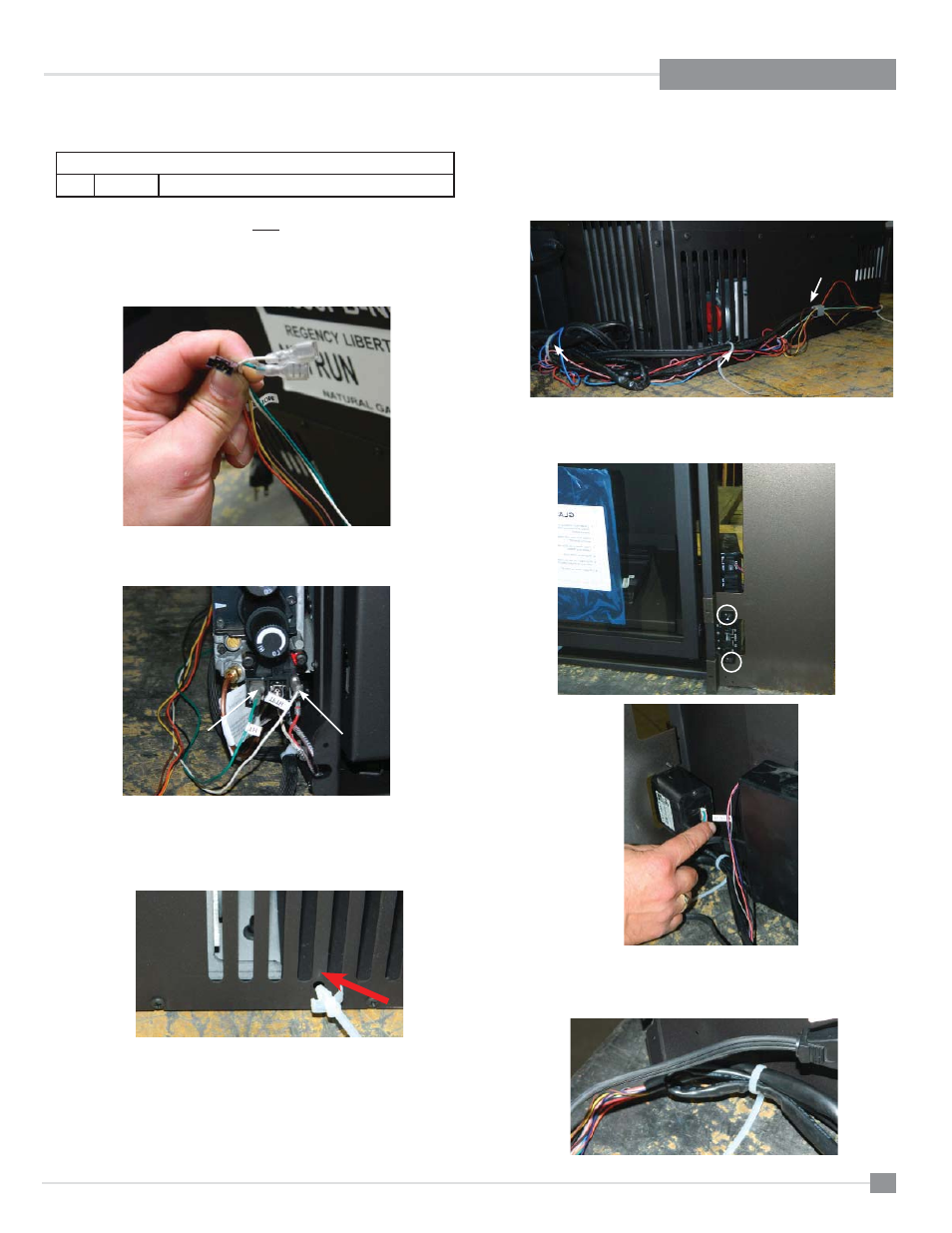

GT REMOTE CONTROL INSTALLATION

Note: GT remote control installation must be completed prior to the unit

being installed.

1. Bring the TH, TPTH, and Stepper motor wires around back of the unit to

the left side - where the valve is located.

GT Remote Receiver Components

1

946-680

GT remote control

2. Connect the TH/TP-TH wires from the harness to the valve terminals also

marked TH/TP-TH - locations as shown below.

3. Secure cable ties to the unit as shown by inserting cable ties into round

holes. There will be a total of 4 cable ties that need to be inserted into the
holes. (2 on the back and 2 on the right side located on the lower side of
the fi rebox).

TPTH Wire

TH Wire

Secure wires with cable ties installed in previous step.
Additionally secure wires with a wire clip to be installed in location show

below.

Cable Tie

Wire Clip

Left

Right

Cable Tie

Cable Tie

4. Install receiver onto backing plate with 2 screws and plug in receiver

wires.

5. Bundle excess receiver wire using the 4th cable tie and secure to the

front right of the fi rebox as shown below.
