20

L540PB-2 / HZI540PB-2 Direct Vent Gas Insert

INSTALLATION

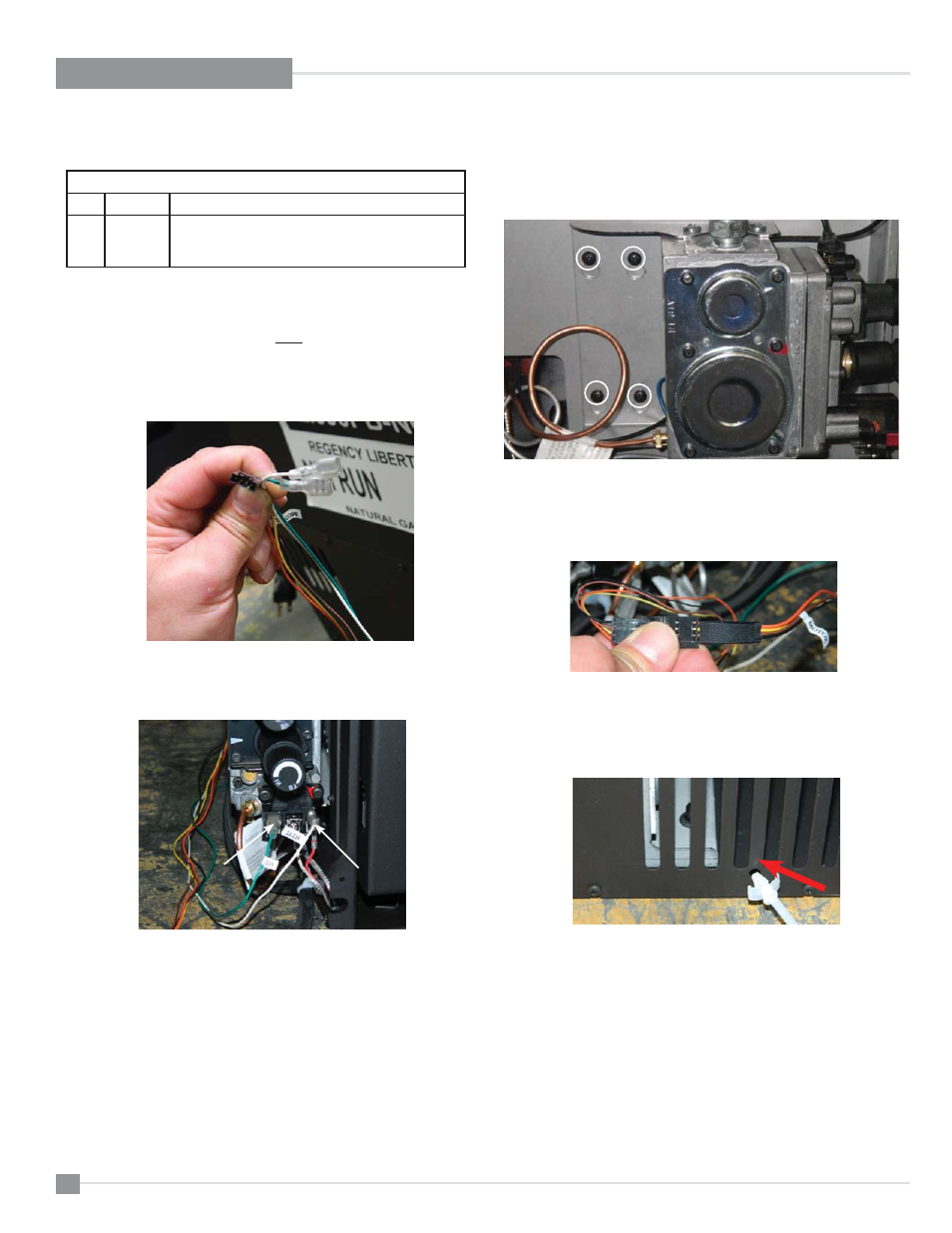

GTM REMOTE CONTROL INSTALLATION

Note: GTM remote control installation must be completed prior to the unit

being installed.

1. Bring the TH, TPTH, and Stepper motor wires around back of the unit to

the left side - where the valve is located.

GTM Remote Receiver Components

1

946-681

GTM remote control

1 946-683

(or)
946-984

Stepper Motor (NG)

Stepper Motor (LP)

2. Connect the TH/TP-TH wires from the harness to the valve terminals also

marked TH/TP-TH - locations as shown below.

3. Install stepper motor (installation instructions provided by SIT) - reinstall

valve.

6. Connect the stepper motor wire (marked stepper) from the harness into

the stepper motor wire on the motor.

9. Secure cable ties to the unit as shown by inserting cable ties into round

holes. There will be a total of 4 cable ties that need to be inserted into the
holes. (2 on the back and 2 on the right side located on the lower side of
the fi rebox).

TPTH Wire

TH Wire

4. Valve must be removed to install stepper motor - loosen 4 screws that

secure the Gas Valve Mounting bracket, slide bracket up to release.
