FPI P36-4 Zero Clearance Direct Vent Gas Fireplace

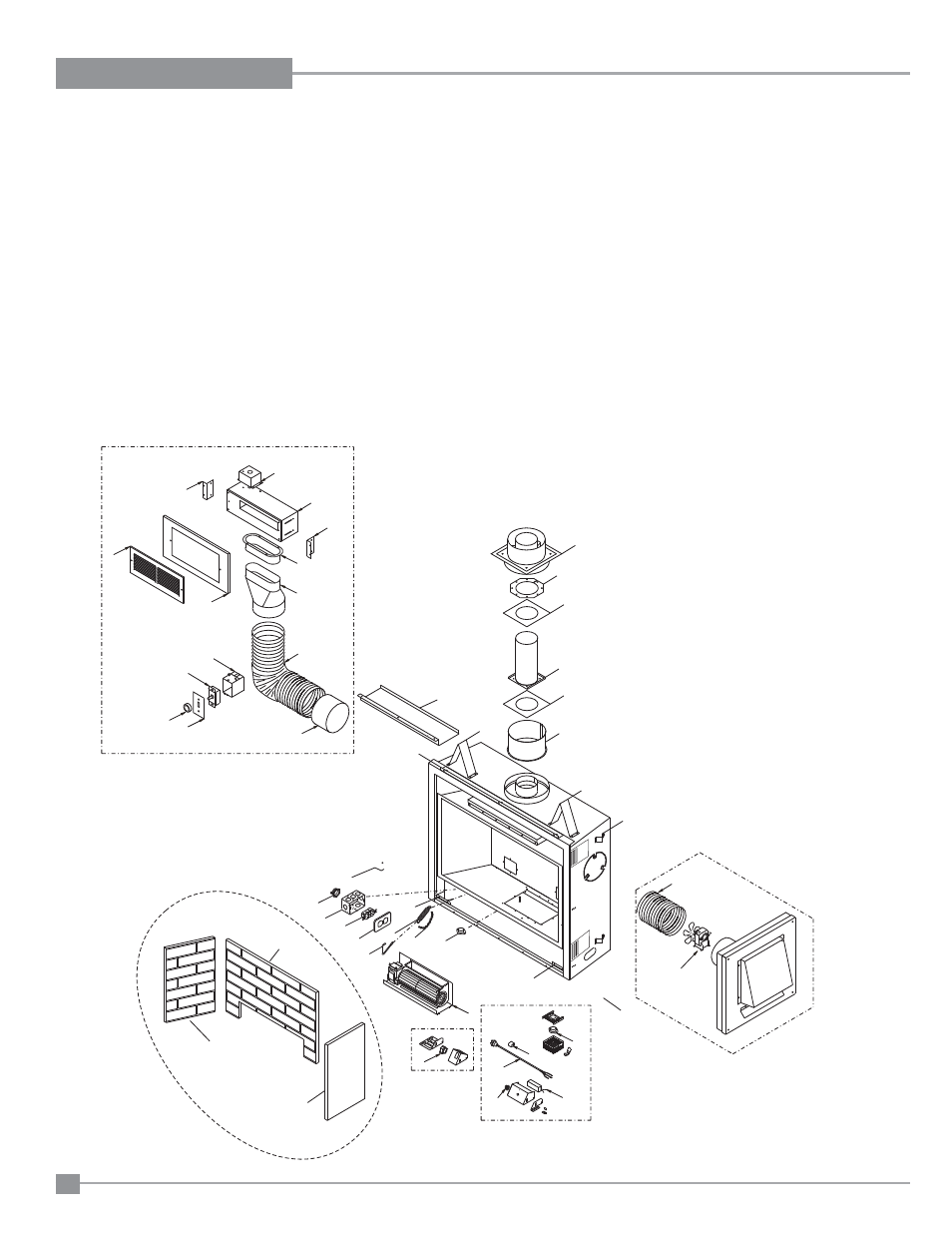

PARTS LIST
DOORS & LOUVERS PLEASE
34
33
35
BRICK PANEL SET
REFER SEPARATE SECTION
21
99
14
20
14
50
22
24
31
30
28
27
2
1
15
7
8
9
21
23
23
30
10
ON-OFF
SWITCH
ASSEMBLY
38
FAN SWITCH ASSEMBLY
47
43
48
49
42
HEAT RELEASE DUCT KIT
108
109
46
97
98
99
100
102
96
93
HEAT WAVE DUCT KIT
92
91
94
93
89
95
90
MAIN ASSEMBLY
Part # Description
Part # Description
Part # Description
1) 948-045 Chain
2) 948-025 Spring
7) 910-428 Duplex
Receptacle
8)
910-429
Box - Receptacle
9)
910-430
Cover - Receptacle
10) 904-687 Clamp
Connector
14) 510-026
Hinge Bracket - Left/Right
15) 948-253 Door
Handle
20) 510-033
Top Nailing Strip
22) 510-153 Baffl e Plate
23) 510-011F Standoff
-
Top
24) 511-044
Standoff - Side/Back
27) *
Outer Flue Collar
28) *
Inner Flue Collar Assy
30) *
Gasket for Flue Collar
31) *
Flue Mounting Plate
513-901
Brick Panel Set - Standard
Brown
513-902
Brick Panel Set
- Standard Red
513-903
Brick Panel Set
- Herringbone Brown
33) *
Brick Panel - Back
34) *
Brick Panel - Left
35) *
Brick Panel - Right
511-031
Brick Clips (each)
432-967
Burner On/Off Switch Assy
38) 910-241
Switch - Burner On/Off
910-899
Wire Harness-Valve to
Burner
432-917
F a n A s s e m b l y 1 2 0 V
(Optional)
42) 910-331/P Fan Motor (120 V)
432-966
Fan
Switch
Assembly
(120 Volts) (Optional)
43) 910-813
Power Cord (120 Volts)
46) 910-330
Fan Speed Control Switch
47) 904-586
Knob - Speed Control
49) 910-142
Thermodisc - Fan Auto On/
Off
904-713
U-clip at louver
50) 510-994 Rigid
Pipe
Adaptor
946-556
Heat Wave Duct Kit (Optional)
89) 946-004 Junction
Box
90) 946-000 Round
Duct
Adaptor
91) 946-002
Round to Oval Adaptor
92) 946-001 Oval
Duct
Adaptor
93) 946-007 Angle
Bracket
94) 946-517/P Fan Assembly - Heat Wave
95) 946-006
Grill Plate - White
96) 946-005 Wall
Adaptor
Plate - White
97) 910-417
Knob - White
98) 910-366
Switch Cover Plate - White
99) 910-412
Fan Speed Controller
100) 910-367
Box - Plastic Switch
Receptacle
102) 946-010
Flexible Air Duct
946-038
Insulation 6" Dia. x 24"
946-570
Heat Release Duct Kit
(Optional)
108) 910-165
Fan (120 V)
109) 946-000
Flexible Air Release Duct
918-521
Manual
514-969
Conversion Kit - NG to LP
