RGM180 QUICKSTART
BG0509 REV. A2 3
General
The RGM180 series provides a user-friendly interface to monitor and configure SATEC
devices.
The RGM180 series includes two models:
-
Local Graphic Display RGM180-G1: the RGM180 communicates with a single
host processor
expert meter ™ SATEC device, using an RS-485 interface. It is
powered directly from the device.
-
Network Graphic Display RGM180-G3: the RGM180 communicates with
multiple host processor
expert meter ™ SATEC devices (up to 32) , using a
10/100Base T Ethernet or RS-485 interface. It is powered by Power over
Ethernet (PoE) and/or an external AC/DC adaptor.
Installation

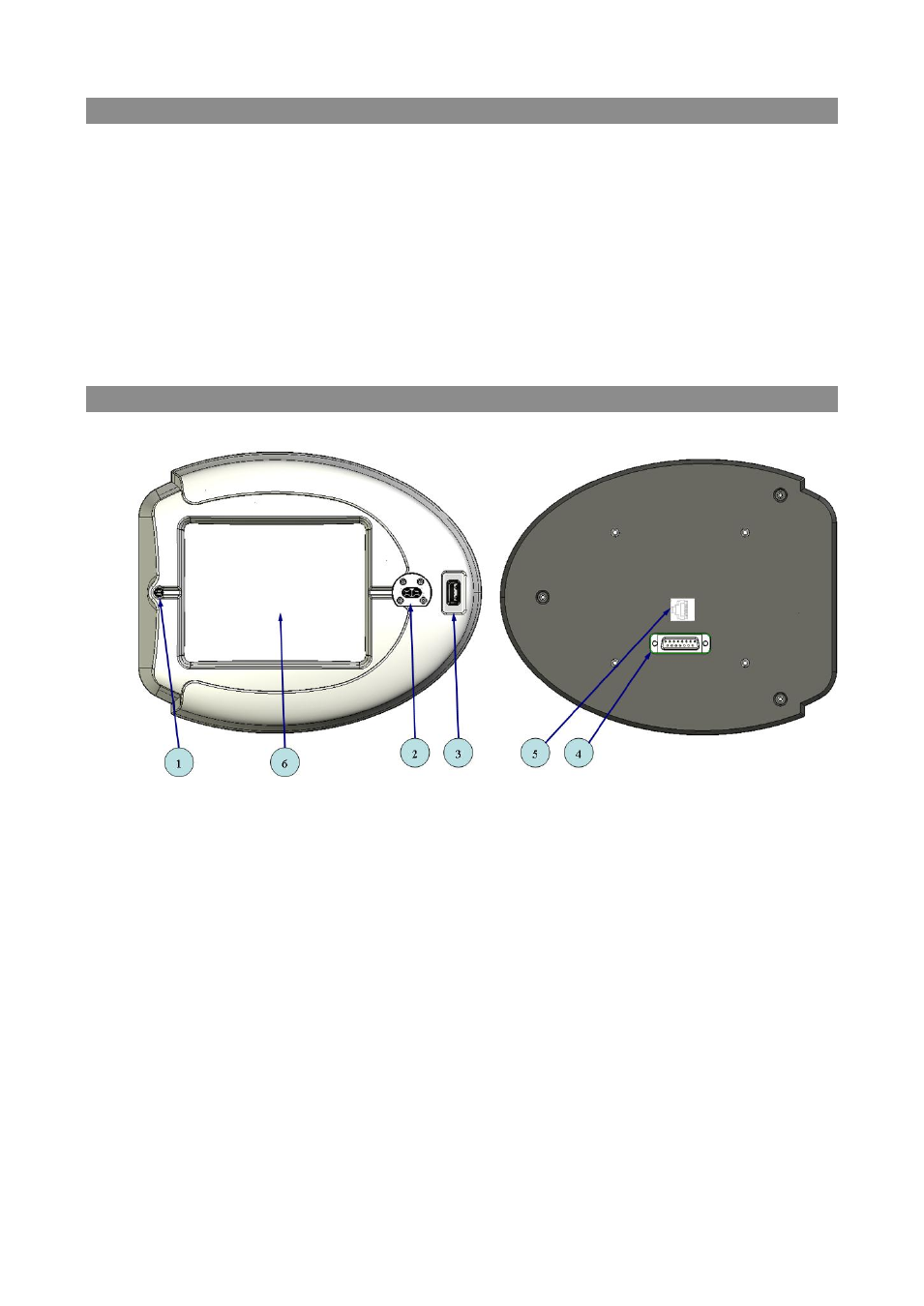

1. Interface Description
1. LED: Red (Wh)/Green (Ethernet Link).
2. IR Communication port (for PM180 only)
3. USB Communication port
4. RS485 Communication port and PM17x/PM180 display connector
5. Ethernet Communication port (RGM180-G3 only)
6. Display & Touchscreen.
Note: this document prepared for the following devices: RGM180-G1 & RGM180-G3.
