SATEC RGM180 User Manual
Page 19

BG0509
REV. A2 19

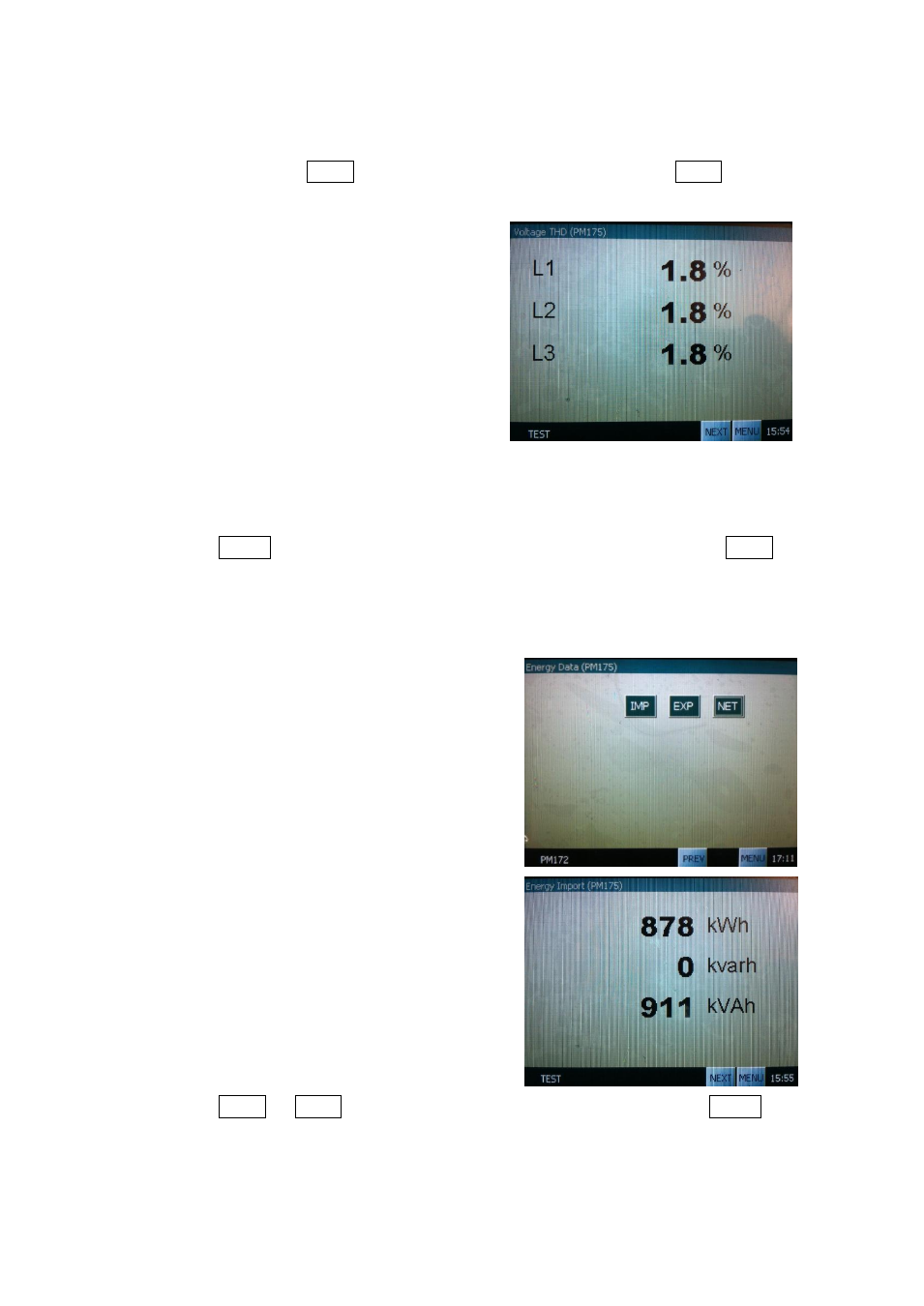

Total Harmonic Distortion
These screens work the same as the Real Time Measurement Data
screens – press NEXT to proceed to the next data item, or PREV to
return to the previous data screen.
Voltage THD – per phase
Total
Minimum
Maximum
Maximum Demands
Current THD – per phase
Total
Minimum
Maximum
Maximum Demands
Press MENU to return to the Harmonic Data group screen. Press NEXT
to proceed to the Energy Data Menu (see 4.3).
4.3 Energy Data
This screen presents the Energy data
group, consisting of the following data:
Energy import: kWh, kvarh, kVAh
Energy export: kWh, kvarh
Net energy
Press on the desired data item to view
that data.
Press NEXT or PREV to see next or preceding data item. Press MENU to
return to Energy Data Menu.
