BG0509 REV. A2 15
4. Data Display

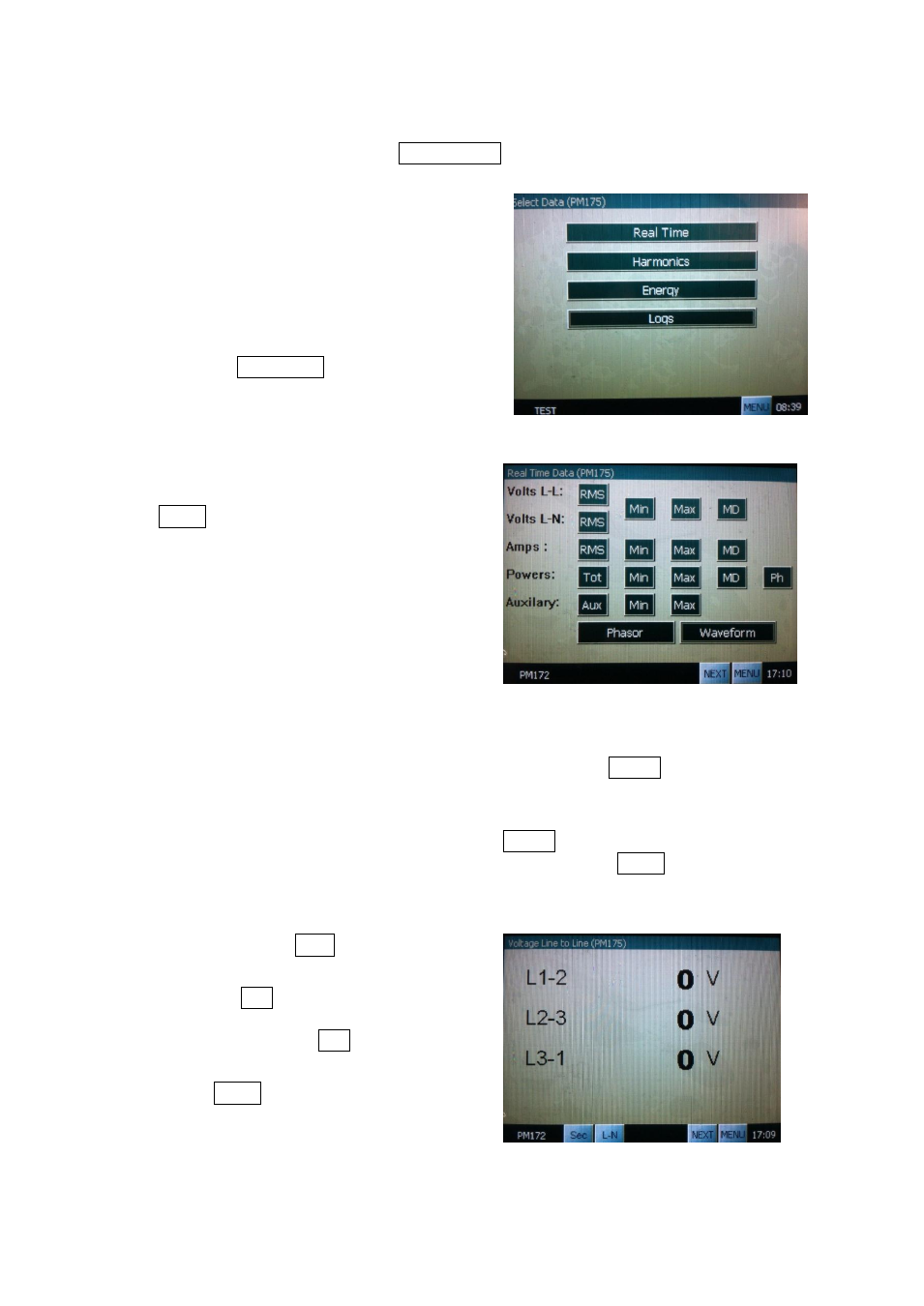

From the Main Menu, press RT Measure to display the Select Data
Menu.
The Select Data Menu allows you to
choose from the four data groups:
Real Time Measurements, Harmonics,
Energy, and the Logs (Event Log).
To display Real Time Measurements,
press on Real Time.
4.1 Real Time Measurements
Press on the desired data item to
display the data. Continue to press
NEXT to progress through the data in
this group:

Voltage: RMS, minimum,
maximum and maximum
demands

Current: RMS, minimum,
maximum and maximum
demands

Power: Total, minimum,
maximum, maximum demands,
power per phase

Auxiliary power: Total,
minimum, maximum

Phasor and waveform graphs
This screen can be reached at
any point from any of the real
time measurement screens by
pressing on MENU from those
screens.
Note: From this screen, press
MENU to display the Select Data
menu; press NEXT to bring up
the next data group: Harmonic
Data (see 4.2).
Press Volts L-L RMS to display the
screen at right.
Press on L-N at the bottom of the
screen to view Line to Neutral
voltage; press on Sec to display Line
to Line Secondary voltage.
Press NEXT to proceed to the next
data item.
