Chapter 2 Installation 15

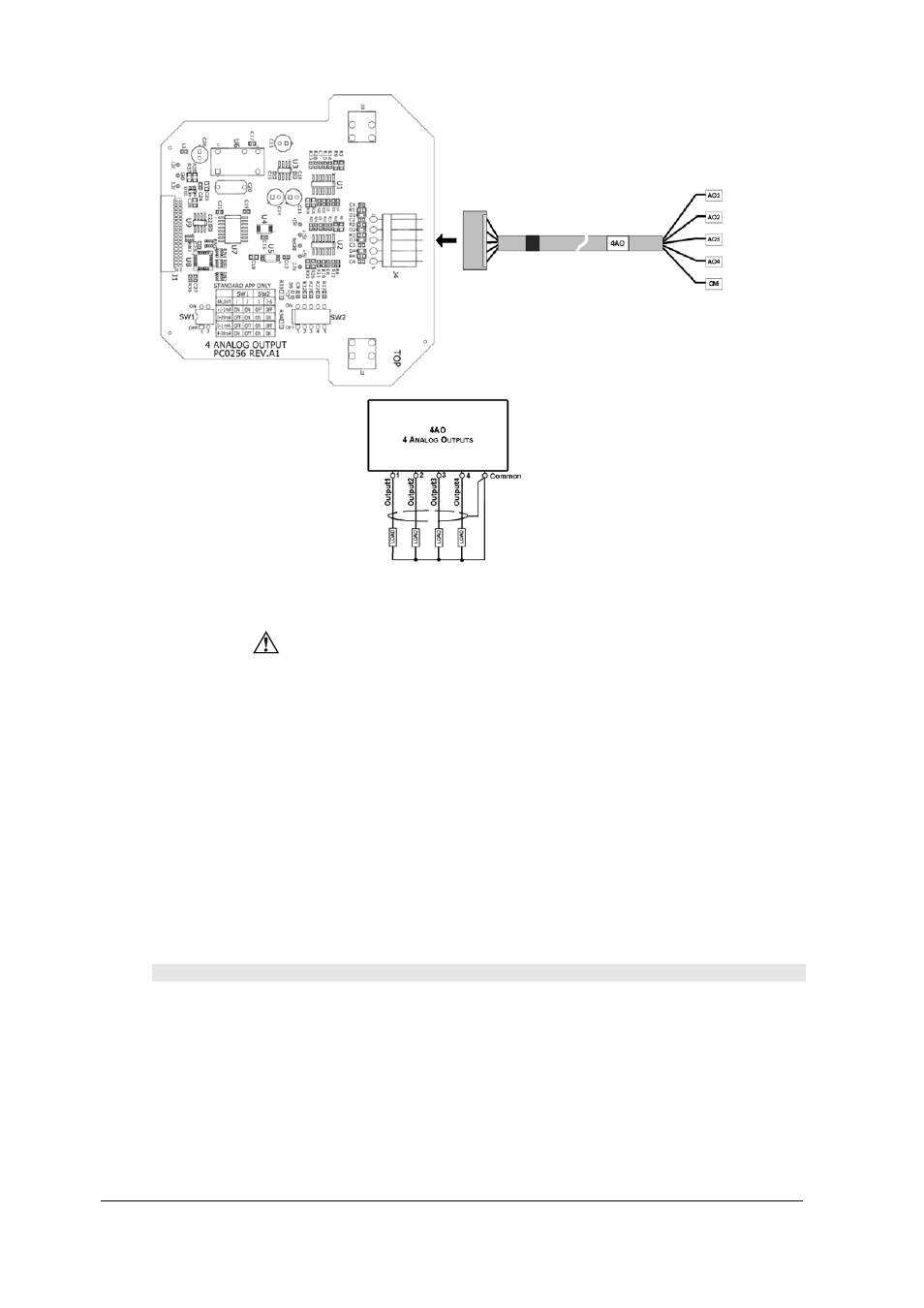

Figure 18: 4AO Connection
It is recommended to connect unused Analog output channels
to Common terminal.
⇒
The 4AO module TERMINAL is for use only with equipment which
has no live parts which are ACCESSIBLE
The RATING of the insulation of the external equipment for use with
the 4AO module, shall comply according to Installation Category III
for insulation to be suitable for SINGLE FAULT CONDITION
• The external equipment TERMINAL connection type is
normally terminal block for wire size 14 AWG (up to 1.5
mm2)
The type of equipment that might be connected to the TERMINAL
is:
Programmable Logic Controller for automation – PLC
Digital or Analog meter
Analog Inputs/Analog Outputs (4AI/4AO – optional module)
Future
