Chapter 2 Installation
13
2.2.5 Relay
Eight relays are provided for energy pulsing, alarms or remote control.

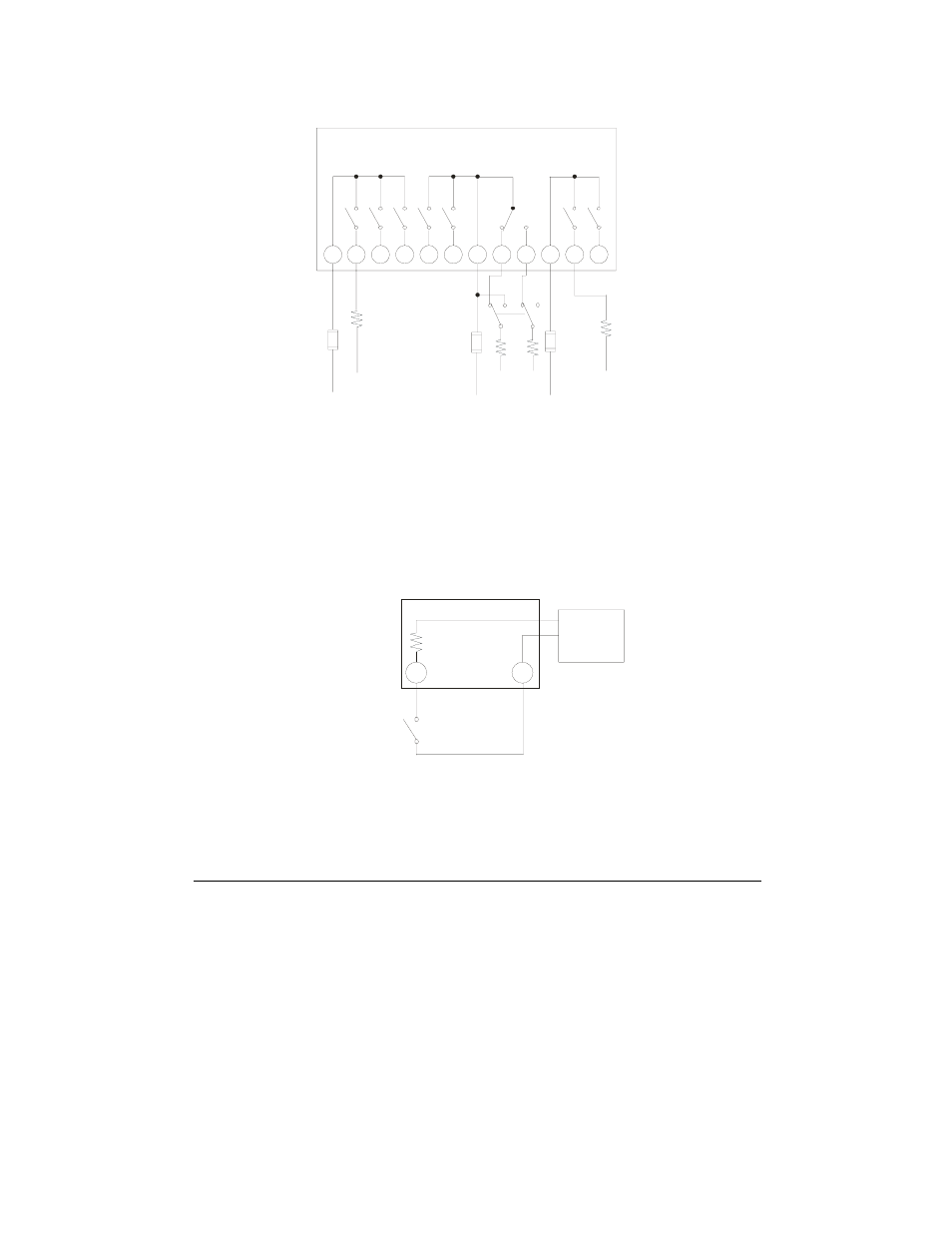

Figure 2-9 Relay Connection
2.2.6 Status Input
One status input is provided for status monitoring or external synchronization
input for power demand period.
Figure 2-10 Status Input Connection
c99- 0904 5
CONTROL RE LAY S
C191HM
LOAD
LOAD
LOAD
FUSE
FUSE
FUSE
RELAY
CONTROL
ENABLE/
DISABLE
10-15A
5A
15 A
N
N
N
N
120- 230V AC
12 0-23 0V AC
120-230V AC
1
2
3
4
5
6
7
8
20 21
22
23
24
25
26
27
28
29
30
31
INPUT
STATUS
C191HM
c99- 0904 4
SUPPLY
12V D C
INTERNAL
DRY
CONTACT
EXTE RNAL
33
32
