Chapter 2 Installation 7
Chapter 2 Installation
2.
2.1 Mechanical Installation
Prepare the panel cut-out, 136 x 136 mm, prior to mounting.
STEP 1: Place the instrument through the cut-out.
STEP 2: Assemble the latches onto the outer wall of the enclosure.
STEP 3: Tighten the screws.

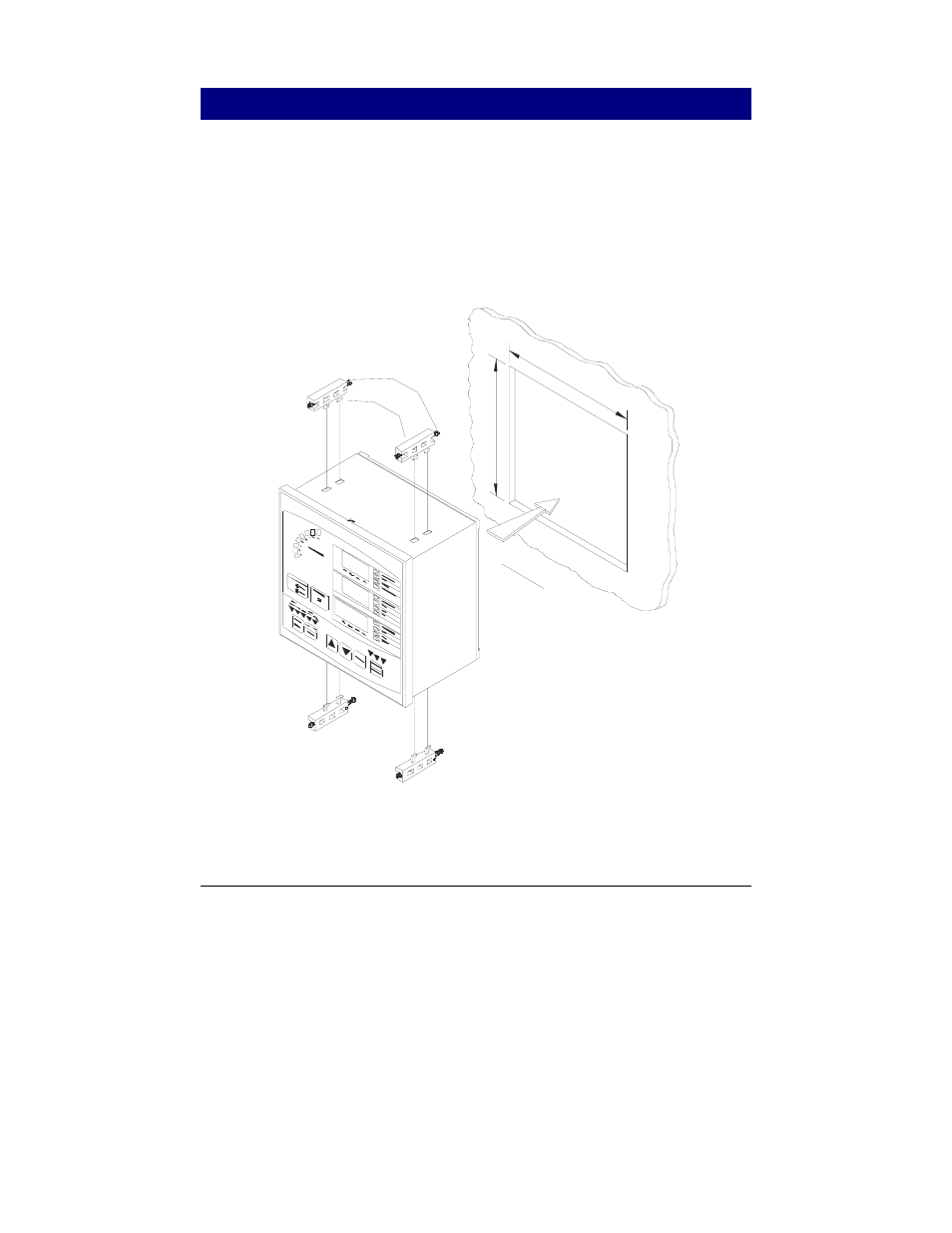

Figure 2-1 Mounting the C191HM
STE
P 3
STE
P 2
C191
HM
136.
0
13
6.
0
+1
.0
STE
P 1
c99-09046/2
+1.0
