10. Rotate latch to position shown below. Mount Lock Bars on Latch as shown below. Do not fasten Latch to Handle yet. Rotate Handle to open
(unlatched position or horizontal) position. Insert Lock Bars into plastic Guides while aligning square hole in Latch with square threaded shoulder on
Handle. Install lock nut on threaded shank of Handle. Check that Handle, Latch, and Lock Bars operate smoothly and effectively. See Figure 7.

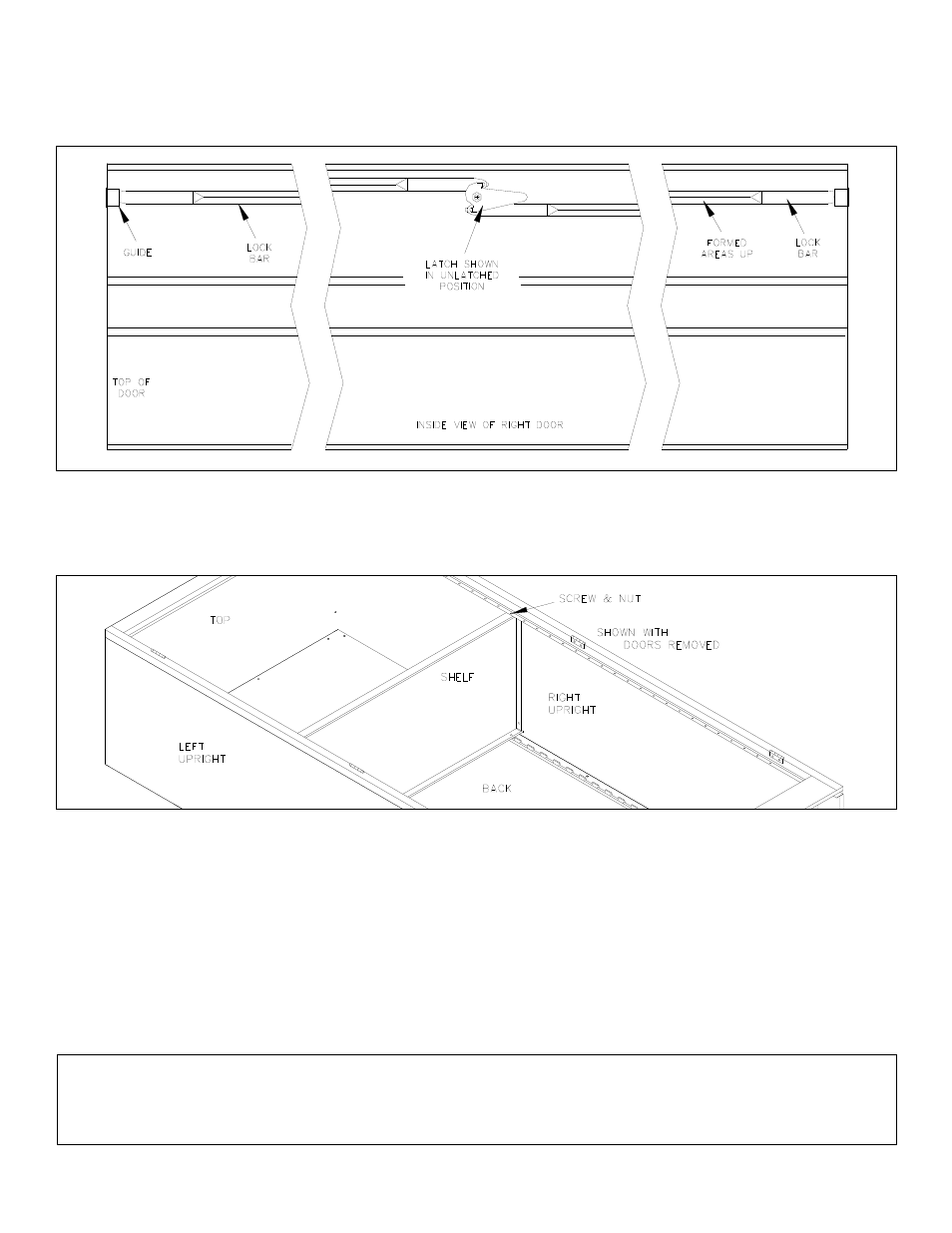

Figure 7
11. Open the Doors. The Shelves fit into notches in the Notched Strips on the back wall of the cabinet. Fasten the Shelves with two (2) screws and
nuts, one (1) in each of the two (2) front corners of each Shelf. Locate the Shelves as dictated for the cabinet’s ultimate use. The Shelves are
adjustable on 2” centers. See Figure 8.
Figure 8
This completes the assembly of your storage cabinet.
