Security Cage Storage Lockers – 8400 & 8500 Series
Installation Instructions
FOR BOTH #8400 & #8500:
NOTE:
Only 3 compartments are shown in the illustrations for clarity.
Install shelves to left/right sides with ¼”-20 x ¾” long screws,
large diameter washers, and ¼”-20 nuts.
Place the back against the rear of unit and bolt to the side frames with
the same hardware as above.
Place the door within the door frame in the proper position. Align the
hinges and secure with the same hardware as above.

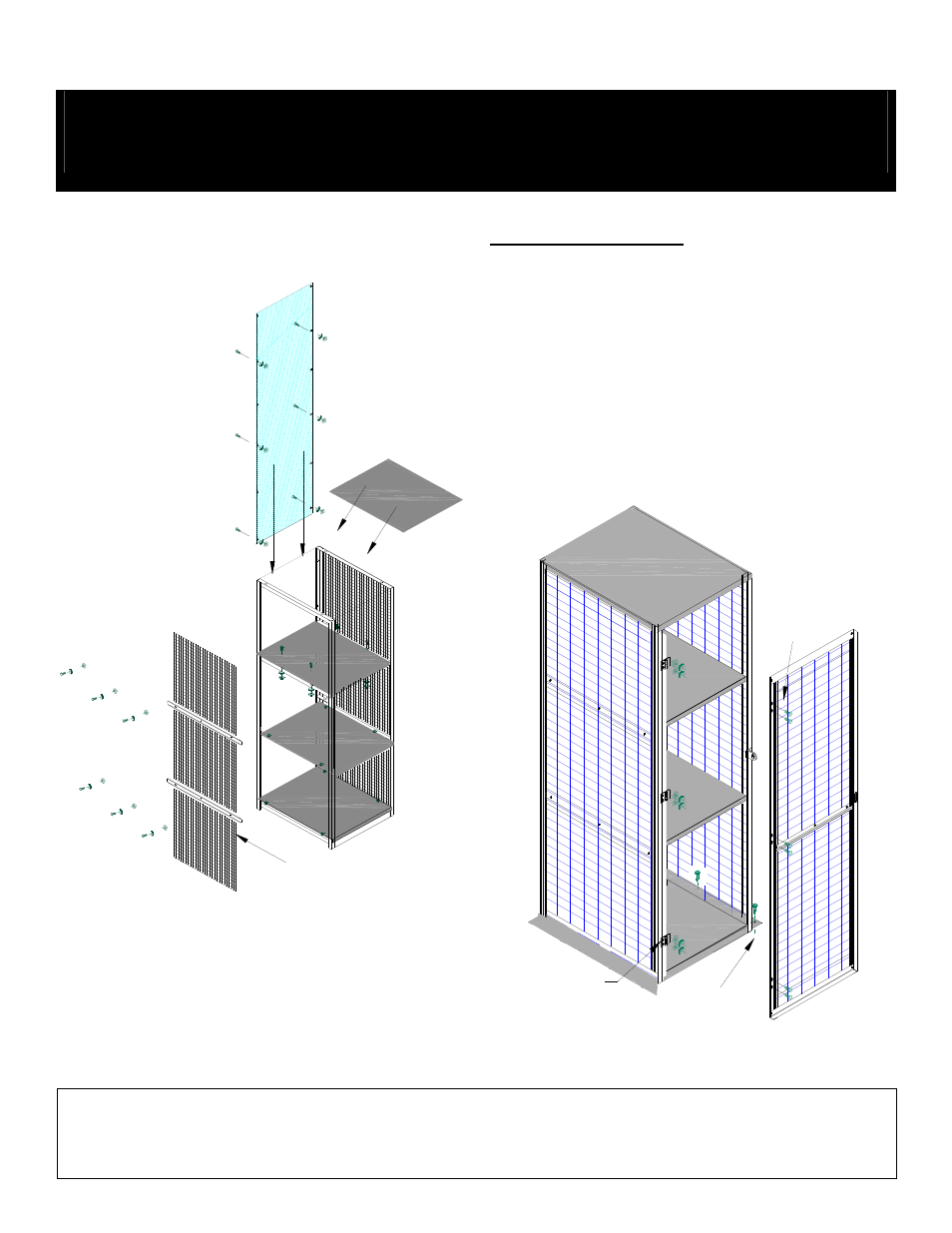

DOOR HINGES
3 PLACES FLOOR ANCHORS
HINGE BOLTS
AS REQUIRED
E
X
T
E
RNAL
SHEL
F
SUPPORT
S
SIDE MESH REMOVED FOR CLARITY.
TOP SHELF
BACK
RIGHT SIDE LEFT SIDE
