Sloping Hood & Angled Side Panel Options
For Extra Wide Designer Lockers - 20000 Series
Installation Instructions
Thank you for selecting the 22251 or 22253 sloping hood and/or the 22234 angled side panel for the 20000 Series Extra Wide Designer Lockers.
These instructions are intended to assist you in positioning and fastening the sloping hood and angled side panel to the locker.

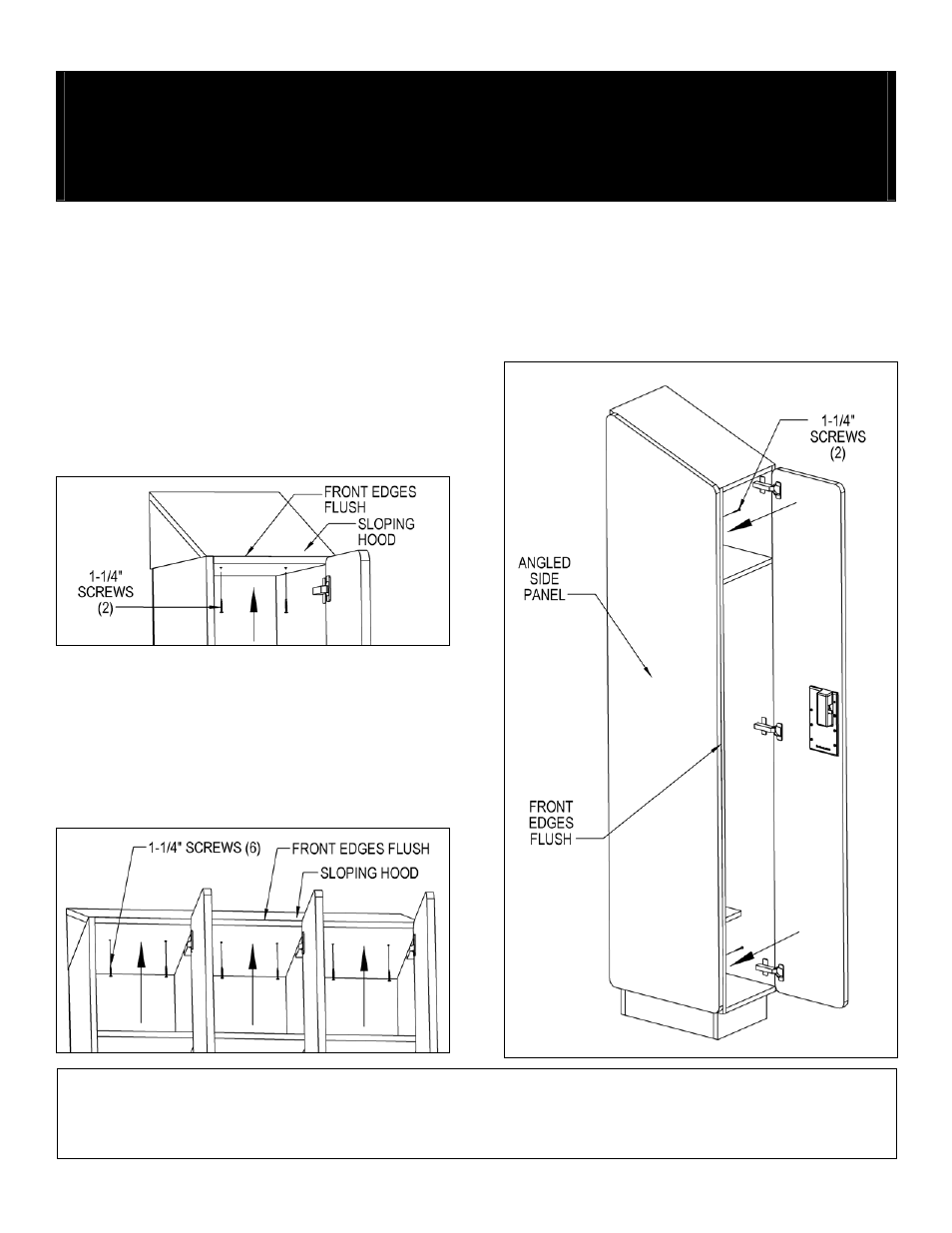

Sloping Hood Installation Instructions
1 - Wide Sloping Hood
Place the sloping hood on top of locker with the front edge flush with
the locker body, not the door, and the sides flush with sides of the
locker. Install two (2) 1-1/4” long self-tapping dry wall screws
(provided) through the ceiling of the locker compartment (from the
inside) into the bottom of the sloping hood. Pre-drill two (2) pilot
holes (6) inches from the front face of the locker with a 1/16” drill bit
as indicated.
3 - Wide Sloping Hood
Place the sloping hood on top of locker with the front edge flush with
the locker body, not the door, and the sides flush with sides of the
locker. Install six (6) 1-1/4” long self-tapping dry wall screws
(provided) through the ceiling of the locker compartment (from the
inside – two (2) per compartment) into the bottom of the sloping
hood. Pre-drill two (2) pilot holes per compartment six (6) inches
from the front face of the locker with a 1/16” drill bit as indicated.
Angled Side Panel Installation Instructions
Attach the side panel flush with the front of the locker body, not the
door. Install two (2) 1-1/4” long self-tapping dry wall screws
(provided) in pre-drilled holes from inside the locker.
